Axis FA54 Main Unit

Generelt
Enhedstype	Videoserver
Billed Opløsning	1920x1080, 480x270
Komprimerings Format	MJPEG, MPEG-4, G.711, G.726, H.264, AAC
Overensstemmelsesstandarder	EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Klasse A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 50581, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, UL 62368-1 Second Edition, IEC 60529 IP3X
Garanti	3 år

Video Server
RAM	1024 MB
Flash Hukommelse	512 MB
Funktioner	2 x microSDXC hukommelseskortåbninger, Forensic WDR, Zipstream

Netværk
Netværks Grænseflade	Ethernet 10Base-T/100Base-TX/1000Base-T
Understøttede Protokoller	DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS
Egenskaber	IP-adresse filtrering, HDTV Compatible, 802.1x autentificering, 1080 p opløsnings-support

Tilslutninger
Video Input Porte	RJ-12 x 4
Video Output Porte	HDMI x 1
Audio Input Porte	Mini-telefon 3,5 mm x 2
Audio Output Porte	Mini-telefon 3,5 mm x 1
Netværk Port	10/100/1000Base-T
Andre Porte	RJ-45

Kraft
Spænding	12 V
Strøm Forbrug	14 Watt

Mål og vægt
Bredde	20.2 cm
Dybde	10.2 cm
Højde	3.1 cm
Vægt	442 g

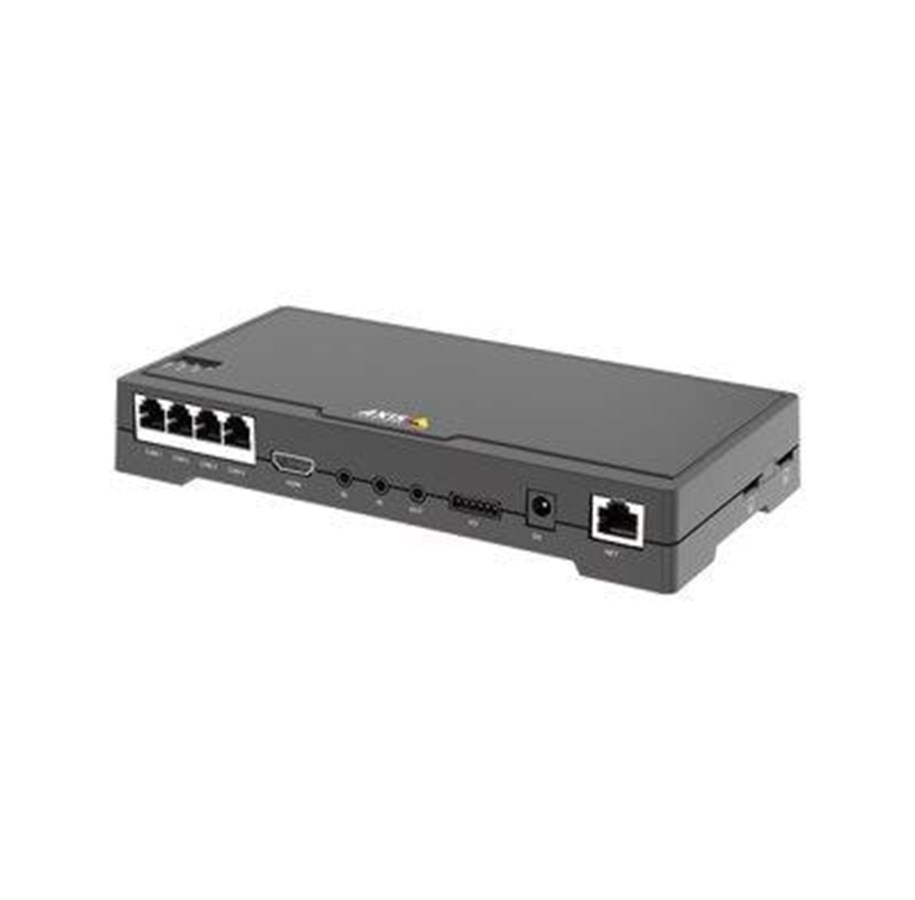

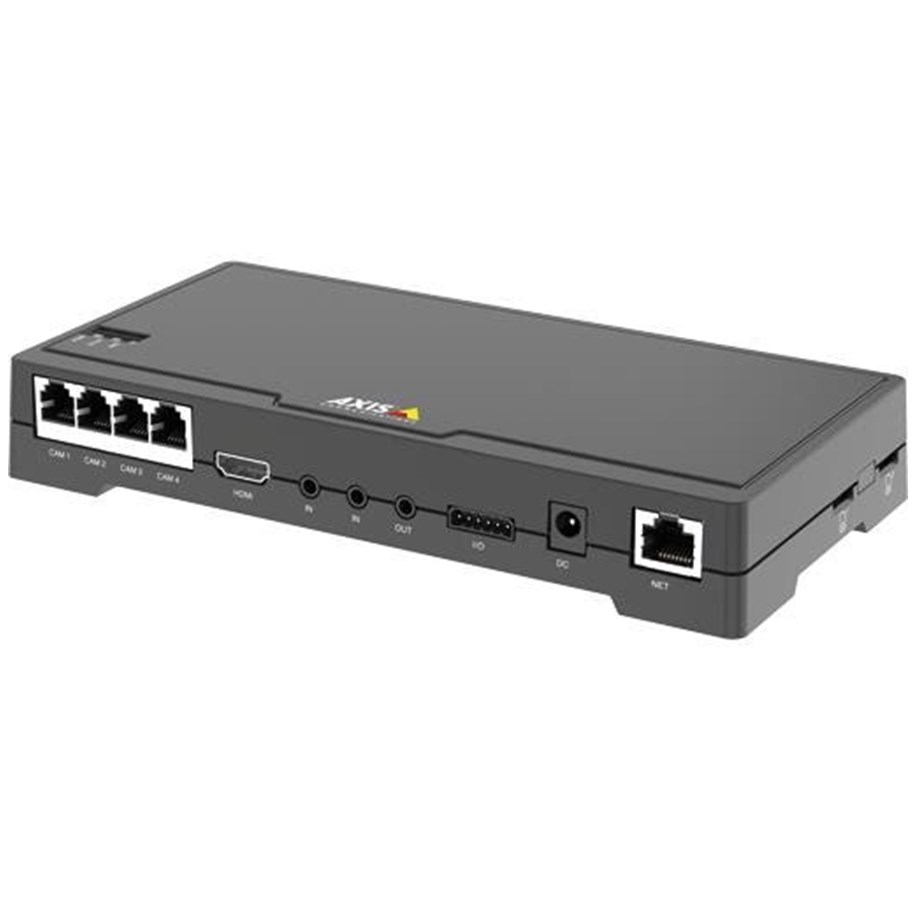

AXIS FA54 Main Unit can connect several highly discreet AXIS FA sensor units for the surveillance closely situated indoor areas. The main unit can serve as the basis for a complete video surveillance system - perfect for a small store, bank or office. Or it can be a complementary part of a bigger system where sensor units are required for highly discreet surveillance.
