Varenummer: 3409697

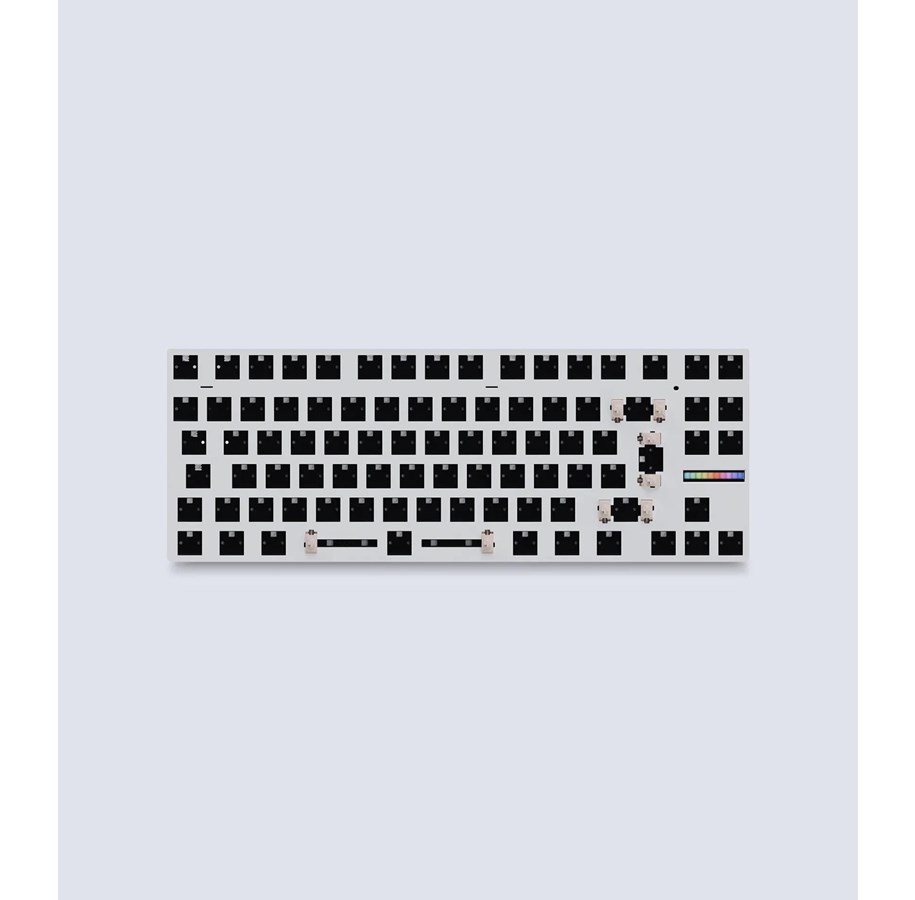

Wooting 80HE Module - ANSI - No switch - Gaming Tastatur - Uden Numpad - Universal

Gaming tastatur med RGB, størrelse: TKL-type, PC forbindelse: USB-A, aftageligt tastaturkabel: USB-C, polling rate: 8000 hz, mekanisk hot swappable switche, kompatibilitet: Windows, layout: engelsk (US) QWERTY, ANSI layout, Software: Wootility, farve: hvid.

• BEMÆRK VENLIGST! Dette 80HE-modul leveres uden et JST-kabel, vi anbefaler kraftigt, at du køber et originalt Wooting-kabinet, hvor JST-kablet er inkluderet. Hvis du køber et kompatibelt kabinet fra en tredjepart, er JST muligvis ikke inkluderet. Find et originalt Wooting 80HE-kabinet her

Gaming-tastaturmodul med ægte 8kHz USB-polling og per-tast analog input. Wooting 80HE Module er et 80% TKL-build leveret uden kontakter eller keycaps, så du kan tilpasse kontakter, keycaps og kabinet fuldt ud, mens de avancerede analoge funktioner bevares.

  • Ægte 8kHz polling og synkroniseret analog scanning, hvilket sænker tastaturets latenstid til 0,125 ms
  • Per-tast analog input med 0,1 mm nøjagtighed og justerbar aktivering fra 0,1-4,0 mm
  • Rapid Trigger og Rappy Snappy-funktioner for dynamisk aktivering og forbedrede input i spil
  • Gasket-monteret design med PC-plade til kontakter og skrue-i stabilisatorer for en roligere, thock-orienteret lyd
  • Module-format understøtter hot-swappede kontakter og kompatibilitet med Lekker og Gateron KS-20
  • Per-tast RGB plus en dynamisk LED-bar og onboard-lagring administreret via Wootility
  • Aftagelig USB-C-forbindelse med flettet USB-C til C-kabel

Perfekt til brugere der ønsker et analog-kompatibelt TKL-tastatur, de kan bygge og finjustere til deres foretrukne kontakter, lyd og spillestil.

Læs mere
1.349,00 kr. 1.079,20 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, leveringstiden kan ikke oplyses

Lagerstatus i vores Pick-up Points

  • Aarhus (0 stk.)

    Ikke på lager

  • København (0 stk.)

    Ikke på lager

Meet the 80HE

Everything you'd expect from Wooting in an 80% layout.

We’ve applied everything we’ve learned so far, making the 80HE our most complete keyboard yet. With several new elements improving the sound, adding new features that enhance your gaming performance and implementing true 8kHz polling to make it our fastest keyboard to date.

Wooting 80HE

Analog Input Unleashed

Full range switch motion.

The Wooting 80HE detects full switch motion with 0.1mm accuracy from start to end. Every single key outputs an analog signal that can be used for numerous features that enhances your typing and gaming experience.

There is no compromise to be made in what a regular ol’ keyboard might have to offer. Welcome to the future.

True 8kHz Polling Rate

0.125ms Latency.

The 80HE supports up to 8kHz USB polling while also scanning every analog key position at that same rate, providing you with a True 8kHz polling experience. This lowers your keyboard latency to only 0.125ms.

Adjustable Actuation

A pretty "sensitive" subject.

Eliminate the slowest element in input latency; the initial key press travel before key activation. You have full control over your actuation point from 0.1 to 4.0mm.

Configurable per key in 0.1mm steps, you can customize each key towards your playstyle.

Rapid Trigger

Unmatched performance.

Eliminate the second slowest element in input latency; return key press travel before key deactivation. Rapid Trigger dynamically changes the actuation and deactivation point. Your keys will activate when you intend to press them and deactivate when you intend to let go.

You can repeat a key press mid motion without needing to surpass a fixed reset or actuation point for rapid presses.

Rappy Snappy

We first brought you Rapid Trigger, now we bring you Rappy Snappy pat. pending.

Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest. When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release. When both are active at the same depth, it'll resort to your selected SOCD resolution. This enhances your (counter) strafing, bunny hopping, and block/parry/combo timing in various games.

Side view

Gasket Mount

Less noise, softer feel.

The PCBA and switch plate are held together by a silicone gasket. This absorbs impact, resulting in less noise and a softer feel when you type.

Gasket view

PC Plate

Softer sound, more flex.

The PC plastic switch plate softens the overall typing experience by muting more of the higher frequencies and placing an emphasis on "thock".

PC plate

Screw-in Stabilizers

Eliminate rattle.

The Wooting 80HE is equipped with screw-in stabilizers to eliminate rattle. They’re also replaceable with most third-party screw-in and clip-in stabilizers.

Screw-in stabilizers

Sounds good?

Experience the sound of the Wooting 80HE for yourself.

The stock Wooting 80HE sound profile is aimed at low volume with a ‘thock’, while providing a snappy typing feedback.

Wooting 80HE PCR with Lekker L60 V2 was used in this sound test.

Back view

A LED bar

With a little twist.

One bar, ten squares, a thousand ways to communicate with you. This is your 80HE talking in abstract about what you need to know.

Per-key RGB

Make it yours.

Per-key configurable RGB, various (analog) RGB effects, and super duper brightness. It’s all there to satisfy your RGB needs or turn them off.

Choose your flavour

Available in different colors and materials.

PCR Black PCR Ghost PCR Frost Zinc alloy Black Zinc alloy White Zinc alloy RAW

Wooting Lekker Switch V2

Less wobble, superior sound.

A contactless magnet switch powered by Hall effect sensors. No metal leaf, pins, optics or other sensitive hardware that suffers from wear, tear, and particles. This survives the test of time and lasts millions of presses.

Lekker L45

30cN key start force • 45cN key end force

Lekker L60

40cN key start force • 60cN key end force

Specs: 100,000,000 clicks lifespan • 0.1–4.0 mm actuation & reset range • Linear • Silent • MX (cross) stem

Ergonomics

Made to reduce strain and fatigue.

We design our keyboards to have the lowest possible front height with the lowest possible angle to help reduce strain and slow down muscle fatigue. Depending on your hand size, you can change the angle to your preference using the interchangeable silicone feet.

2.8° Angle2.8° angle
6° Angle6° angle
10° Angle10° angle

80HE Module

Get the Wooting 80HE Module without switches or keycaps.

Customize your 80HE with your favorite switches, keycaps, and case color with the Module version.

Wooting 80HE Module

Our Keycaps

Quality at your fingertips.

Double Shot PBT
Double Shot PBT: OEM profile, seamless backlit legends that never fade.
Dye Sub PBT
Dye Sub PBT: Cherry profile, legends imbued via dye-sublimation.
ABS
ABS: UV coated OEM profile, laser-etched backlit legends.

Wootility

Fast. Accessible. Intuitive.

Wootility

  • Simple: Easy to use and master.
  • All stored onboard: Features work from the keyboard; settings saved on the 80HE.
  • Wootility web: Windows, macOS, Linux or browser — visit wootility.io.

Remap & Advanced Keys

Remap any key across layers and profiles to fit your workflow. Set advanced keys such as mod tap, DKS, and toggle keys for peak productivity.

Remapping

Sustainability

Step by step to a sustainable future.

Sustainability

The top and bottom case of the 80HE are made of 65% Post Consumer Recycled (PCR) ABS plastics. Alternatively the zinc alloy metal case is an infinitely recyclable material. Packaging is FSC certified cardboard and all “plastic” bags are compostable.

Let's recap

The Wooting 80HE in a nutshell.

  • Rapid Trigger: Keys activate/deactivate when you intend.
  • Adjustable Actuation: 0.1–4.0 mm per key.
  • Rappy Snappy: Consistent strafe & dynamic SOCD resolution.
  • True 8kHz Polling: Synchronized scanning & USB polling at 8kHz (0.125ms).
  • Gasket Mounted: Less noise, more bounce.
  • PC Plate: Softer feel, vibrant sound.
  • Screw-in Stabilizers: Pre-installed to eliminate rattle.
  • Dynamic LED Bar: 1 bar, 10 squares, many indicators.

Them specs and data

Technical Specifications
  • Switches: Lekker L60 V2
  • Keycaps: PBT, ABS and Dye sub options
  • Case: PCR ABS or Zinc alloy
  • Stabilizers: Screw-in
  • Switch plate: White polycarbonate (PC)
  • Sandwich pad: Silicone
  • PCBA: Wooting 80HE
  • Cable: 2 m USB-C to C nylon braided
  • Dimensions: 346 × 142 mm; 19.4 mm front (no keycap); 28.4 mm with OEM keycap
  • Weight: PCR ABS 790 g; Zinc alloy 2160 g
Compatibility
  • Switches: Lekker, Gateron KS-20
  • Stabilizers: Screw-in
  • Case: Top & bottom (gasket mount)
