Varenummer: 3238103

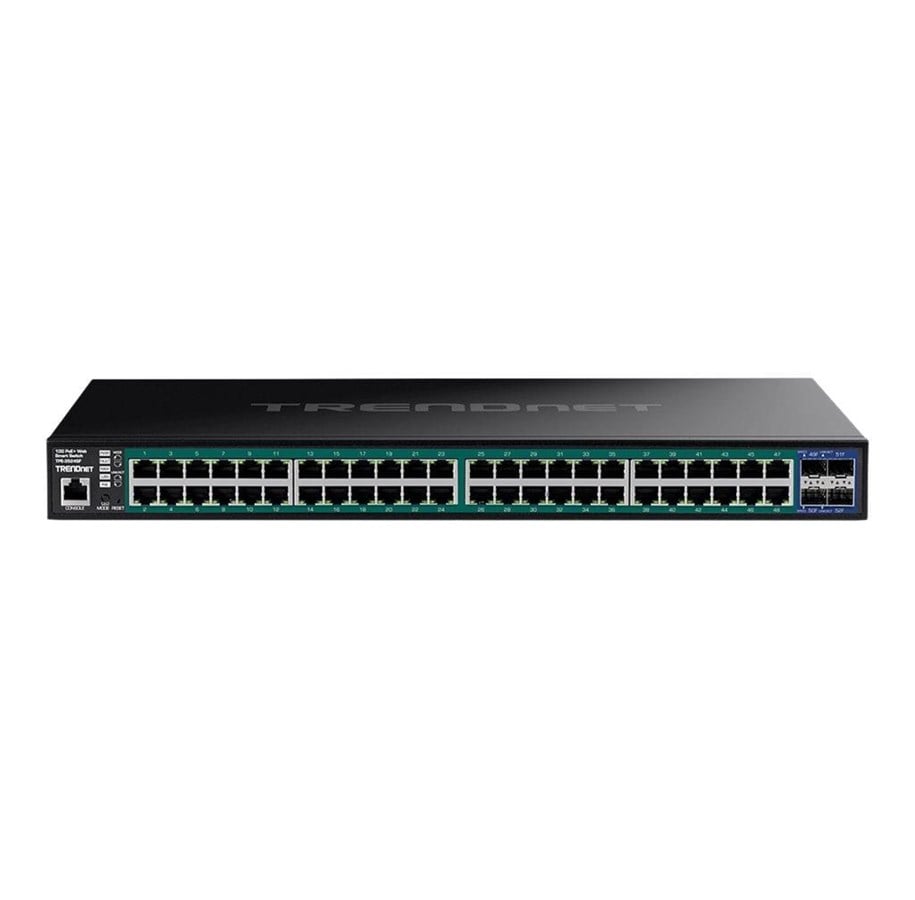

TRENDnet TPE-3524SF - switch - 52-port web - 52 ports - smart - rack-mountable - TAA Compliant

Switch, 52-port, web, L2+, smart, 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, desktop, monterbar på stativ, PoE+ (740 W), TAA-kompatibel

8.172,00 kr. 6.537,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, leveringstiden kan ikke oplyses

Lagerstatus i vores Pick-up Points

  • Aarhus (0 stk.)

    Ikke på lager
  • København (0 stk.)

    Ikke på lager

TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524SF, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This managed PoE+ switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to the managed switch by using the L2+ Managed IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also features 10G SFP+ ports to support long-distance fiber networking applications.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Producent
Varenummer
3238103
Model
TPE-3524SF
Ean
0710931162523
Til producentens hjemmeside
Switch-type
Administreret
Basis omskiftning RJ-45 Ethernet porte, antal
48
Basis omskiftning RJ-45 Ethernet porttype
Gigabit Ethernet (10/100/1000)
Antal SFP + modulslots
4
Port til konsol
RJ-45
Netværksstandarder
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G understøttelse
Ja
Fuld duplex
Ja
Halv dupleks
Ja
Link aggregering
Ja
Spanning tree protokol
Ja
Head-of-line (HOL) blokering
Ja
VLAN understøttelse
Ja
Vituelle LAN funktioner
Private VLAN, Tagged VLAN, Voice VLAN
Antal VLAN'er
4094
MAC adresselabel
32000 entries
Switch kapacitet
176 Gbit/sek.
Hastighed for videresendelse
130,95 Mpps
Jumbo Frames support
Ja
Jumbo rammer
9000
DHCP funktioner
DHCP snooping
IGMP snooping
Ja
Multicast-understøttelse
Ja
Administrationsprotokoller
SNMP v1, v2c, v3
Antal blæsere
3 blæser(e)
Støjniveau
42,7 dB
Gennemsnitstid mellem fejl (MTBF)
70599 t
Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Strømforbrug (maks.)
52 W
Strømbeskyttelsesfunktioner
Overstrøm, Kortslutning
Strøm over Ethernet (PoE)
Ja
Power over Ethernet (PoE) effekt pr. port
30 W
Total Power over Ethernet (PoE)
740 W
Driftstemperatur (T-T)
0 - 50 °C
Bredde
440 mm
Dybde
310 mm
Højde
44 mm
Vægt
4,72 kg
Certificering
CE FCC UL

Administrationsfunktioner

Switch-type
Administreret

Porte & Grænseflader

Basis omskiftning RJ-45 Ethernet porte, antal
48
Basis omskiftning RJ-45 Ethernet porttype
Gigabit Ethernet (10/100/1000)
Antal SFP + modulslots
4
Port til konsol
RJ-45

Netværk

Netværksstandarder
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G understøttelse
Ja
Fuld duplex
Ja
Halv dupleks
Ja
Link aggregering
Ja
Spanning tree protokol
Ja
Head-of-line (HOL) blokering
Ja
VLAN understøttelse
Ja
Vituelle LAN funktioner
Private VLAN, Tagged VLAN, Voice VLAN
Antal VLAN'er
4094

Dataoverførsel

MAC adresselabel
32000 entries
Switch kapacitet
176 Gbit/sek.
Hastighed for videresendelse
130,95 Mpps
Jumbo Frames support
Ja
Jumbo rammer
9000

Sikkerhed

DHCP funktioner
DHCP snooping
IGMP snooping
Ja

Multicast funktioner

Multicast-understøttelse
Ja

Protokoller

Administrationsprotokoller
SNMP v1, v2c, v3

Design

Antal blæsere
3 blæser(e)

Præstation

Støjniveau
42,7 dB
Gennemsnitstid mellem fejl (MTBF)
70599 t

Strømstyring

Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Strømforbrug (maks.)
52 W
Strømbeskyttelsesfunktioner
Overstrøm, Kortslutning

Power over Ethernet (PoE)

Strøm over Ethernet (PoE)
Ja
Power over Ethernet (PoE) effekt pr. port
30 W
Total Power over Ethernet (PoE)
740 W

Driftsbetingelser

Driftstemperatur (T-T)
0 - 50 °C

Vægt & størrelser

Bredde
440 mm
Dybde
310 mm
Højde
44 mm
Vægt
4,72 kg

Godkendelser

Certificering
CE FCC UL
