Varenummer: 3448507

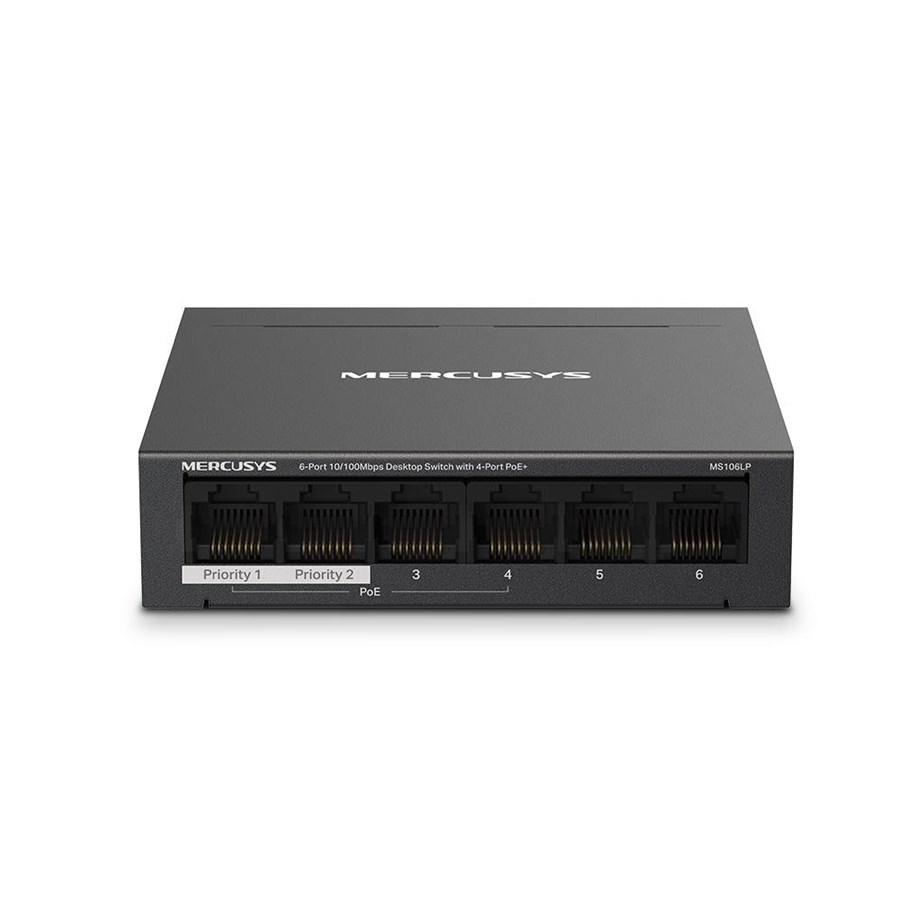

MERCUSYS MS106LP
Mercusys MS106LP netværksswitch Administreret Fast Ethernet (10/100) Strøm over Ethernet (PoE) Sort
149,00 kr.
119,20 kr. ekskl. moms
Billigste fragt (privatkunde) 39,00 kr.
Bestillingsvare, 17-18 dages levering
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager
6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
4 PoE+ Ports (40 W Budget) for Network Deployment
Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106LP provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS106LP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
4 PoE+ Ports (40 W Budget) for Network Deployment
Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106LP provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS106LP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Producent
Varenummer
3448507
Model
MS106LP
Ean
6957939001148
Til producentens hjemmeside
Switch-type
Administreret
Webbaseret administration
Ja
Cloud-administreret
Ja
Trafik klassificering
Ja
Basis omskiftning RJ-45 Ethernet porte, antal
6
Basis omskiftning RJ-45 Ethernet porttype
Fast Ethernet (10/100)
Netværksstandarder
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G understøttelse
Ingen
Port-spejlning
Ja
Flowkontrol support
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN-datahastigheder
10,100 Mbit/s
Auto-forhandling
Ja
MAC adresselabel
2000 entries
Stativ-montering
Ingen
Stabelbar
Ingen
Produktfarve
Sort
Kan monteres på væggen
Ja
Strømkilde
Vekselstrøm/jævnstrøm
Strømforsyning inkluderet
Ja
Vekselstrømsindgangsspænding
220 V
Vekselstrømsindgangsfrekvens
50 Hz
Strømforbrug (typisk)
1,87 W
Strømforbrug (maks.)
44,8 W
Strøm over Ethernet (PoE)
Ja
Power over Ethernet (PoE) porte, antal
4
Power over Ethernet plus (PoE+) porte, antal
2
Power over Ethernet (PoE) effekt pr. port
40 W
Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)
10 - 90%
Relativ luftfugtighed ved opbevaring (H-H)
5 - 95%
Varmeafgivelse
152,32 BUT/t
Bredde
99,8 mm
Dybde
98 mm
Højde
25 mm
Kabler inkluderet
Vekselstrøm
Hurtig start guide
Ja
Administrationsfunktioner
Switch-type
Administreret
Webbaseret administration
Ja
Cloud-administreret
Ja
Trafik klassificering
Ja
Porte & Grænseflader
Basis omskiftning RJ-45 Ethernet porte, antal
6
Basis omskiftning RJ-45 Ethernet porttype
Fast Ethernet (10/100)
Netværk
Netværksstandarder
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G understøttelse
Ingen
Port-spejlning
Ja
Flowkontrol support
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN-datahastigheder
10,100 Mbit/s
Auto-forhandling
Ja
Dataoverførsel
MAC adresselabel
2000 entries
Design
Stativ-montering
Ingen
Stabelbar
Ingen
Produktfarve
Sort
Kan monteres på væggen
Ja
Strømstyring
Strømkilde
Vekselstrøm/jævnstrøm
Strømforsyning inkluderet
Ja
Vekselstrømsindgangsspænding
220 V
Vekselstrømsindgangsfrekvens
50 Hz
Strømforbrug (typisk)
1,87 W
Strømforbrug (maks.)
44,8 W
Power over Ethernet (PoE)
Strøm over Ethernet (PoE)
Ja
Power over Ethernet (PoE) porte, antal
4
Power over Ethernet plus (PoE+) porte, antal
2
Power over Ethernet (PoE) effekt pr. port
40 W
Driftsbetingelser
Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)
10 - 90%
Relativ luftfugtighed ved opbevaring (H-H)
5 - 95%
Varmeafgivelse
152,32 BUT/t
Vægt & størrelser
Bredde
99,8 mm
Dybde
98 mm
Højde
25 mm
Emballage indhold
Kabler inkluderet
Vekselstrøm
Hurtig start guide
Ja
