DGS-105/E - D-Link DGS-105 5-Port Gigabit Unmanaged Desktop Switch
Varenummer: 2342907

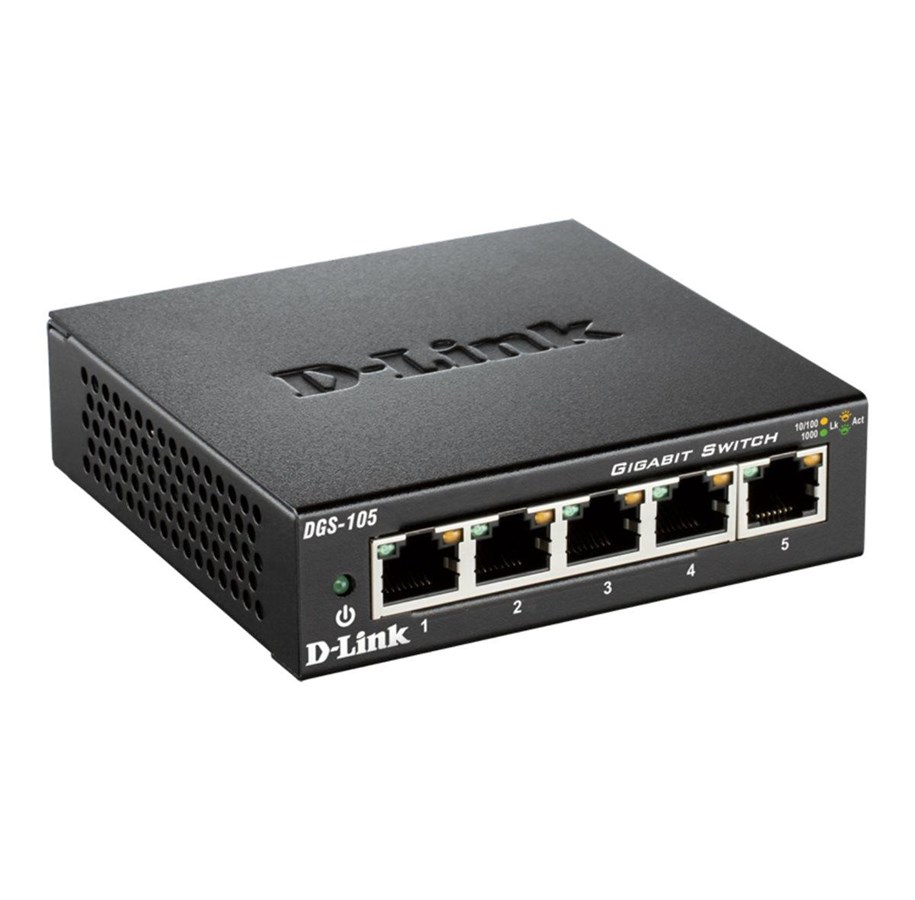

D-Link DGS-105 5-Port Gigabit Unmanaged Desktop Switch

Switch, 5 x 10/100/1000, desktop

177,00 kr.
141,60 kr. ekskl. moms
På lager – Levering i morgen (bestil inden 22:00)
Billigste privatfragt 39,00 kr.

Pick-up Points lagerstatus

  • Aarhus (+15 stk.)

    På lager, kan afhentes
  • København (0 stk.)

    Kan bestilles til afhentning - afvent derefter klarmelding via email

Detaljer

Producent: D-Link
Varenummer: 2342907
Model: DGS-105/E
Ean: 790069368226

Til producentens hjemmeside

www.dlink.com/dk/da/business-s...
ProduktbeskrivelseD-Link DGS 105 - switch - 5 porte
EnhedstypeSwitch - 5 porte
UndertypeGigabit Ethernet
Porte5 x 10/100/1000
PræstationOmkoblingskapacitet: 10 Gbps
MAC adresse table størrelse8K indtastningshukommelse
Jumborammesupport9000 byte
EgenskaberDatatransport, auto-sensing per device, auto-negotiation, pakkefiltrering, gem og send
OverensstemmelsesstandarderIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Dimensioner (B x D x H)10 cm x 9.8 cm x 2.8 cm
Vægt286 g

Generelt

Enhedstype Switch - 5 porte
Pakningstype Desktop
Undertype Gigabit Ethernet
Porte 5 x 10/100/1000
Præstation Omkoblingskapacitet: 10 Gbps
MAC adresse table størrelse 8K indtastningshukommelse
Jumborammesupport 9000 byte
Egenskaber Datatransport, auto-sensing per device, auto-negotiation, pakkefiltrering, gem og send
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
RAM 128 KB
Statusindikatorer Strøm, link/aktivitet

Ekspansion / Konnektivitet

Interface 5 x 1000Base-T RJ-45

Effekt

Strømenhed Ekstern strømforsyning

Diverse

MTBF (forventet tid mellem fejl) 1,688,338 timer
Overensstemmelsesstandarder FCC Klasse B-certificeret, VCCI Class B ITE, cUL, CB, ICES-003 Class B, C-Tick Class B

Mål og vægt

Bredde 10 cm
Dybde 9.8 cm
Højde 2.8 cm
Vægt 286 g
D-Link's DGS-105 and DGS-108 Gigabit Ethernet switches provide a cost-effective way for small and medium sized businesses to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. These switches come with 5 or 8 Gigabit Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Their fanless design and solid metal housing makes them completely silent so they are ideal for offices, libraries or meeting rooms, and for industrial and hazardous environments like factories and warehouses.

The DGS-105 and DGS-108 are designed with durability and performance in mind. Their sturdy metal housing will protect them against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, these switches come with a wall mounting kit and a slot for a Kensington security lock to protect them from theft.

Despite being unmanaged, Plug and Play switches, the DGS-105 and DGS-108 are able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the ambar LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.

The DGS-105 and DGS-108 are part of D-Link Green, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. These switches implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet technology in the DGS-105/108 can detect the length of the network cables connected to their ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
