Varenummer: 2566278

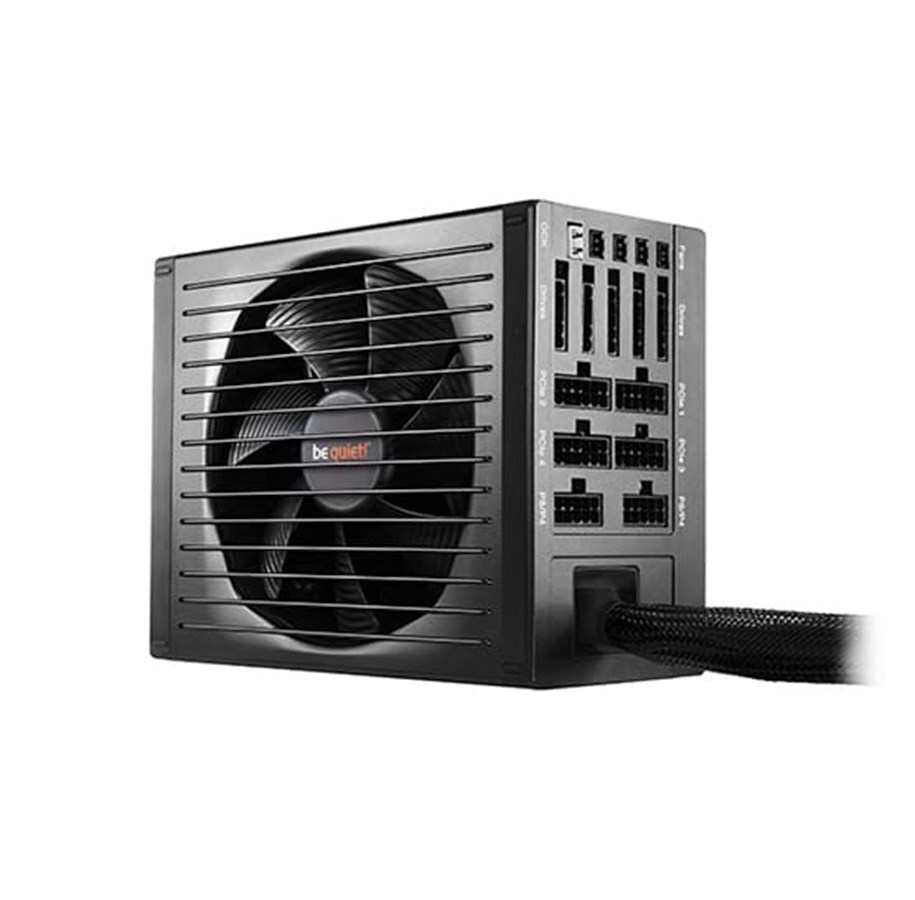

be quiet! Dark Power Pro 11 850W Strømforsyning - 850 Watt - 135 mm - 80 Plus Platinum certified

Strømforsyning ( intern ), ATX12V 2.4 / EPS 12V 2.92, 80 Plus Platinum, 135 mm blæser, aktiv PFC, kabler: 1 x 6 pins & 6 x 8 (6+2) pins til grafikkort / 8 x 5 pins SATA / 7 x 4 pins Molex / 2 x Floppy / 1 x 20+4 pins ATX, 1 x 4+4 pins & 1 x 8 pins CPU, semi modulær & sort sleeved kabler, low noise - 10.4 db ved 50 % load, 850 watt

Varen er udgået
Se lignende produkter

Legendary Silence, Cutting Edge Performance

It is a fact of the modern world that high technology requires constant refinement and unending improvement — and that is even truer for those who would be leaders. Dark Power Pro power supplies are renowned as the world’s quietest and most efficient high-performance PSUs. The Dark Power Pro 11 850W model takes that a step further with a power conversion topology that delivers 80PLUS® Platinum performance, add to that an unparalleled array of enhancements that augment this unit’s compatibility, convenience of use, reliability, and safety, and the result is the most technologically-advanced power supply be quiet! has ever built.

  • 80PLUS® Platinum certification and up to 94% power conversion efficiency
  • Virtually inaudible operation thanks to a broad array of optimizations, including the use of a be quiet! SilentWings® 3 135mm fan
  • SilentWings® 3 fan features an advanced fan frame, an airflow-optimized fan blade, fluid-dynamic bearing with copper core and a high-quality 6-pole motor for less vibration
  • The funnel-shaped fan opening of the PSU case is significant big and allows high airflow intake
  • 850 Watts of continuous power provide intensive power reserves for demanding computing applications
  • Overclocking key allows switchover between quadruple independent 12V-rail mode and high-performance single-rail operation
  • NVIDIA SLI Ready and AMD CrossFireX certifications allow you to build powerful Multi-GPU systems with confidence
  • Cable management with extra long cable reach simplifies component installation and reduces annoying clutter, increasing airflow and improving cooling in even the largest PC cases
  • Product conception, design and quality control in Germany
certsilent wingscable managementslicrossfirex

Applications

  • Advanced, high-resolution gaming and multimedia systems
  • Overclocked systems
  • Multi-GPU workstations for 3D graphics, photo editing, video editing
  • Any application that requires high power with superior quietness

Feature Details

Energy Efficiency

  • 80PLUS® Platinum certification with up to 94% efficiency
  • Saving power means saving money, but it also mean less waste heat, less cooling required, and overall quieter operation
  • Standby drain less than 0.10Watts
  • Meets Energy Star 6.0 guidelines
  • Fulfills the ErP 2014 guidelines
  • Zero Load design supports Intel’s Deep Power Down C6 and C7 modes

Virtually Inaudible Operation

  • Installed SilentWings® 3 135mm fan includes a wide array of electronic and mechanical optimizations for best-of-class airflow with very low noise production, including:
    • Unique airflow-optimized fan blade design reduces noise-generating fan turbulence
    • Advanced fluid dynamic bearing with copper core provides for greatly reduced operating noise and super-long life
    • 6-pole fan motor smoothes operation even at very low speeds
    • High quality IC motor controller reduces electrical noise
  • PSU case has a large funnel-shaped fan opening that facilitates high airflow intake
  • SilentWings® 3 fan is decoupled from the PSU body with special rubberized ring mount, reducing transmission of vibration and noise
  • Dual-layer PSU housing with rubberized sleeve isolates your chassis from PSU noise and vibration, further enhancing silence
  • Optimized PSU airflow generates superior cooling at lower fan speeds, reducing turbulence and allowing even quieter operation
  • Variable fan speed is optimally governed to strike the best balance between proper cooling and deep quietness
  • Up to four case fans can be connected to, and regulated by the PSU, thus reducing overall system noise even further

Engineering

  • Advanced full bridge, LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuitry design supports unmatched signal stability and unbeatable power efficiency
  • Overclocking key allows you to choose between multi-rail operation with four independent 12V-rails and high-performance single-rail operation
  • Premiere-quality Japanese capacitors rated to 105°C for maximum reliability and operating life
  • Increased output of 12V capacitors to minimize feedback sounds of graphics cards
  • Top protection for components against over-currents, over- and under-voltages, short circuits, overheating, overloads and voltage surges on input side
  • Long service life up to 100,000 hours; Full performance during 24/7 operation

Maximum Compatibility and Convenience

  • Supports the latest Intel® and AMD™ processors
  • Compatible with ATX12V 2.4 and EPS12V 2.92 standards
  • Professional modular cable management system with removable cable bundles simplifies component installation, reduces annoying clutter, increases airflow and allows for improved cooling
  • Cable management with 2x P8 connector for better voltage stability for the CPU
  • System supports up to 33 connectors for massive system builds
  • Connectors are compatible with older components as well as those still on the drawing board
  • Sleeved cable lengths up to 120cm are perfect for large PC cases and allow for improved cooling in any size case
  • Individual P4 and P8 plugs support all common mainboard types
  • Nine PCIe connectors for powerful multi-GPU configurations (NVIDIA SLI and AMD CrossFireX) up to Quad-GPU
  • Clearly labeled plugs and clever accessories promote simple installation

Strømkabel (intern)

Producent
Varenummer
2566278
Model
BN253
Ean
4260052183786
Til producentens hjemmeside
Produktbeskrivelse
be quiet! Dark Power PRO 11 850W - strømforsyning - 850 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V 2.92
80 PLUS certificering
80 PLUS Platinum
Vægt
2.38 kg
Indgangspænding
AC 100-240 V
Strømkapacitet
850 watt
Output Current
+3.3V - 25 A
+5V - 25 A
+12V1 - 30 A
+12V2 - 30 A
+12V3 - 35 A
+12V4 - 35 A
-12V - 0.5 A
+5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
1 x strøm 8 pin EPS12 V
1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
7 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
1 x 6 pin PCI Express-strøm
2 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration
Ja
Kølesystem
135 mm ventilator
Udstyr inkluderet
Kabelbånd, tommelskruer
Farve
Sort
Dimensioner (B x D x H)
15 cm x 19.3 cm x 8.6 cm
Miljømæssige standarder
ENERGY STAR

Generelt

Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V 2.92
PSU formfaktor
ATX
Farve
Sort

Strømenhed

Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
1 x strøm 8 pin EPS12 V
1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
7 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
1 x 6 pin PCI Express-strøm
2 x 4-PIN mini-strømforsyningsforbinder
Strømkapacitet
850 watt
Output Current
+3.3V - 25 A
+5V - 25 A
+12V1 - 30 A
+12V2 - 30 A
+12V3 - 35 A
+12V4 - 35 A
-12V - 0.5 A
+5VSB - 3 A
Effektivitet
94,38 % ved 50 % ladning, 92,4 % ved 100 % ladning, 92,4 % ved 20 % ladning
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum

Diverse

Udstyr inkluderet
Kabelbånd, tommelskruer
Medfølgende ledninger
Strømkabel - ekstern - 1.5 m
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
135 mm ventilator
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, SLI klar, beskyttelse mod underspænding, kortslutnings beskyttelse, 4 x 12V skinne, temperatur kontrolleret blæser, CrossFireX klar, Intel 4.-gen CPU (Haswell) kompatibel, køleblæser til flydende dynamisk leje, semi-modulær
Overensstemmelsesstandarder
TUV, CB, FCC, RoHS, WEEE, cTUVus, ERP, RCM, CU-TR

Bæredygtighedsoplysninger

ENERGY STAR
Ja

Miljømæssige parametre

Maks. driftstemperatur
40 °C

Mål og vægt

Bredde
15 cm
Dybde
19.3 cm
Højde
8.6 cm
Vægt
2.38 kg

Mål & vægt (forsendelse)

Bredde ved forsendelse
34.8 cm
Dybde ved forsendelse
27.2 cm
Højde ved forsendelse
11.8 cm
Vægt ved forsendelse
4.59 kg
