Varenummer: 2248314

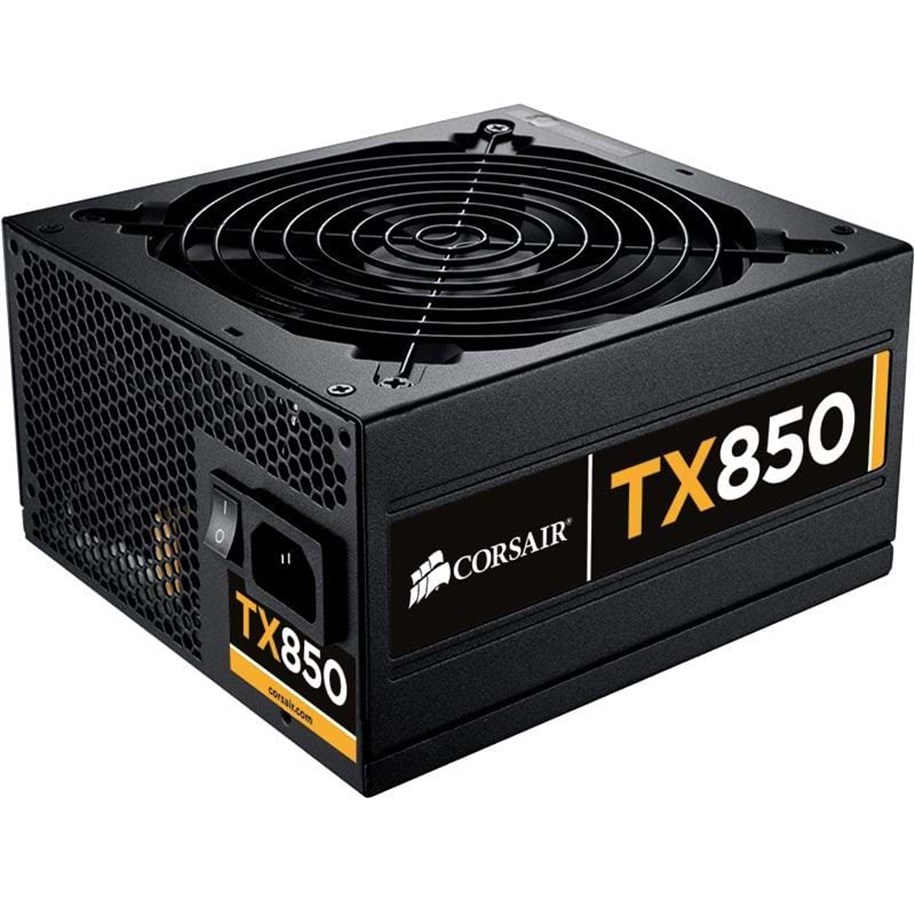

Corsair TX850 V2 - 850W PSU Strømforsyning - 850 Watt - 140 mm - ATX - 80 Plus Bronze certified
Strømforsyning ( intern ), ATX12V 2.31 / EPS 2.92, 80 Plus Bronze, 140 mm blæser, aktiv PFC, sleeved kabler, 850 watt - Corsair TX Series
Understøtter Intel Haswell C6/C7 standard
Varen er udgået
Designed to deliver the clean, stable power your system deserves
- When you build or upgrade your own system, you want a power supply that meets both your power requirements and your exacting standards for performance and noise. The entire Enthusiast Series TX V2 family has been designed to do just that. With any TX V2 PSU, you'll find the right balance between price and the features you want: high efficiency, tight voltage regulation, low ripple and noise, and thermally-controlled fan speed.
- Unlike many "value-oriented" power supplies, the entire range of TX V2 power supplies are designed to continuously deliver their rated power, all the way to 50°C ambient temperature. And with the tight voltage regulation and low ripple and noise that Corsair's Enthusiast Series in known for, you'll get clean power too. No more random crashes caused by dirty or insufficient power!
- All TX V2 power supplies deliver up to 85% efficiency, feature a single +12V rail for simple installation, and are compatible with the latest Intel and AMD platforms, as well as NVIDIA and AMD multi-GPU configurations. They are even ErP ready, so your system can use as little as 1W of power in standby mode (when used with an ErP-compliant motherboard).
Corsair Enthusiast Series TX850 V2 Features:
- Conforms to the latest ATX12V v2.31 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards
- A dedicated single +12V rail offers simple configuration and maximum compatibility with the latest graphics cards and other components
- An ultra-quiet, 140mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature
- Complies with the European Union ErP Directive (2009/125/EC) so the power consumption of the whole system, in either standby or off mode, can be less than 1W when used with a properly configured, ErP-compliant motherboard
- 80 PLUS® Bronze certified, delivering up to 85% energy efficiency under real-world load conditions
- Active Power Factor Correction (PFC) with PF value of 0.99
- Universal AC input from 90~264V
- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
- High-quality Japanese capacitors provide uncompromised performance and reliability
- A five year warranty and lifetime access to Corsair's legendary technical support and customer service
- Safety Approvals: cTUVus, CE, CB, FCC Class B, TÜV, CCC, C-tick
- When you build or upgrade your own system, you want a power supply that meets both your power requirements and your exacting standards for performance and noise. The entire Enthusiast Series TX V2 family has been designed to do just that. With any TX V2 PSU, you'll find the right balance between price and the features you want: high efficiency, tight voltage regulation, low ripple and noise, and thermally-controlled fan speed.
- Unlike many "value-oriented" power supplies, the entire range of TX V2 power supplies are designed to continuously deliver their rated power, all the way to 50°C ambient temperature. And with the tight voltage regulation and low ripple and noise that Corsair's Enthusiast Series in known for, you'll get clean power too. No more random crashes caused by dirty or insufficient power!
- All TX V2 power supplies deliver up to 85% efficiency, feature a single +12V rail for simple installation, and are compatible with the latest Intel and AMD platforms, as well as NVIDIA and AMD multi-GPU configurations. They are even ErP ready, so your system can use as little as 1W of power in standby mode (when used with an ErP-compliant motherboard).
Corsair Enthusiast Series TX850 V2 Features:
- Conforms to the latest ATX12V v2.31 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards
- A dedicated single +12V rail offers simple configuration and maximum compatibility with the latest graphics cards and other components
- An ultra-quiet, 140mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature
- Complies with the European Union ErP Directive (2009/125/EC) so the power consumption of the whole system, in either standby or off mode, can be less than 1W when used with a properly configured, ErP-compliant motherboard
- 80 PLUS® Bronze certified, delivering up to 85% energy efficiency under real-world load conditions
- Active Power Factor Correction (PFC) with PF value of 0.99
- Universal AC input from 90~264V
- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
- High-quality Japanese capacitors provide uncompromised performance and reliability
- A five year warranty and lifetime access to Corsair's legendary technical support and customer service
- Safety Approvals: cTUVus, CE, CB, FCC Class B, TÜV, CCC, C-tick
Strømkabel (intern)
-
DUTZO Sleeved strøm forlængerkabel kit (v2) - Sort
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Hvid
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Rød
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr.
-
DUTZO Sleeved strøm forlængerkabel kit (v2) - Sort / Rød
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Sort / Hvid
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Sort / Orange
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Sort / Grå
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Grøn
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Blå
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr. -
DUTZO Sleeved strøm forlængerkabel kit (v2) - Orange
På lager – Levering i morgen (bestil inden kl. 22)219,00 kr.
Producent
Varenummer
2248314
Model
CMPSU-850TXV2EU
Ean
0843591006897
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
CORSAIR Enthusiast Series TX850 V2 - strømforsyning - 850 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31/ EPS12V 2.92
80 PLUS certificering
80 PLUS Bronze
Vægt
2.5 kg
Lokalisering
Europa
Indgangspænding
AC 90-264 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 Watt
Output-stikforbindelser
1 x strøm 24 pin ATX
1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
4 x 6 pin PCI Express-strøm
8 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
4 x 6 pin PCI Express-strøm
8 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
Kølesystem
140 mm ventilator
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Producentgaranti
5 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31/ EPS12V 2.92
PSU formfaktor
ATX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 90-264 V
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX
1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
4 x 6 pin PCI Express-strøm
8 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
4 x 6 pin PCI Express-strøm
8 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 Watt
Output Current
+3.3V - 30 A
+5V - 30 A
+12V - 70 A
-12V - 0.8 A
+5VSB - 3 A
+5V - 30 A
+12V - 70 A
-12V - 0.8 A
+5VSB - 3 A
80 PLUS certificering
80 PLUS Bronze
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
140 mm ventilator
Egenskaber
Beskyttelse mod overstrøm, overspændingsbeskyttelse, SLI klar, beskyttelse mod underspænding, kortslutnings beskyttelse, enkelt 12V skinne, køleblæser med dobbelt kugleleje, ikke-modulær
Overensstemmelsesstandarder
FCC Klasse B-certificeret, UL, TUV, C-Tick, cUL, CB, CCC
Mål og vægt
Bredde
15 cm
Dybde
16 cm
Højde
8.6 cm
Vægt
2.5 kg
