Varenummer: 3170361

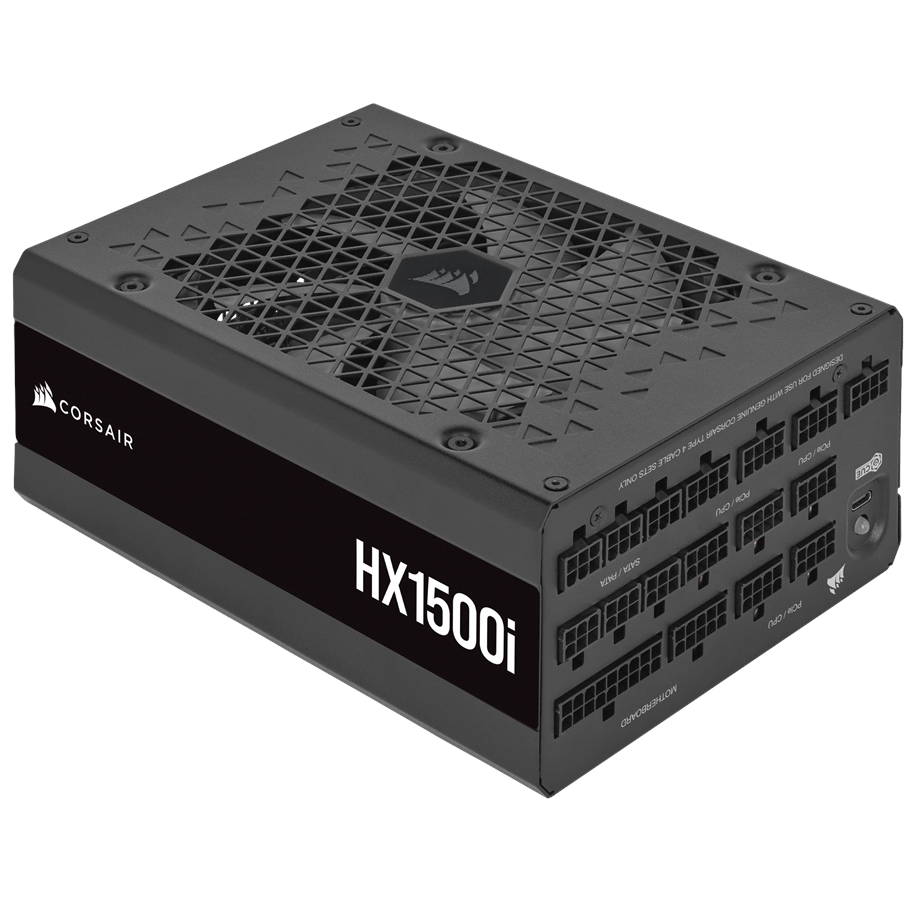

Corsair HX1500i (2023) Strømforsyning - 1500 Watt - 140 mm - ATX 3.0 - 80 Plus Platinum certified

Strømforsyning ( intern ), ATX standard: ATX12V 3.1 / EPS12V 2.92, 80 plus Platinum, Cybenetics: Platinum effektivitet / A+ støjniveau, 140mm blæser med zero RPM mode teknologi og fluid dynamic leje, aktiv PFC, kabler: 7 x 8 (6+2) pins til grafikkort / 1 x 12V-2x6 pins til grafikkort (PCI Express 5.1 ready) / 8 x 5 pins SATA / 8 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, 1 x USB-C for at aktivere softwarestyring, fuld modulær og tynde/sleeved kabler, kabler, software Corsair iCUE, farve: sort, 1500 watt

Varen er udgået
Se lignende produkter

POWERFUL CONNECTIONS
With three EPS12V connectors and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.

ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.0 compliance.

PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

QUIET OPERATION
HXi Series PSUs combine a 140mm fluid dynamic bearing fan with Zero RPM mode support for long-lasting fan performance and near-silent operation when the fan switches off at low and medium loads – only spinning as fast as it needs to.

UNWAVERING POWER AND QUALITY
80 PLUS Platinum certified with premium 100% Japanese 105°C electrolytic capacitors, HXi PSUs ensure up to 92% efficiency for exceptional power delivery and long-term reliability with low power consumption, less noise, and cooler temperatures.

POWER AT THE READY
As a fully digital power supply, each HXi Series PSU provides clean, consistent power while minimizing coil whine and noise for stable and quiet operation.

Supporting Modern Standby sleep mode, the HXi Series takes low-load efficiency to the next level with quiet operation and extremely fast wake-from-sleep times.

80 PLUS PLATINUM CERTIFIED
Steady power output at up to 92% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.

iCUE SOFTWARE
YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE Software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.

WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

Strømkabel (intern)

Producent
Varenummer
3170361
Model
CP-9020261-EU
Ean
0840006697442
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
CORSAIR HXi Series HX1500i - strømforsyning - ultralav støj - 1500 watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V
80 PLUS certificering
80 PLUS Platinum
Vægt
4.6 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1500 watt
Output Current
+3.3V - 25 A
+5V - 25 A
+12V - 125 A
+5VSB - 3.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
3 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
9 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
8 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
1 x 10 pin USB-C
Modulær Kabel Administration
Ja
Kølesystem
140 mm ventilator
Udstyr inkluderet
Kabelbånd, skruer

Generelt

Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V
PSU formfaktor
ATX
Lokalisering
Europa

Strømenhed

Indgangspænding
AC 100-240 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
3 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
9 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
8 x 4-PIN intern strøm
8 x 15 pin Serial ATA strøm
1 x 10 pin USB-C
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1500 watt
Output Current
+3.3V - 25 A
+5V - 25 A
+12V - 125 A
+5VSB - 3.5 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum

Ekspansion / Konnektivitet

Interface
1 x USB-C

Diverse

Udstyr inkluderet
Kabelbånd, skruer
Medfølgende ledninger
Strømkabelpakke
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
140 mm ventilator
Egenskaber
Overvågning af blæserhastighed, køleblæser til flydende dynamisk leje, magnetisk levitation bærende køleblæser, fuld modulær, Zero RPM-blæsermodus, Cybenetics Platinum, High Quality Capacitor, Cybenetics A-, Multi-GPU Technologies Supported

Programmer / Systemkrav

Med software
CORSAIR iCUE

Mål og vægt

Vægt
4.6 kg
