Varenummer: 2385467

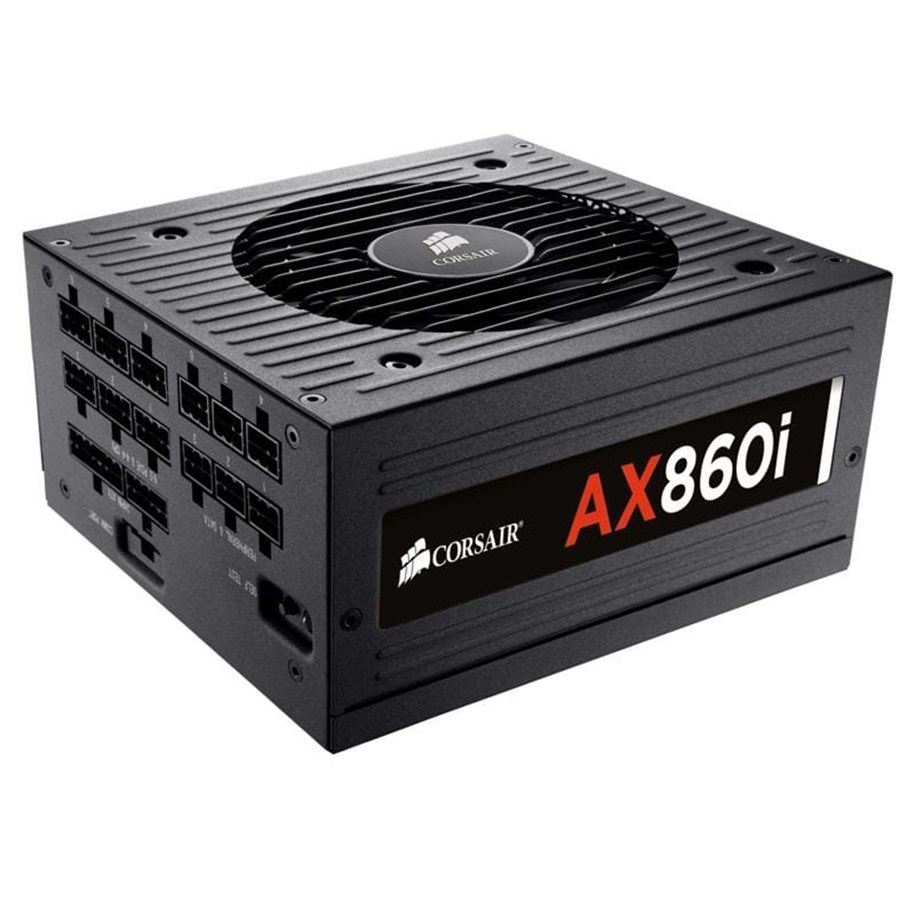

Corsair AX860i Strømforsyning - 860 Watt - 120 mm - 80 Plus Platinum certified

Strømforsyning ( intern ), ATX12V 2.31 / EPS12V 2.92, 80 Plus Platinum, 140mm blæser med zero RPM fan mode teknologi, aktiv PFC, kabler: 8 x 8 (6+2) pins til grafikkort / 12 x 5 pins SATA / 8 x 4 pins Molex / 2 x Floppy / 1 x 20+4 pins ATX / 2 x 4+4 pins CPU, fuld modulær & sleeved kabler, 860 watt - Corsair AXi Series med Digital Signal Processor (DSP)

Varen er udgået
Se lignende produkter

Corsair AXi Digital ATX PSU: complete digital control
- The revolutionary AXi Series PSUs are the first desktop PC power supplies to use digital (DSP) control and Corsair Link (learn how to use Corsair Link with AXi Series PSUs) to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX860i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS® Platinum Efficiency, and clean, stable power.

Real-time monitoring and control with Corsair Link
- Put the AX860i under your control by connecting it directly to a USB header on your motherboard with the included cable, or to a Corsair Link Commander (available separately). Then, download the free Corsair Link Dashboard software for unrivaled power supply monitoring and control options.
- Monitor power input and output, efficiency, fan speed, and internal temperature, directly from the Windows based application. Or, take it to the next level and set up and modify fan speed profiles, or even select from virtual “single rail” or “multi-rail” software modes, with selectable OCP points.

Stable and Reliable Power Delivery
- DSP-controlled, real-time voltage regulation helps ensure that your valuable components receive clean, stable power.

Less Heat and Lower Operating Cost
- AX860i's extreme efficiency earns it coveted 80 PLUS® Platinum certification. Less wasted power means minimal excess heat. This can reduce the strain on your other components, and it can save you money over the long run in the form of lower power bills.

Quiet Operation at low loads
- Super-high efficiency has another benefit: silence. The thermally-controlled fan doesn't even spin at low loads. It's ideal if you're building a quiet PC or you just want to reduce the amount of ambient noise in your life.

Easy installation and cable routing, with better airflow
- The fully modular cable set allows you to use only the cables you need, and the flat design makes cable routing much easier in tight spaces. You get a clean-looking system build with cables out of the airflow path for efficient space usage that's energy efficient as well.
- The fully modular layout allows you to use only the cables you need, and the Self Test button makes it easy to check the status of your PSU.

Features
- An ultra-quiet, 120mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature.
- The AX860i is so efficient that the fan doesn't spin up until you're pushing your system hard. And, fan speed thresholds can be adjusted with Corsair Link.
- Are you used to checking to see if the fan spins to verify if your power supply is working? No worries. AX860i has a self-test switch to verify proper functionality before you install.

Superior Components and Better Engineering for Excellent Performance and Protection
- High-quality capacitors provide uncompromised performance and reliability.
- Active Power Factor Correction (PFC) with PF value of 0.99
- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
- Engineered to meet maximum power output at a server-grade 50°C temperature rating.

The AX860i provides a dedicated single +12V rail, with configurable virtual "single-rail" and "multi-rail" software modes.

Strømkabel (intern)

Producent
Varenummer
2385467
Model
CP-9020037-EU
Ean
0843591018692
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
CORSAIR AX860i - strømforsyning - 860 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31/ EPS12V 2.92
80 PLUS certificering
80 PLUS Platinum
Vægt
3.29 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
860 Watt
Output Current
+3.3V - 25 A
+5V - 25 A
+12V - 71.6 A
-12V - 0.8 A
+5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
8 x 4-PIN intern strøm
12 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Udstyr inkluderet
Kabelbånd, monteringspakke, kabelpose
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Producentgaranti
10-års garanti

Generelt

Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31/ EPS12V 2.92
PSU formfaktor
ATX
Lokalisering
Europa

Strømenhed

Indgangspænding
AC 100-240 V
Indgangspændingsområde
AC 90 - 264 V
Nødvendig frekvens
50/60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
8 x 4-PIN intern strøm
12 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
860 Watt
Output Current
+3.3V - 25 A
+5V - 25 A
+12V - 71.6 A
-12V - 0.8 A
+5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum

Diverse

Udstyr inkluderet
Kabelbånd, monteringspakke, kabelpose
Medfølgende ledninger
Strømkabelpakke
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
Corsair Link, beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, enkelt 12V skinne, køleblæser med dobbelt kugleleje, Zero RPM-blæsermodus, fuld modulær
Overensstemmelsesstandarder
FCC Klasse B-certificeret, TUV, C-Tick, CB, CCC, cTUVus

Mål og vægt

Bredde
15 cm
Dybde
16 cm
Højde
8.6 cm
Vægt
3.29 kg
