Varenummer: 2446939

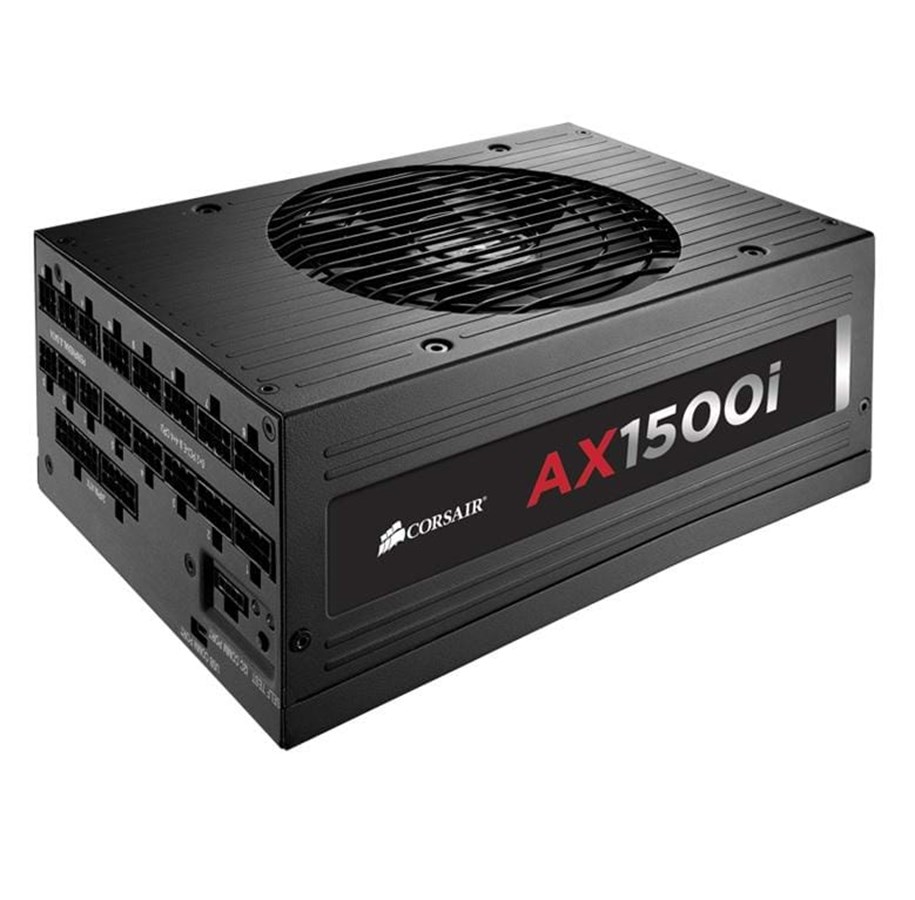

Corsair AX1500i Strømforsyning - 1500 Watt - 140 mm - 80 Plus Titanium certified

Strømforsyning ( intern ), ATX12V 2.31 / EPS12V 2.92, 80 Plus Platinum, 140mm blæser med zero RPM fan mode teknologi, aktiv PFC, kabler: 10 x 8 (6+2) pins til grafikkort / 20 x 5 pins SATA / 12 x 4 pins Molex / 2 x Floppy / 1 x 20+4 pins ATX / 2 x 4+4 pins CPU, fuld modulær & sleeved kabler, 1500 watt - Corsair AXi Series med Digital Signal Processor (DSP)

Varen er udgået
Se lignende produkter


The best enthusiast PC power supply you can own.



AX1500i defines the state of the art for enthusiast-grade PC power supplies. It provides 1500 Watts of continuous, digitally-controlled power – even on 115V 15 Amp circuits – and 80 PLUS Titanium certification with an incredible 94% efficiency rating.

Zero RPM Fan mode ensures silent operation at low and medium loads, and the fully modular, low profile cable set makes for easy installation and great-looking builds. Corsair Link integration lets you monitor power usage and efficiency and customize performance, directly from your Windows desktop. The AX1500i lets you have it all, and it’s the power supply you want for your ultra-high performance PC.


Provides 1500 Watts of reliable, continuous power for high-performance PCs
If you’re building ultra high-end performance systems or pushing world overclocking records, you know it when even 1200 Watts just isn’t enough. The AX1500i reliably delivers 1500 Watts of continuous – not peak – power on demand. And, you don’t need any special household wiring to make it happen… you’ll get 1500 Watts of clean, stable power even on 115V 15 Amp circuits.




Digitally controlled power
The AX1500i is designed around a DSP for increased efficiency, tighter voltage regulation, and superior electrical specifications. The elegant, DSP-based design reduces internal component count and allows for better control of electrical ripple and noise.

80 PLUS Titanium specification for ultra high efficiency
The AX1500i, simply put, approaches near-perfect efficiency like no other desktop PC power supply has ever done. Amazing efficiency has so many benefits – not only does it lower your operating costs, but it generates less heat, too. And that means that there’s less cooling required, which lowers noise.

Zero RPM Fan Mode for silent operation at low and medium loads
In fact, most of the time, no active cooling is required. The fan simply doesn’t spin. And when you’re pushing it hard, the thermally controlled fan adjusts its speed to match demand. The custom-designed fan is extra large, with a diameter of 140mm for low noise even at full load, and it uses a fluid dynamic bearing for quiet, reliable operation.


Corsair Link desktop monitoring and control



Connect the AX1500i to a motherboard USB header with the included cable, and you can use Corsair Link to monitor power input, power output, efficiency, and internal temperature in real time. You can customize fan speed response, and set up your AX1500i to operate as a single-rail power supply, or with multiple virtual rails with customizable OCP points.




Fully modular, low-profile cables
AX1500i is fully modular, which means that there are no permanently attached cables. This greatly simplifies installation and allows you to use only the cables you need, for a neater, cleaner build. This can also improve performance: fewer extraneous cables in your system can reduce airflow obstruction.



Strømkabel (intern)

Producent
Varenummer
2446939
Model
CP-9020057-EU
Ean
0843591030083
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
CORSAIR AX1500i - strømforsyning - 1500 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V 2.92
80 PLUS certificering
80 PLUS Titanium
Vægt
4.9 kg
Lokalisering
Europa
Indgangspænding
AC 120-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1500 Watt
Output Current
+3.3V - 30 A
+5V - 30 A
+12V - 125 A
-12V - 0.8 A
+5VSB - 3.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
10 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
12 x 4-PIN intern strøm
20 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration
Ja
Kølesystem
140 mm ventilator
Udstyr inkluderet
Kabelpose
Dimensioner (B x D x H)
15 cm x 22.5 cm x 8.6 cm
Producentgaranti
10-års garanti

Generelt

Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V 2.92
PSU formfaktor
ATX
Lokalisering
Europa

Strømenhed

Indgangspænding
AC 120-240 V
Indgangspændingsområde
AC 90 - 264 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion
2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
10 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
12 x 4-PIN intern strøm
20 x 15 pin Serial ATA strøm
2 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1500 Watt
Output Current
+3.3V - 30 A
+5V - 30 A
+12V - 125 A
-12V - 0.8 A
+5VSB - 3.5 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Titanium

Diverse

Udstyr inkluderet
Kabelpose
Medfølgende ledninger
Strømkabelpakke
Kølesystem
140 mm ventilator
Egenskaber
Corsair Link, overvågning af blæserhastighed, beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, Zero RPM-blæsermodus, DSP-teknologi, køleblæser til flydende dynamisk leje, fuld modulær
Overensstemmelsesstandarder
CSA, UL, TUV, C-Tick, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, cTUVus, REACH, KC, China RoHS, RCM

Mål og vægt

Bredde
15 cm
Dybde
22.5 cm
Højde
8.6 cm
Vægt
4.9 kg
