SSD (Solid state drive), 500 GB, intern, Datahastighed: 3500 MBps (læs) / 3200 MBps (skriv), IOPS: 480000 (læs) / 550000 (skriv), 512MB LPDDR4 cache, M.2 2280 (80mm), M.2 2280 (80mm), PCI-Express 3.0 x4 NVMe 1.3 (Non-Volatile Memory Express), 256-bit AES kryptering, TCG Opal Encryption - Samsung Phoenix Controller

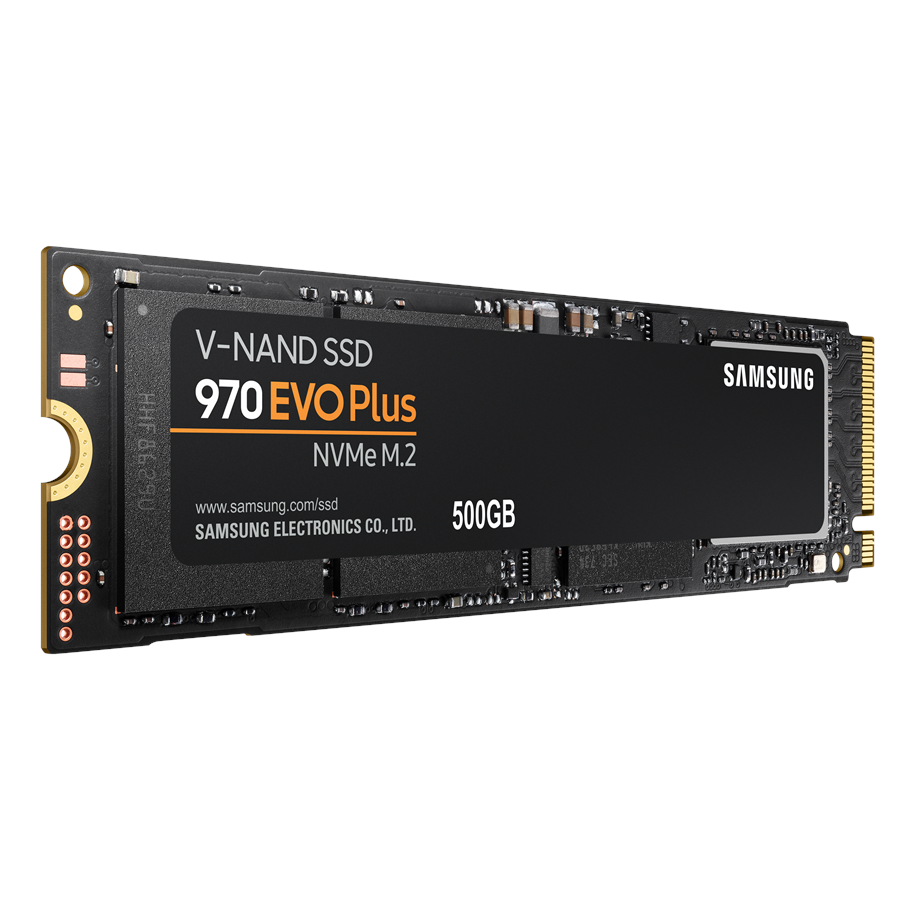

| Produktbeskrivelse | Samsung 970 EVO Plus MZ-V75S500BW - solid state drive - 500 GB - PCI Express 3.0 x4 (NVMe) |
| Type | Solid state drive - intern - TRIM support, stand-by modus, Auto Garbage Collection Algorithm, V-NAND Technology, NVM Express (NVMe) 1.3, Samsung Phoenix Controller |
| Kapacitet | 500 GB |
| Hardware kryptering | Ja |
| Krypterings algoritme | 256-bit AES |
| NAND Flashhukommelses-type | Tredobbelt-niveau celle (TLC) |
| Model | M.2 2280 |
| Grænseflade | PCI Express 3.0 x4 (NVMe) |
| Buffer størrelse | 512 MB |
| Egenskaber | TRIM support, stand-by modus, Auto Garbage Collection Algorithm, V-NAND Technology, NVM Express (NVMe) 1.3, Samsung Phoenix Controller, S.M.A.R.T. |
| Dimensioner (B x D x H) | 22.15 mm x 80.15 mm x 2.38 mm |
| Vægt | 8 g |
| Producentgaranti | 5 års garanti |
Generelt | |
|---|---|
| Enhedstype | Solid state drive - intern |
| Kapacitet | 500 GB |
| Hardware kryptering | Ja |
| Krypterings algoritme | 256-bit AES |
| NAND Flashhukommelses-type | Tredobbelt-niveau celle (TLC) |
| Model | M.2 2280 |
| Grænseflade | PCI Express 3.0 x4 (NVMe) |
| Buffer størrelse | 512 MB |
| Egenskaber | TRIM support, stand-by modus, Auto Garbage Collection Algorithm, V-NAND Technology, NVM Express (NVMe) 1.3, Samsung Phoenix Controller, S.M.A.R.T. |
| Bredde | 22.15 mm |
| Dybde | 80.15 mm |
| Højde | 2.38 mm |
| Vægt | 8 g |
Præstation | |
|---|---|
| SSD-udholdenhed | 300 TB |
| Intern datahastighed | 3500 MBps (læs) / 3200 MBps (skriv) |
| 4KB Random Read | 19000 IOPS |
| 4KB Random Write | 60000 IOPS |
| Maximum 4KB Random Write | 550000 IOPS |
| Maksimal 4 KB tilfældig læsning | 480000 IOPS |
Driftssikkerhed | |
|---|---|
| MTBF (forventet tid mellem fejl) | 1,500,000 timer |
Ekspansion og forbindelse | |
|---|---|
| Interface | PCI Express 3.0 x4 (NVMe) - M.2 Card |
| Kompatibel bås | M.2 2280 |
Effekt | |
|---|---|
| Strømforbrug | 5.8 Watt (gennemsnitlig) 9 Watt (maksimum) 30 mW (ledigt maks.) |
Diverse | |
|---|---|
| Overensstemmelsesstandarder | IEEE 1667 |
Producentgaranti | |
|---|---|
| Service & Support | Begrænset garanti - 5 år |
EK-M.2 NVMe Heatsink is a passive heatsink for M.2 NVMe Next Generation Form Factor SSDs. The heatsink is ribbed, so it`s not just a flat aesthetical cover, it also acts as a very effective passive cooler.
Compatible with all single-sided type 2280 M.2 NVMe SSDs
EK-M.2 NVMe Heatsink is a passive heatsink for M.2 NVMe Next Generation Form Factor SSDs. The heatsink is ribbed, so it`s not just a flat aesthetical cover, it also acts as a very effective passive cooler.
Compatible with all single-sided type 2280 M.2 NVMe SSDs
EK-M.2 NVMe Heatsink is a passive heatsink for M.2 NVMe Next Generation Form Factor SSDs. The heatsink is ribbed, so it`s not just a flat aesthetical cover, it also acts as a very effective passive cooler.
Compatible with all single-sided type 2280 M.2 NVMe SSDs
Ovenstående informationer/specifikationer er vejledende og kan uden varsel være ændret af producenten.
Der tages forbehold for trykfejl og vejledende billeder.
