PLANET GT-805A

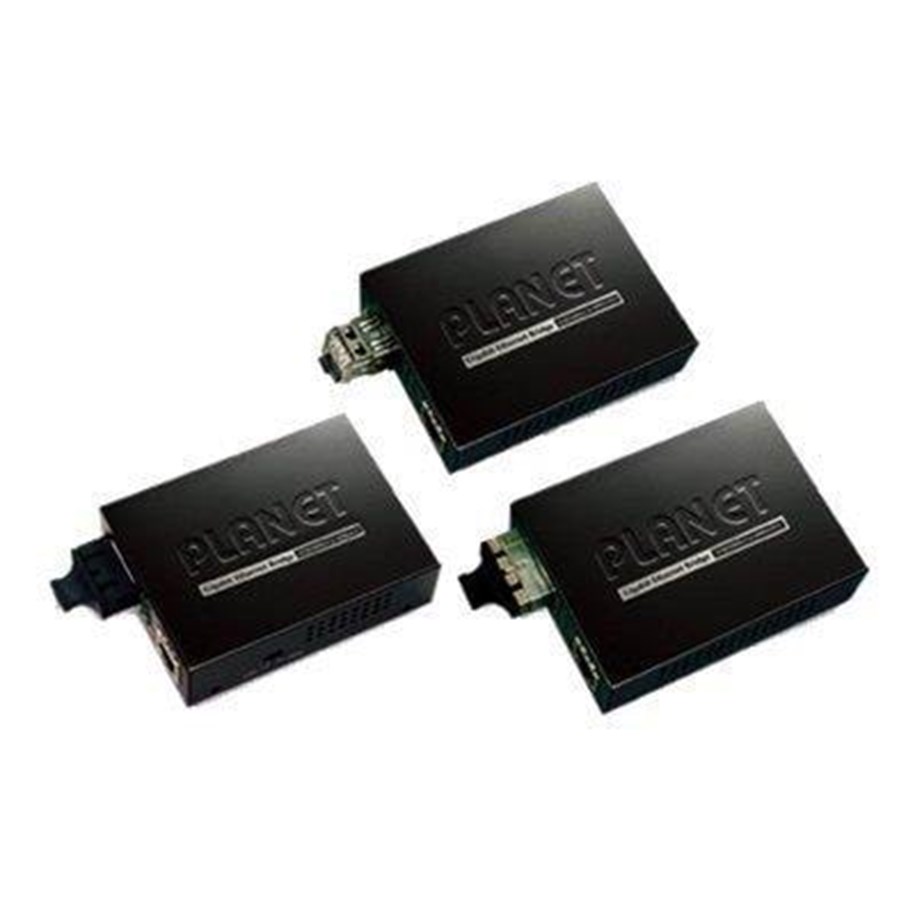

Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. The GT-80X series offer three types of connector, SC/SFP/WDM connector, with single-mode or multi-mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
