Varenummer: 2908024

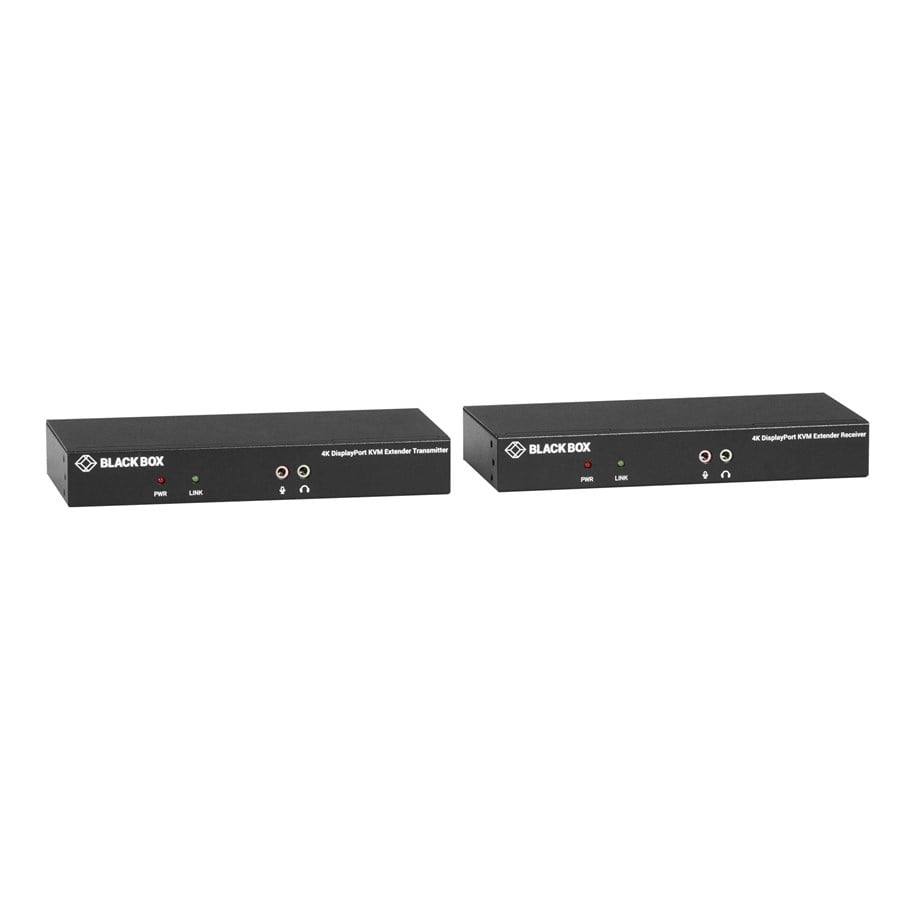

Black Box KVX Series KVM Extender over CATx - 4K Single-Head DisplayPort USB 2.0 Hub Serial Audio Local Video
4K, Single-Head, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video, Sender og modtager, KVM / audio / seriel / USB forlænger, USB, op til 100 m, 1U, TAA-kompatibel
9.177,00 kr.
7.341,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, leveringstiden kan ikke oplyses
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager
Oplader medfølger
Extend KVM signals up to 100m over CATx cable. The KVX Single Head DisplayPort KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). This extender also supports 4K video. PC connection cables are included with this product making it a solution that is ready to use right out of the box. You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations. KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX is TAA compliant and backed by free lifetime technical support. KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or customers who require control of systems that are physically inaccessible placed in secure locations or in otherwise harsh environments. This can include command and control operations server management distribution monitoring or utilities process control centers.
Producent
Varenummer
2908024
Model
KVXLCDP-100
Ean
822088142584
Til producentens hjemmeside
Type
Sender & modtager
Forbindelsesteknologi
Ledningsført
Maksimal overførselsafstand
100 m
Understøttede kabeltyper
Cat6
Stativ-montering
Ja
Maksimal digital opløsning
3840 x 2160 pixel
Understøttede opløsninger
3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz
Produktfarve
Sort
Materiale
Metal
Nem at installere
Ja
LED-indikatorer
Link, Strøm
Sender til video porttype
DisplayPort
Sender til lokal videoport
Ja
Sender til lokal video porttype
DisplayPort
Antal RJ-45 porte (sender)
1
Modtager til lokal video porttype
DisplayPort
Antal RJ-45 porte (modtager)
1
USB porttype
USB Type-A
Antal USB 2.0-porte
4
RS-232-porte
1
Antal RJ-45-porte
1
Antal RJ-11-porte
0
Pc lydindgang
Ja
PC-lydudgang
Ja
Udgangsspænding for vekselstrømsadapter
5 V
Vekselstrømsadapterens udgangsstrøm
2 A
Transmitter bredde
8,3 cm
Transmitter dybde
18 cm
Transmitter højde
2,1 cm
Transmitter vægt
372 g
Modtager bredde
8,3 cm
Modtager dybde
18 cm
Modtager højde
2,1 cm
Modtager vægt
378 g
AC-adapter inkluderet
Ja
Kabler inkluderet
Lyd (3ˌ5 mm), DisplayPort, USB Type-A til USB Type-B
Driftstemperatur (T-T)
0 - 50 °C
Opbevaringstemperatur (T-T)
-20 - 60 °C
Harmoniseret systemkode (HS)
84733080
Funktioner
Type
Sender & modtager
Forbindelsesteknologi
Ledningsført
Maksimal overførselsafstand
100 m
Understøttede kabeltyper
Cat6
Stativ-montering
Ja
Maksimal digital opløsning
3840 x 2160 pixel
Understøttede opløsninger
3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz
Produktfarve
Sort
Materiale
Metal
Nem at installere
Ja
LED-indikatorer
Link, Strøm
Sender
Sender til video porttype
DisplayPort
Sender til lokal videoport
Ja
Sender til lokal video porttype
DisplayPort
Antal RJ-45 porte (sender)
1
Modtager
Modtager til lokal video porttype
DisplayPort
Antal RJ-45 porte (modtager)
1
Porte & Grænseflader
USB porttype
USB Type-A
Antal USB 2.0-porte
4
RS-232-porte
1
Antal RJ-45-porte
1
Antal RJ-11-porte
0
Pc lydindgang
Ja
PC-lydudgang
Ja
Strømstyring
Udgangsspænding for vekselstrømsadapter
5 V
Vekselstrømsadapterens udgangsstrøm
2 A
Vægt & størrelser
Transmitter bredde
8,3 cm
Transmitter dybde
18 cm
Transmitter højde
2,1 cm
Transmitter vægt
372 g
Modtager bredde
8,3 cm
Modtager dybde
18 cm
Modtager højde
2,1 cm
Modtager vægt
378 g
Emballage indhold
AC-adapter inkluderet
Ja
Kabler inkluderet
Lyd (3ˌ5 mm), DisplayPort, USB Type-A til USB Type-B
Driftsbetingelser
Driftstemperatur (T-T)
0 - 50 °C
Opbevaringstemperatur (T-T)
-20 - 60 °C
Logistik data
Harmoniseret systemkode (HS)
84733080
Ovenstående informationer/specifikationer kan løbende ændres. I tilfælde af trykfejl vedrørende pris eller udsolgte varer bestræber vi os på hurtigst muligt at opdatere siden. Hvis en pris er åbenlyst forkert, er Proshop ikke forpligtet til at levere det pågældende produkt til den forkerte pris. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som virker misvisende.
