MP112/2S/SIP - AudioCodes MediaPack Series MP-112

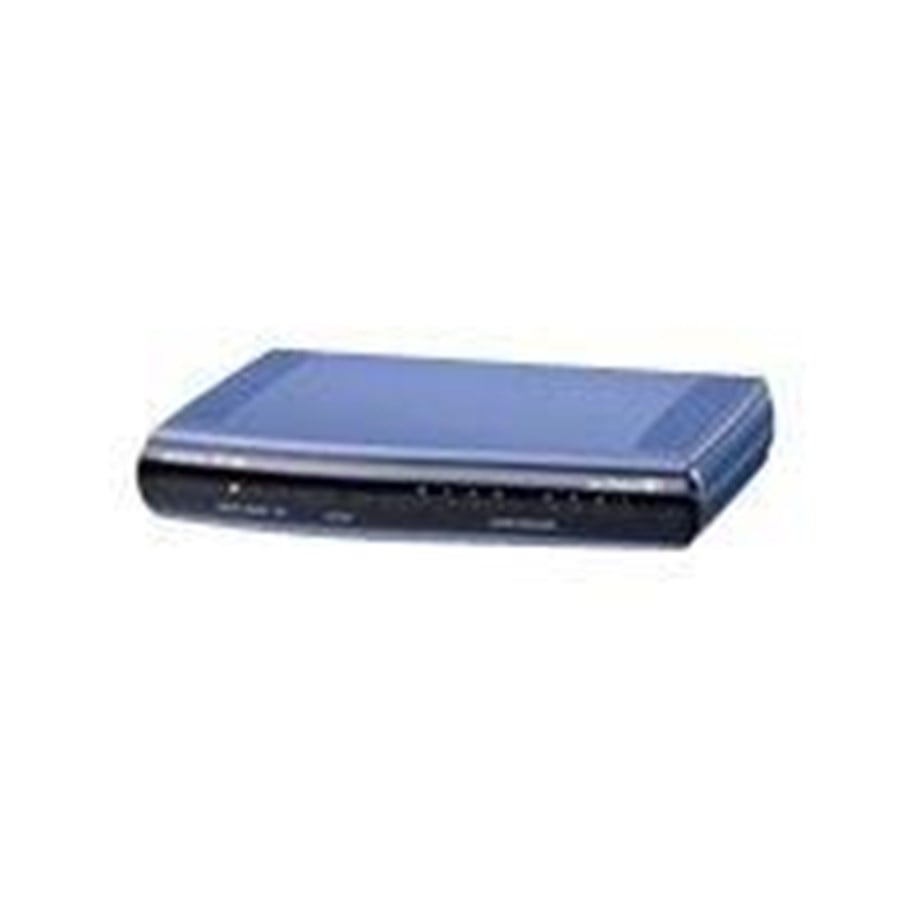

AudioCodes MediaPack Series MP-112

VoIP-gateway, 2 porte, 100Mb LAN

Varenummer: 2691568
1.716,00 kr.
1.372,80 kr. ekskl. moms
Fjernlager, 4-5 dages levering
Billigste privatfragt 0,00 kr.
Pick-up Points lagerstatus
Aarhus
0 stk.
Ikke på lager
København
0 stk.
Ikke på lager

Detaljer

Producent: AudioCodes
Varenummer: 2691568
Model: MP112/2S/SIP
Ean:

Til producentens hjemmeside

www.audiocodes.com/
ProduktbeskrivelseAudioCodes MediaPack Series MP-112 - VoIP-gateway
EnhedstypeVoIP-gateway
FormfaktorEkstern
Antal porte2
DataforbindelsesprotokolEthernet, Fast Ethernet
VoIP-protokollerH.323, MGCP, SIP
Grænseflader til telefoni2 telefoner (FXS)
EffektAC 120/230 V (50 - 60 Hz)
Dimensioner (B x D x H)22 cm x 17.2 cm x 4.2 cm

Generelt

Enhedstype VoIP-gateway
Bredde 22 cm
Dybde 17.2 cm
Højde 4.2 cm

Netværk

Model Ekstern
Antal porte 2
Forbindelsesteknologi Kabling
Dataforbindelsesprotokol Ethernet, Fast Ethernet
Netværks/overføselsprotokol IPSec, PPPoE, BOOTP, DHCP
Protokol til fjernadministration HTTP, HTTPS, TFTP
Statusindikatorer Status, link/aktivitet
Egenskaber DHCP-understøttelse, understøttet af BOOTP, Syslog understøttet, håndterbar, Data prioritization (Qos) til VoIP applikationer
Krypterings algoritme TLS
Overensstemmelsesstandarder IEEE 802.1Q, IEEE 802.1p

IP-telefoni

VoIP-protokoller H.323, MGCP, SIP
Voice Codecs G.711, G.723.1, G.729a, G.726, T.38
Grænseflader til telefoni 2 telefoner (FXS)
IP-telefonifunktioner Comfort noise generation (CNG), detektering af stemme (voice activity detection = VAD), echo cancellation (G.168) (eliminerer ekko), adaptative jitter buffer, automatisk fax/modem detektion og pass-through

Ekspansion / Konnektivitet

Interface 1 x 100Base-TX - RJ-45
2 x modem - RJ-11
1 x administration

Diverse

Overensstemmelsesstandarder VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, UL 60950-1, EN 60950-1

Effekt

Strømenhed Intern strømforsyning
Nødvendig spænding AC 120/230 V (50 - 60 Hz)
The MediaPack Series Analog VoIP Gateways are cost-effective, best-of-breed technology products. These stand-alone analog VoIP Gateways provide superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP-based telephony networks, as well as for integration with IP-based PBX systems. These products are designed and tested to be fully interoperable with leading Softswitches, SIP servers and H. 323 gatekeepers.

MediaPacks are well suited for commercial VoIP deployment because of their mature and field-proven voice and fax technology. Their rich feature set allows integration with a wide range of Carriers and Enterprise network applications. MediaPack gateways are used by carriers and service providers in access networks for connecting Multi-Tenant Units (MTU), IP Centrex subscribers, payphones and rural users over various wireless and satellite links. Enterprises use MediaPack gateways to connect their legacy PBX systems over an IP infrastructure. In addition, in IP Centrex and central IP-PBX applications, the MediaPack increases the remote location availability and provides Stand Alone Survivability (SAS) when there is no IP connection between branch locations and the central SIP servers, SIP Proxy or central IP-PBX.

MediaPacks are third generation products that have been designed to meet real market needs. In addition to superior voice technology, the products provide advanced telephony features such as long-haul, metering tones generation, country dependent MWI and CID for true integration with the existing telephony infrastructure. A variety of management and provisioning tools, such as AudioCodes' EMS, embedded web server, Telnet and SNMP enable fast deployment and management of large and complex networks. MediaPacks are based on VolPerfect architecture, AudioCodes underlying, best-of-breed, core media gateway technology for all of its products.
