Varenummer: 2973853

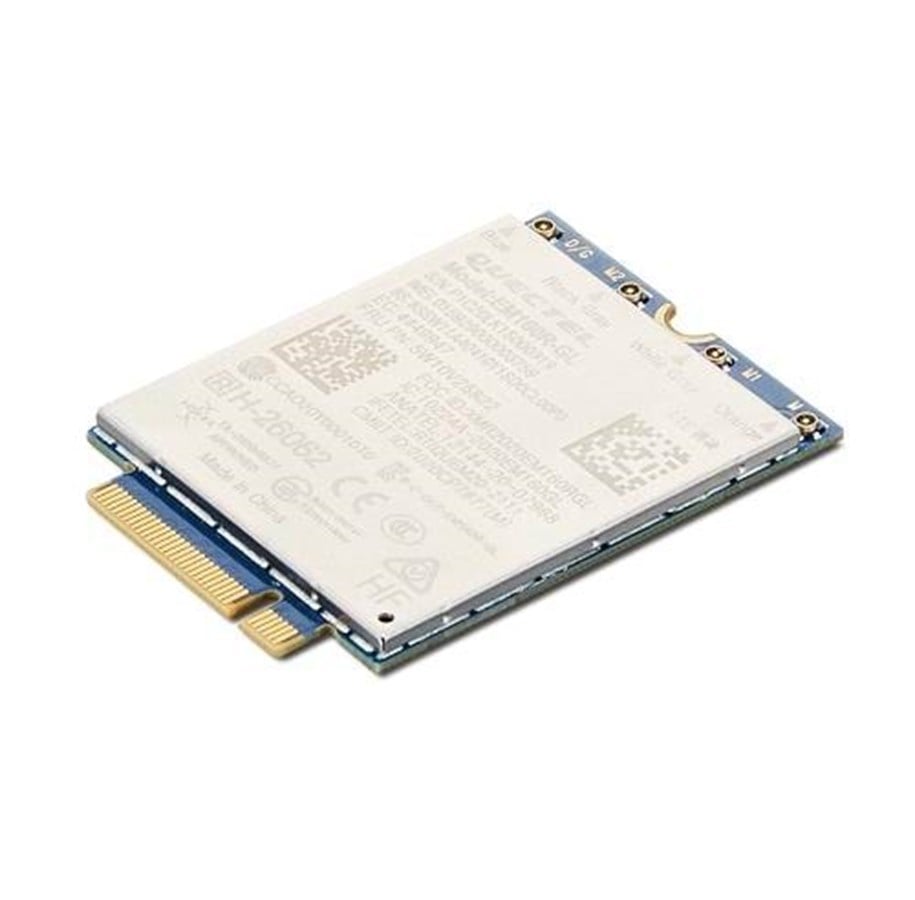

Lenovo ThinkStation Quectel -4G LTE - M.2
Trådløs mobilmodem, 4G LTE Advanced, M.2 Card, 1 Gbps, for (WWAN-ready): ThinkPad P14s Gen 2 20VX, 20VY; P15 Gen 2 20YQ, 20YR; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1; T15 Gen 2 20W4, 20W5
1.257,00 kr.
1.005,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 2-3 dages levering
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager
Quectel EM160R-GL is an LTE-A Cat 16 module in an M.2 form factor which is designed to meet the 3GPP Release 14 specification. It supports maximum downlink rates of 1 Gbps and uplink rates of 150 Mbps.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
Producent
Varenummer
2973853
Model
4XC1D69579
Ean
195892020905
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
Quectel EM160R-GL - trådløs mobilmodem - 4G LTE Advanced
Enhedstype
Trådløs mobilmodem - M.2 Card
Formfaktor
Intern
Maks. overførselshastighed
1 Gbps
Mobilprotokol
UMTS, WCDMA, HSUPA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE
Mobilt net
W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8
Dimensioner (B x D x H)
4.2 cm x 3 cm x 0.23 cm
Vægt
6.8 g
Designet for
(WWAN-ready): ThinkPad P14s Gen 2 20VX, 20VY; P15 Gen 2 20YQ, 20YR; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1; T15 Gen 2 20W4, 20W5
Generelt
Enhedstype
Trådløs mobilmodem
Formfaktor
Intern
Modem
Bus
M.2 Card
Forbindelsesteknologi
Trådløs
Maks. overførselshastighed
1 Gbps
Mobilt net
W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8
Mobilprotokol
UMTS, WCDMA, HSUPA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE
Diverse
Overensstemmelsesstandarder
WHQL, CCC, FCC, PTCRB, GCF
Mål og vægt
Bredde
4.2 cm
Dybde
3 cm
Højde
0.23 cm
Vægt
6.8 g
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
85 °C
Oplysninger om kompatibilitet
Designet for
(WWAN-ready):
Lenovo ThinkPad P14s Gen 2 20VX, 20VY
Lenovo ThinkPad P15 Gen 2 20YQ, 20YR
Lenovo ThinkPad P15s Gen 2 20W6, 20W7
Lenovo ThinkPad T14 Gen 2 20W0, 20W1
Lenovo ThinkPad T15 Gen 2 20W4, 20W5
Lenovo ThinkPad P14s Gen 2 20VX, 20VY
Lenovo ThinkPad P15 Gen 2 20YQ, 20YR
Lenovo ThinkPad P15s Gen 2 20W6, 20W7
Lenovo ThinkPad T14 Gen 2 20W0, 20W1
Lenovo ThinkPad T15 Gen 2 20W4, 20W5
