Varenummer: 2952188
Schneider Electric Stikbensrelæ 2c/o 8a 24vdc
Schneider Electric RSB2A080BD Ikke kategoriseret
69,00 kr.
55,20 kr. ekskl. moms
Billigste fragt (privatkunde) 39,00 kr.
Fjernlager, 3 dages levering
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager
Schneider Electric Zelio RSB Series Relays
A range of Schneider Electric interface relays from the Zelio series. These plug in Relays are suitable for standard applications.
Simple installation and operation
Contacts material silver alloy (Ag/Ni)
DC or AC coil
Operating temperature -40 - 70 В°C
Ingress protection IP40
Standards
IEC/EN 61810-1, UL 508, CSA C22-2 nВ° 14
Approvals
UL, CSA

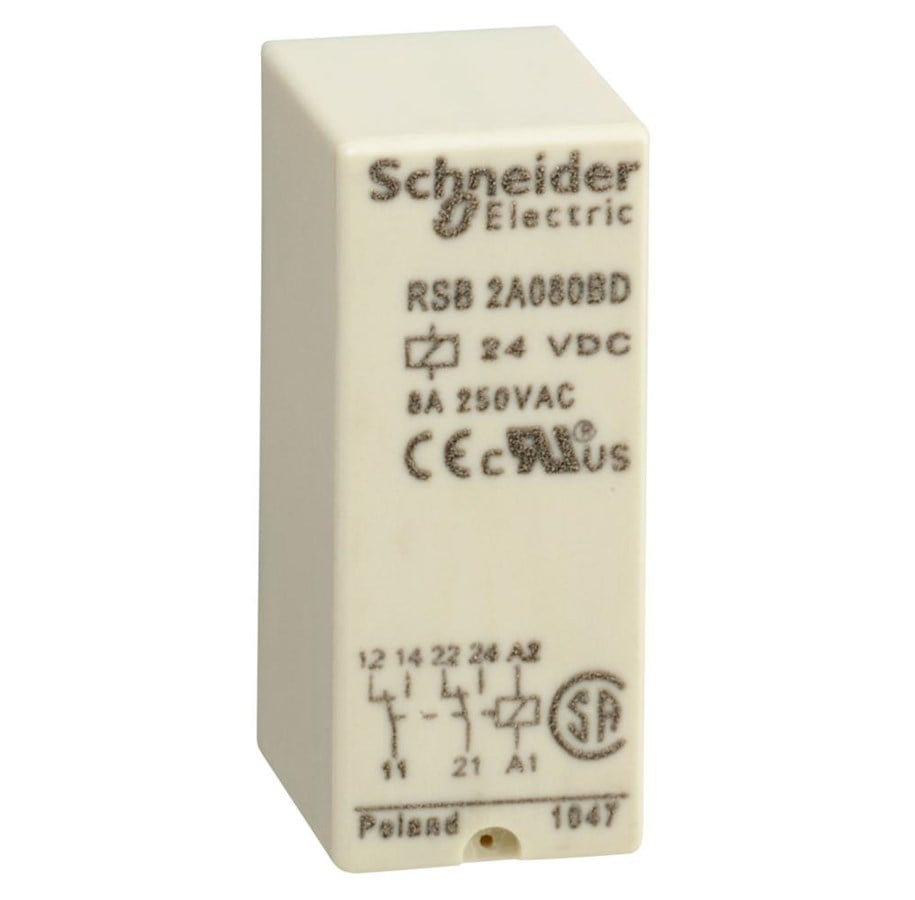

Schneider Electric Interface Relay Series Power Relay, IP40, 24V DC Control Circuit Voltage - RSB2A080BD
This interface relay from the Harmony Electromechanical Relays series operates at 24V DC with a plug-in design accommodating up to 8A. It features dual changeover contacts and an average coil resistance of 1440О©, suitable for temperatures between -40 to 85В°C.
Features & Benefits
- Dual pole double throw (DPDT) configuration
- Silver alloy contacts for enhanced durability
- RoHS compliant
Applications
- Automated control systems
- Industrial machinery
- HVAC applications
- Lighting control circuits
- Process automation
Can it handle inductive loads?
Yes, it is designed for both resistive and inductive loads.
Will it fit in compact spaces?
Yes, its compact dimensions facilitate installation in tight areas.
Is it safe for outdoor use?
It is designed for indoor use
protect from external elements.
Can it switch high voltage?
It manages up to 300V DC for safe operation.
Is installation straightforward?
Yes, it features a PCB mount design for easy installation.
A range of Schneider Electric interface relays from the Zelio series. These plug in Relays are suitable for standard applications.
Simple installation and operation
Contacts material silver alloy (Ag/Ni)
DC or AC coil
Operating temperature -40 - 70 В°C
Ingress protection IP40
Standards
IEC/EN 61810-1, UL 508, CSA C22-2 nВ° 14
Approvals
UL, CSA
Schneider Electric Interface Relay Series Power Relay, IP40, 24V DC Control Circuit Voltage - RSB2A080BD
This interface relay from the Harmony Electromechanical Relays series operates at 24V DC with a plug-in design accommodating up to 8A. It features dual changeover contacts and an average coil resistance of 1440О©, suitable for temperatures between -40 to 85В°C.
Features & Benefits
- Dual pole double throw (DPDT) configuration
- Silver alloy contacts for enhanced durability
- RoHS compliant
Applications
- Automated control systems
- Industrial machinery
- HVAC applications
- Lighting control circuits
- Process automation
Can it handle inductive loads?
Yes, it is designed for both resistive and inductive loads.
Will it fit in compact spaces?
Yes, its compact dimensions facilitate installation in tight areas.
Is it safe for outdoor use?
It is designed for indoor use
protect from external elements.
Can it switch high voltage?
It manages up to 300V DC for safe operation.
Is installation straightforward?
Yes, it features a PCB mount design for easy installation.
Producent
Varenummer
2952188
Model
RSB2A080BD
Ean
3389110252361
