Varenummer: 2299872

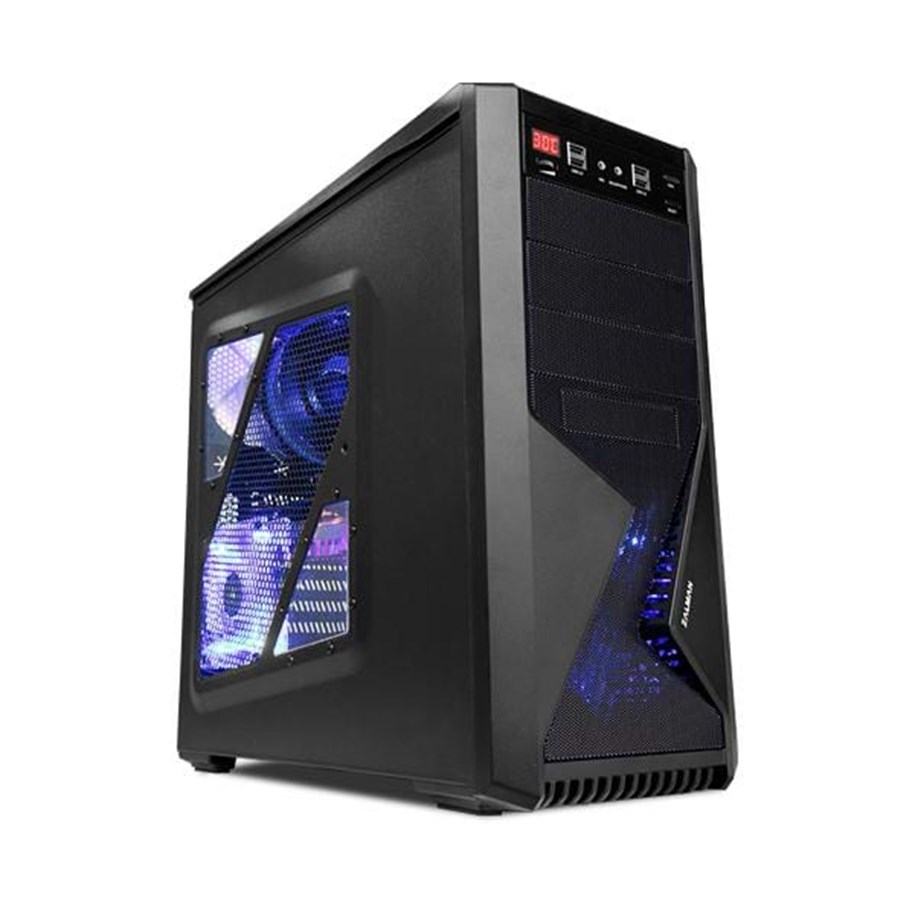

Zalman Z9 Plus - Black - Kabinet - Miditower - Sort

Miditower, ATX, ingen strømforsyning, front med 4 x USB 2.0 & lyd tilslutninger, indbygget temperatur display, 1 x 2.5" / 6 x 3.5" / 3 x 5.25" slots, vandkølingsplads: understøtter op til 280mm radiator, max grafikkortlængde: 29 cm, medfølgende kabinetkølere: 1 x 120mm front / 1 x 120mm bag / 1 x 120mm top / 1 x 120mm side, med sidevindue, sort

Varen er udgået

Front Mesh Cover for High Cooling Performance

The front mesh bay cover provides cool air into the system while dust filters prevent dust from entering.
 Supports up to 7 System Fans

Up to 7 system fans are installed to expel hot air effectively from the case.

Supports Bottom PSU Installation and Aperture for Cable Management

Z9 Plus supports bottom PSU installation and provides an aperture for cable management to make better use of interior space.
 Black Interior Coating

The interior of chassis is coated black to provide a sense of unity and elegant design.

Tool Free HDD Installation with Anti-Vibration Rubber

The server-type Tool-Free HDD Mount Trays allow easy HDD installation/removal and maintenance.
 Spacious Interior for Installing 290mm Card

The interior has been designed to be spacious for easy installation and maintenance of various components.

Front I/O module for Easy Component Change

Front I/O module enables the location of DVD-ROM and other components to be changed easily according to user preference.
 2-Channel Fan Controller and Temperature Display

2-Channel Fan controller for adjusting the system temperature and external LED temperature display are provided. By controlling noise and interior temperature with the fan speed, system can be operated at the most optimal condition.

Side Acryl Tuning

Side Acryl Tuning is provided for users to view the interior of gaming system.
 Supports 4 USB 2.0

Front I/O module provides 4 USB 2.0 ports for user convenience and expandability.

Supports Front, Top, Side 120mm Blue LED fan and Rear 120mm Fan

Four 120mm fans deliver maximum cooling, and 3 Blue LED fan emphasizes cool aesthetics.

※ For Z9, 1 front 120mm Blue LED and 1 rear 120mm White Impeller fan are provided.
 Front and Bottom Dust Filters

Dust filters in the front and bottom mesh covers prevent dust from entering the system and keep the internal components dust-free.

Supports Solid State Drive (SSD)

Space is provided on the back of M/B plate for installing 2.5" HDD/SSD.
 Separate Apertures for Convenient CPU Cooler Installation

Separate apertures for CPU cooler are provided for convenient CPU cooler installation without having to remove motherboard from case.

3IN1 Adapter Tray Provided

3IN1 Adapter Tray is provided for installing FDD / 3.5" HDD / 2.5" HDD/SSD.
 Tube Apertures for Liquid Cooling Systems

Tube apertures are provided at the rear of the case for convenient water cooling set-up and maintenance.

- Main Unit
- Stand-off
- A Bolts (BH 6-32*6) [PSU/PCI Slot Installation]
- B Bolts (PWH M3*5) [M/B, FDD, SSD Installation]
- C Bolts (M3*6) [5.25" Bay ODD Installation]
- D Bolts (#6-32*4) [3.5" Bay HDD Installation]
- E-Bolts (#6-32*6) [3.5" HDD Installation]
- HDD Anti Vibration Damper [3.5" Bay HDD Installation]
- Cable Ties
- CPU 12V Extension Cable
- User’s Manual


Enclosure TypeATX Mid Tower
Dimensions207(W) x 464(H) x 504(D)mm
Weight7.2kg
MaterialPlastic, Steel
Motherboard CompatibilityStandard ATX / m-ATX
Power Supply CompatibilityStandard ATX / ATX12V
VGA CompatibilityFull Size (290mm)
Expansion Slot7
Drive BayExternal 5.25"3
Internal 3.5"5
External 3.5"1
Internal 2.5"1
Cooling
Component
Front120㎜ /140㎜ fan x 1 (120㎜ Blue LED fan x 1 standard)
Top120㎜ /140㎜ fan x 2 (120㎜ Blue LED fan x 1 standard)
Bottom120㎜ /140㎜ fan x 1 (option)
Rear (L)120㎜ fan x 1 (standard)
Side120㎜ fan x 2 (120㎜ Blue LED fan x 1 standard)
Front I/O PortsMic x 1, Headphones x 1, USB 2.0 x 4, Fan Controller, Temperature Display
ColorBlack

Strømforsyning

Kabinet Tilbehør

Producent
Varenummer
2299872
Model
ZM-Z9-PLUS
Ean
8809213762123
Til producentens hjemmeside
Produktbeskrivelse
Zalman Z9 Plus - tower - ATX
Produkttype
Systemkabinet
Model
Tower
Farve
Sort
I/O-kontakter
4 x USB 2.0
1 x audio linje-ud
1 x mikrofon
Understøttede motherboards
ATX, Mini-ATX
Egenskaber, systemkabinet
Temperaturvisning, skrueløse drive bays, aftagelig sidepanel, Water-Cooling Hole Ready, blæserhastighedskontrol, meshed front panel, front støvfilter, gulv støvfilter, vibrationsabsorberende drevbåse, kabeladministrationshuller
Strømenhed
Strømforsyning
Specifikationsoverensstemmelse
ATX12V
Dimensioner (B x D x H)
20.7 cm x 50.4 cm x 46.4 cm
Vægt
7.2 kg

Generelt

Model
Tower
Max størrelse på bundkort
ATX
Understøttede motherboards
ATX, Mini-ATX
Specifikationsoverensstemmelse
ATX12V
Antal interne bays
6
Antal bays med frontadgang
5
Farve
Sort
Kølesystem
Front: 120 mm ventilator x 1 / blå LED, 1 x 140 mm blæserunderstøttet
Top: 120 mm ventilator x 1 / blå LED, 1 x 140 mm blæserunderstøttet
Top: 120/140 mm blæserstativ x 1
Nederst: 120/140 mm blæserstativ x 1
Bagside: 120 mm ventilator x 1
Side: 120 mm ventilator x 1 / blå LED, 1 x 140 mm blæserunderstøttet
Side: 120/140 mm blæserstativ x 1
Egenskaber, systemkabinet
Temperaturvisning, skrueløse drive bays, aftagelig sidepanel, Water-Cooling Hole Ready, blæserhastighedskontrol, meshed front panel, front støvfilter, gulv støvfilter, vibrationsabsorberende drevbåse, kabeladministrationshuller

Ekspansion / Konnektivitet

Udvidelses-båse
4 (total) / 3 (fri) x frontadgang - 5.25"
1 (total) / 1 (fri) x frontadgang - 3.5"
5 (total) / 5 (fri) x intern - 3.5"
1 (total) / 1 (fri) x intern - 2.5"
Ekspansionsåbninger
7 x Ekspansionsholder
Interface
4 x USB 2.0
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack

Diverse

Udstyr inkluderet
Kabelbånd, HDD anti-vibrations måtte, 5,25" til 3,5" / 2,5" båsadapter

Effekt

Strømenhed
Strømforsyning
