Varenummer: 2392939

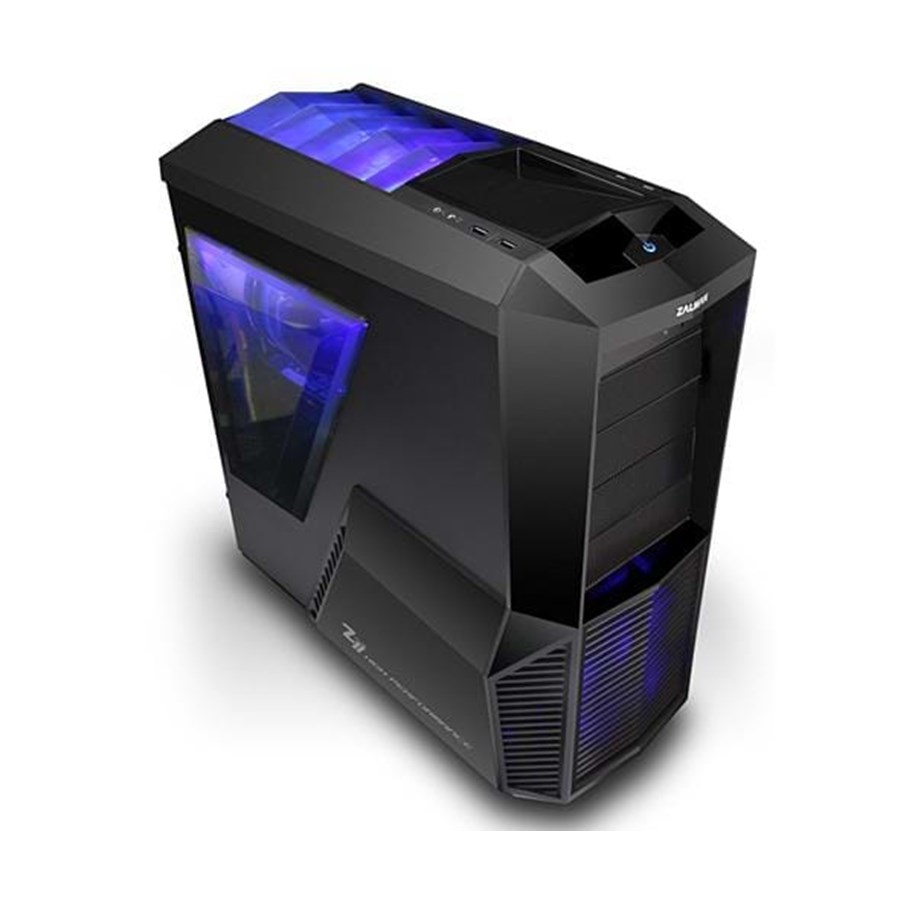

Zalman Z11 Plus - Kabinet - Miditower - Sort

Miditower, ATX, ingen strømforsyning, front med 2 x USB 2.0, 2 x USB 3.0 & lyd tilslutninger, 6 x 2.5"/3.5" / 4 x 5.25" slots, vandkølingsplads: understøtter op til 240mm radiator, max grafikkortlængde: 29 cm, medfølgende kabinetkølere: 1 x 120mm front (blå LED) / 1 x 120mm bag / 1 x 120mm top (blå LED), med sidevindue, sort

Varen er udgået
Se lignende produkter

Front Mesh Cover for High Cooling Performance

The front mesh bay cover provides cool air into the system while dust filters prevent dust from entering.		 Supports up to 7 System Fans

Up to 7 system fans are installed to expel hot air effectively from the case.

Zalman’s Powerful HDD Cooling Solution

Interactive Cooling System : Hot air generated from HDD is expelled through both sides. Cooling Performance is maximized for HDD cooling, and the overall PC exhaust is increased.

Top Air Vent Exhaust/Tuning

For user convenience, Top air vents expel exhaustive air from the top cooling fan. In addition, translucent acryl vents are effective for tuning.		 Side-Panel Acryl Tuning

Dynamic Side Acryl Tuning is provided for users to view the
interior of gaming system.

Supports Dual USB 3.0 Ports

I/O module provides dual USB 3.0 ports for user convenience and expandability.		 Dust Filters for Front and Bottom of System
and PSU

Dust filters in the front and bottom mesh covers prevent
dust from entering the system and keep the internal
components dust-free.

Additional Card Holder Provided

When installing VGA Card and PCI Slot, the bracket can be used permanently.		 Supports Bottom PSU Installation and Aperture for Cable Management

Z11 Plus supports bottom PSU installation and provides an aperture for cable management to make better use of interior space.

Black Interior Coating

The interior of chassis is coated black to provide a sense of unity and elegant design.		 Anti-Vibration Rubber Stand

Anti-Vibration Rubber prevents noise and also keeps the system safe from water or other liquid.

Tool Free HDD Installation with Anti-Vibration
Rubber

The server-type Tool-Free HDD Mount Trays allow easy HDD
installation/removal and maintenance.		 Spacious Interior for 290mm Card Installation

The interior has been designed to be spacious for easy installation and maintenance of various components.

Supports Solid-State Drive (SSD)

Space is provided on the back of M/B plate for installing 2.5" HDD/SSD.

※ Use the bracket located on the 5.25” bay.



 Separate Apertures for Convenient CPU Cooler
Installation

Separate apertures for CPU cooler are provided for convenient
CPU cooler installation without having to remove motherboard
from case.

3-in-1 Bracket Provided

3IN1 Adapter Tray is provided for installing FDD / 3.5“
HDD / 2.5" HDD/SSD.		 Rear Tube Apertures for Liquid Cooling Systems

Tube apertures are provided at the rear of the case for convenient water cooling set-up and maintenance.

- Main Unit
- Stand-off
- A Bolts (#6-32*6mm) [PSU/PCI Slot Installation]
- B Bolts (M3*5mm) [M/B, FDD, SSD Installation]
- C Bolts (M3*6mm) [5.25" Bay ODD Installation]
- D Bolts (#6-32*4mm) [3.5" Bay HDD Installation]
- E-Bolts (#6-32*6mm) [3.5" HDD Installation]
- HDD Anti Vibration Damper [3.5" Bay HDD Installation]
- Cable Ties
- CPU Power Extension Cable
- Card Holder PCI Bracket
- SSD Tray
- User’s Manual


Enclosure TypeATX Mid Tower
Dimensions260(W) x 498(H) x 525(D)mm
Weight7.4kg
MaterialPlastic, Steel
Motherboard CompatibilityStandard ATX / Micro ATX
Power Supply CompatibilityStandard ATX / ATX12V
VGA CompatibilityFull Size (up to 290mm)
Expansion Slot7
Drive Bays5.25"External Bay x 4
3.5"External Bay x 1, Internal Bay x 5
5.25"/3.5"/2.5"1 (3in-1)
Cooling
Components		Front1 x 120mm Blue LED Fan (120mm / 140mm)
Top2 x 120mm Fan (1 x Blue LED Fan Included, 1 x Optional)
Rear1 x 120mm Fan (Standard)
Side2 x 80mm Fan
Bottom120mm/140mm Fan Vent x 1 (Fan optional)
I/O PortsMic x 1, Headphones x 1, USB 2.0 x 2, USB 3.0 x 2
ColorBlack

Strømforsyning

Kabinet Tilbehør

Producent
Varenummer
2392939
Model
Z11 PLUS
Ean
8809213763335
Til producentens hjemmeside
Produktbeskrivelse
Zalman Z11 Plus - tower - ATX
Produkttype
Systemkabinet
Model
Tower
Farve
Sort
I/O-kontakter
2 x USB 3.0
2 x USB 2.0
1 x hovedtelefoner
1 x mikrofon
Understøttede motherboards
ATX, microATX
Egenskaber, systemkabinet
Sidepanel i vindue, skrueløse drive bays, aftagelig sidepanel, frontlufthul, meshed front panel, front støvfilter, gulv støvfilter, støvfilter bagved, huller til vandkøling, bundmonteret PSU-holder
Strømenhed
Ingen strømforsyning
Specifikationsoverensstemmelse
ATX12V
Dimensioner (B x D x H)
26 cm x 52.5 cm x 49.8 cm
Vægt
7.4 kg

Generelt

Model
Tower
Max størrelse på bundkort
ATX
Understøttede motherboards
ATX, microATX
Specifikationsoverensstemmelse
ATX12V
Antal interne bays
6
Antal bays med frontadgang
5
Produktmateriale
Aluminium
Farve
Sort
Kølesystem
Front: 120 mm ventilator x 1 / indtag / blå LED
Bagside: 120 mm ventilator x 1 / udstødning
Top: 120 mm ventilator x 1 / udstødning / blå LED
Nederst: 120/140 mm blæserstativ x 1
Side: 80 mm ventilator x 2 / udstødning
Egenskaber, systemkabinet
Sidepanel i vindue, skrueløse drive bays, aftagelig sidepanel, frontlufthul, meshed front panel, front støvfilter, gulv støvfilter, støvfilter bagved, huller til vandkøling, bundmonteret PSU-holder

Ekspansion / Konnektivitet

Udvidelses-båse
4 (total) / 4 (fri) x frontadgang - 5.25"
1 (total) / 1 (fri) x frontadgang - 2,5" / 3,5" delt
5 (total) / 5 (fri) x intern - 3.5"
1 (total) / 1 (fri) x intern - 2.5"
Ekspansionsåbninger
7 x Ekspansionsholder
Interface
2 x USB 3.0
2 x USB 2.0
1 x hovedtelefoner - mini-jack
1 x mikrofon - mini-jack

Diverse

Udstyr inkluderet
3,5" til 2,5" bås adapter, kabelbånd

Effekt

Strømenhed
Ingen strømforsyning
Maks. antal understøttet
1
