NODE Series

The Node Series of cases offers a stylish way to integrate the computer into your home. With the flexibility to serve as an HTPC, fileserver or media and gaming station, the Node series delivers endless possibilities to combine design and entertainment.

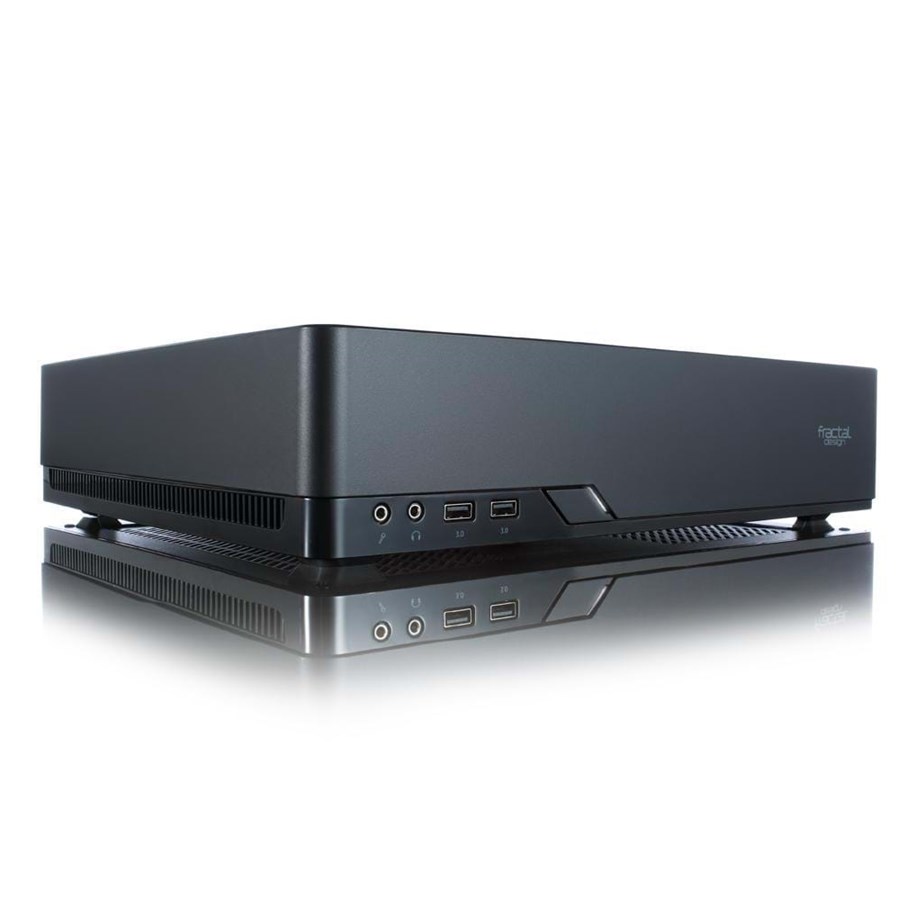

The Node 202 is the ultimate PC case for those looking for a beautifully designed, compact chassis that can house a capable gaming build.

This small footprint is an intelligently built unit where extreme detail was placed into the design phase to get every line and spec in perfect harmony. With both horizontal and vertical orientation possibilities, the Node 202 can be placed anywhere in the house. The sleek design makes it very attractive next to the TV in the living room or on your desk in the office.

The internal layout of the Node 202 keeps the hot components separate and has them all placed in proximity of free-flow air so the case will run cool despite not having any extra case fans.

The Integra SFX 450W PSU that comes inclusive with the enclosure provides stable power to the most demanding systems. It comes with customized connectors and tailored cables perfectly fitted for use within the Node 202, contributing to hassle-free installation and cable management.

Key features

• Featuring a sleek and elegant design that will fit in any space or room
• Extremely small footprint with a volume of only 10.2 liters
• A highly versatile case that can be set up both vertically and horizontally
• Supports Mini-ITX motherboards, SFX power supplies and graphics cards up to 310mm in length
• Provides a smart thermal interior design highlighting separate motherboard and graphics card chambers
• Strategically placed air filters for a dust free interior
• Includes a Fractal Design Integra SFX 450W power supply with specialized cables for the Node 202 case, providing the right connectors with precise cable lengths
• Quiet and efficient operation at 80PLUS Bronze efficiency with a 3 year warranty

Specifications

• Mini ITX motherboard compatibility
• 2 - 2.5″ SSD unit positions
• 2 expansion slots
• 2 - 120mm optional fan positions in graphics card chamber
• CPU coolers up to 56 mm in height
• PSU compatibility: SFX PSUs up to 130mm long
• Graphics card compatibility: Maximum dimension of graphics card is 310x145x47mm (LxHxD)
• Can be placed both vertical and horizontal position
• 3 dust filters included (for CPU, GPU and PSU)
• Case volume: 10.2 litres
• Colors available: Black
• Case dimensions - Horizontal (WxHxD): 377 x 82 x 330 mm
• Case dimensions - Horizontal, with feet/protrusions/screws (WxHxD): 377 x 88 x 332 mm
• Case dimensions - Vertical, with feet/protrusions/screws (WxHxD): 125 x 385 x 332 mm
• Net weight: 3.5 kg
• Package dimensions (WxHxD): 145 x 463 x 388 mm
• Package weight: 5.2kg

Specifications - Integra SFX 450W

• 80PLUS® Bronze certification
• 80mm, temperature controlled fan
• Maximum operating temperature at full load: 50°C (50°C @ 100%)
• Fully Intel Haswell C6/C7 compliant
• 3 years warranty
• Taiwanese capacitors
• OPP / OVP / UVP / SCP / OCP Protection
• Can be placed both vertical and horizontal position
• 100,000 hours life expectancy (MTBF)
• SFX 3.3 PSU specification compliance
• ErP 2013 compliant (<0.5W system power draw)
• Colors available: Black
• Unit measurements (WxHxD): 125 x 64 x 100 mm
• Net weight: 1.0 kg

Cable configuration

DC Output - Integra SFX 450W

Front interface

• 2 - USB 3.0
• Audio in/out
• Power button with LED (white)

Package contents

• Node 202 compupter case
• Integra SFX 450W power supply
• Accessory box
• User manual
• Vertical stand
• Riser card for graphics card
