Varenummer: 2452210

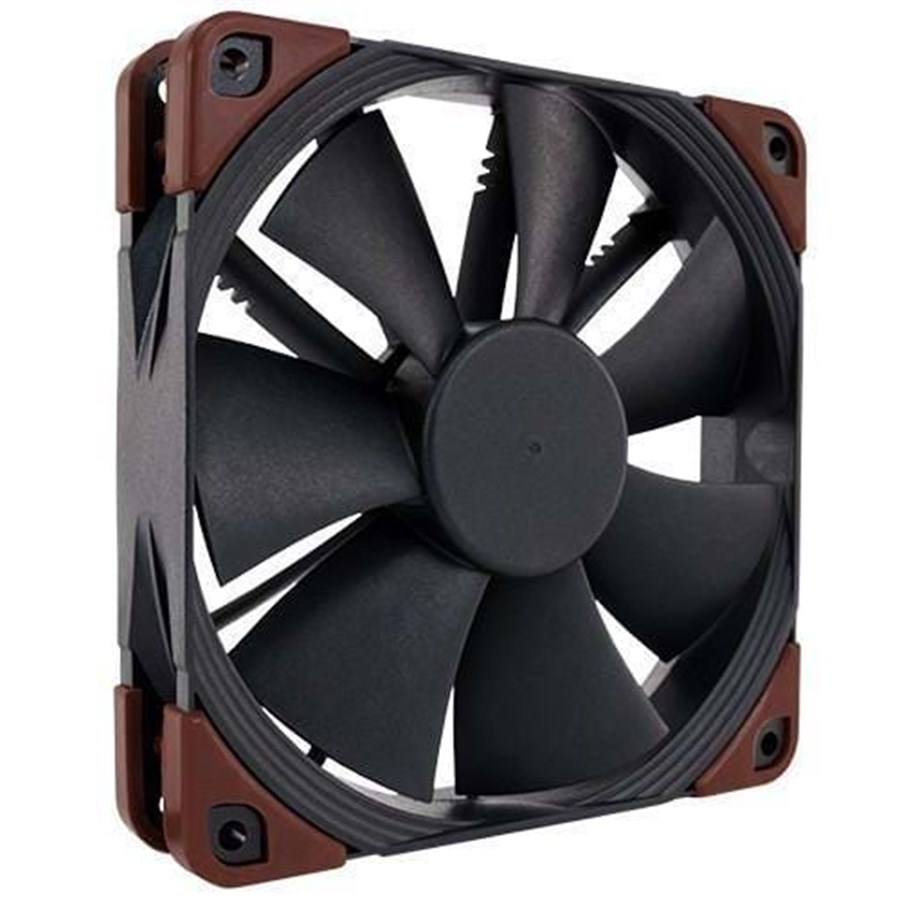

Noctua NF-F12 iPPC-2000 IP67 - Kabinet køler - 120mm - Sort - 29 dBA

Kabinet køler, størrelse: 120mm x 120mm x 25mm (HxBxD), støjniveau: max 29.7 dBA, Air flow: max 71.7 CFM, blæser PRM: 750 - 2000 ±10%, PWM styret, 4 pins bundkort tilslutning, vand- og støvtæt IP67 certificeret, sort

Læs mere
237,00 kr. 189,60 kr. ekskl. moms
Billigste fragt (privatkunde) 39,00 kr.
Bestillingsvare, 13-14 dages levering

Lagerstatus i vores Pick-up Points

  • Aarhus (0 stk.)

    Ikke på lager

  • København (0 stk.)

    Ikke på lager

"

Award-winning NF-F12 design

Having received more than 150 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

3000rpm industrialPPC version

Running twice as fast as the 1500rpm retail version, the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.

Three-phase motor design

While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.

Class-leading energy efficiency

While the standard NF-F12 is one of the most energy efficient 1500rpm 120mm fans on the market, the industrialPPC version's three-phase motor provides a further 10% reduction in power consumption when compared at 2000rpm.

Fibre-glass reinforced polyamide construction

Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

Certified IP52 water- and dust protection

Thanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.

Focused Flow™ frame

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.

Varying Angular Distance and Vortex Control Notches

The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.

Heptaperf™ Impeller

Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

SSO2 Bearing

The NF-F12 industrialPPC features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 industrialPPC sports a CNC milled bearing shell made entirely from brass.

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-F12 industrialPPC uses Noctua's custom-designed NE-FD2 PWM IC for three-phase motors. The NE-FD2 integrates Noctua's proprietary Smooth Commutation Drive (SCD) technology, which suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 industrialPPC features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.

Customisable for industry clients

For industry clients, various features, certificates, packaging options and accessories can be customised on requests. For example, we can provide 24V versions, different connectors and speeds, different cable length or UL and TÜV certification. Please feel free to contact us for customised offers!
"

Kabinet Køler

Producent
Varenummer
2452210
Model
NF-F12 iPPC-2000 IP67
Ean
4716123315407
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Omdrejningshastighed (min.)
450 rpm
Omdrejningshastighed (maks.)
2000 rpm
Støjniveau (høj hastighed)
29,7 dB
Luftstrøm
121,8 m³/t
Maksimalt lufttryk
3,94 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Ventilatorens støjniveau (maks.)
29,7 dB
Antal pr. pakke
1 stk
Blæser, hastighed (min.)
450 rpm
Blæser, hastighed (maks.)
2000 rpm
Ventilatorens middeltid til fejl (MTTF)
150000 t
Produktfarve
Sort, Brun
Materiale
Glasfiber
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet
Kode for international beskyttelse (IP)
IP67
Strømforbrug (typisk)
1,2 W
Spænding
12 V
Nominel strøm
0,1 A
Blæser, spænding
12 V
Bredde
120 mm
Dybde
25 mm
Højde
120 mm
Ventilator dimensioner (BxDxH)
120 x 120 x 25 mm
Kabellængde
0,4 m
Garantiperiode
6 År
Pakketype
Kasse
Skruer inkluderet
Ja

Præstation

Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Omdrejningshastighed (min.)
450 rpm
Omdrejningshastighed (maks.)
2000 rpm
Støjniveau (høj hastighed)
29,7 dB
Luftstrøm
121,8 m³/t
Maksimalt lufttryk
3,94 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Ventilatorens støjniveau (maks.)
29,7 dB
Antal pr. pakke
1 stk
Blæser, hastighed (min.)
450 rpm
Blæser, hastighed (maks.)
2000 rpm
Ventilatorens middeltid til fejl (MTTF)
150000 t

Design

Produktfarve
Sort, Brun
Materiale
Glasfiber
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet
Kode for international beskyttelse (IP)
IP67

Strømstyring

Strømforbrug (typisk)
1,2 W
Spænding
12 V
Nominel strøm
0,1 A
Blæser, spænding
12 V

Vægt & størrelser

Bredde
120 mm
Dybde
25 mm
Højde
120 mm
Ventilator dimensioner (BxDxH)
120 x 120 x 25 mm
Kabellængde
0,4 m

Tekniske detaljer

Garantiperiode
6 År

Emballage indhold

Pakketype
Kasse
Skruer inkluderet
Ja
