Kabinet Køler - Noctua NF-F12 5V - Kabinet køler - 120mm - Brun - 22 dBA - NF-F12 5V
Varenummer: 2674886
NF-F12 5V
NF-F12 5V
NF-F12 5V
NF-F12 5V
NF-F12 5V

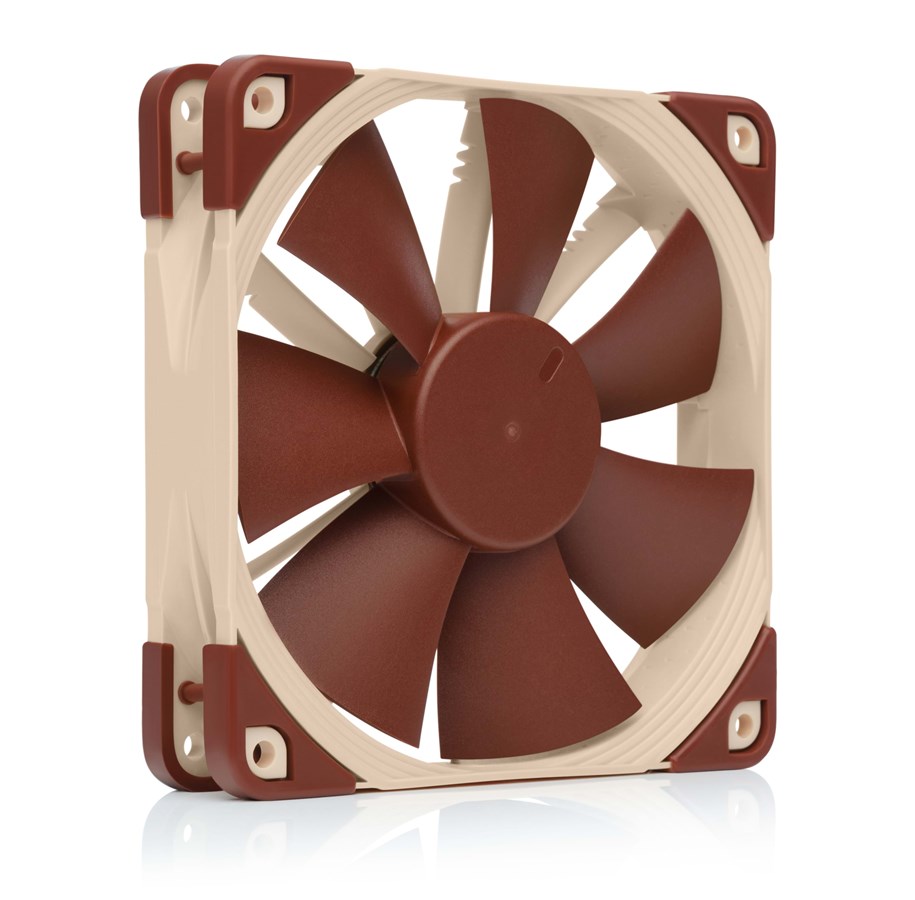

Noctua NF-F12 5V - Kabinet køler - 120mm - Brun - 22 dBA

Kabinet køler, størrelse: 120mm x 120mm x 25mm (HxBxD), støjniveau: 22.4 dBA, Air flow: 55 CFM, blæser RPM: 1500 ±10%, 3 pins bundkort tilslutning, 5 volt, brun

På lager
183,00 kr. 146,40 kr. ekskl. moms
Billigste fragt (privatkunde) 39,00 kr.
På lager – Levering i morgen (bestil inden kl. 22)

Lagerstatus i vores Pick-up Points

  • Aarhus (5 stk.)

    På lager, kan afhentes
  • København (0 stk.)

    Kan bestilles til afhentning - afvent derefter klarmelding via email

Award-winning NF-F12 design

Award-winning NF-F12 design

Having received more than 100 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
5V version

5V version

5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-F12 5V is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Focused Flow™ frame

Focused Flow™ frame

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches

Varying Angular Distance and Vortex Control Notches

The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf™ Impeller

Heptaperf™ Impeller

Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
Polarity protection

Polarity protection

As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.
SSO2 Bearing

SSO2 Bearing

The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
OmniJoin™ Adaptor Set

OmniJoin™ Adaptor Set

Many devices featuring 5V fans use proprietary fan headers, so the NF-F12 5V comes with Noctua’s OmniJoin adaptor set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-F12 5V to proprietary fan headers!
USB power adaptor cable

USB power adaptor cable

The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Producent
Varenummer
2674886
Model
NF-F12 5V
Ean
9010018100266
Til producentens hjemmeside
Produktbeskrivelse
Noctua NF-F12 5V - indsats med blæser
Produkttype
Indsats med blæser
Pakke Indhold
USB-kabel, OmniJoin Adaptor Set, forlængerkabel (30 cm), NA-AV1 anti-vibrationsmonteringer
Blæser diameter
120 mm
Blæser-højde
25 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
1500 rpm
Luftstrøm
55 cfm
Støjniveau
22.4 dBA
Stik
3-pins blæser-stikforbindelse
Egenskaber
Modsat polaritet-beskyttelse, Advanced Acoustic Optimisation (AAO), flow-accelerationskanaler, Inner Surface Microstructures
Producentgaranti
6 års garanti

Generelt

Produkttype
Indsats med blæser
Pakke Indhold
USB-kabel, OmniJoin Adaptor Set, forlængerkabel (30 cm), NA-AV1 anti-vibrationsmonteringer

Varmeafleder & blæser

Blæser diameter
120 mm
Blæser-højde
25 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
1500 rpm
Luftstrøm
55 cfm
Lufttryk
2.61 mm
Støjniveau
22.4 dBA
Stik
3-pins blæser-stikforbindelse
Egenskaber
Modsat polaritet-beskyttelse, Advanced Acoustic Optimisation (AAO), flow-accelerationskanaler, Inner Surface Microstructures

Diverse

MTBF (forventet tid mellem fejl)
150,000 time(r)
