Varenummer: 2393023

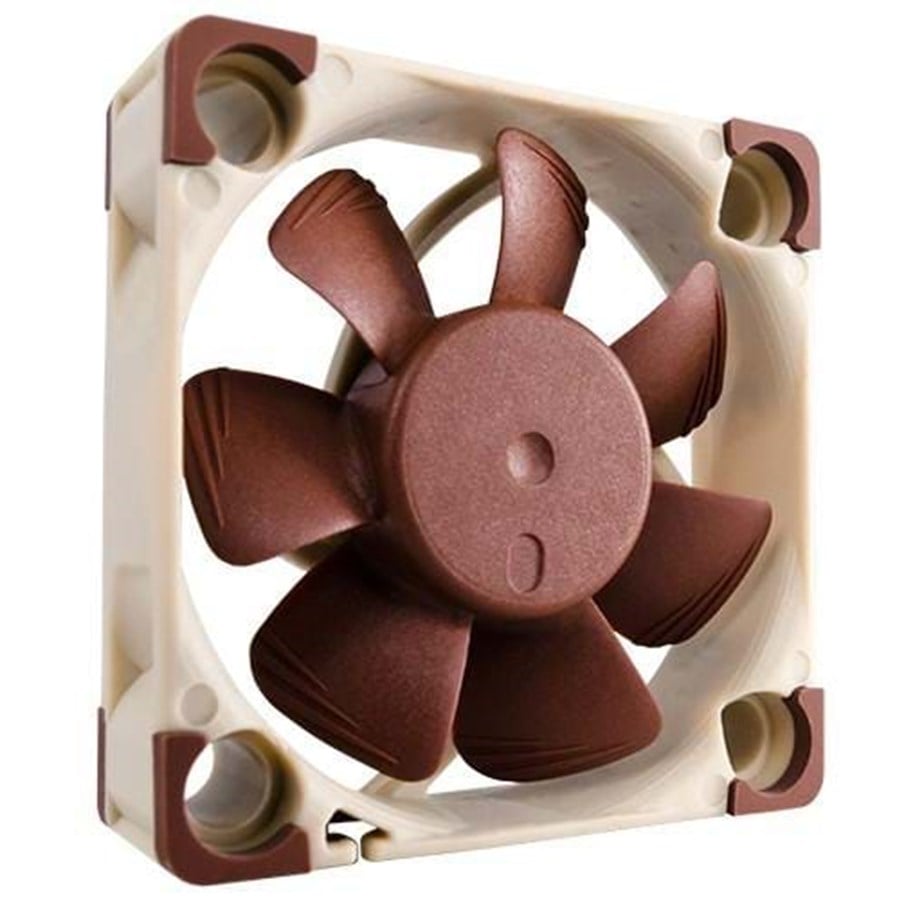

Noctua NF-A4x10 FLX - Kabinet køler - 40mm - Brun - 17 dBA

Kabinet køler, størrelse: 40mm x 40mm x 10mm (HxBxD), støjniveau: 17.9 dBA, Air flow: 4.82 CFM, blæser RPM: 4500 ±10%, 3 pins bundkort tilslutning, brun

Læs mere
119,00 kr. 95,20 kr. ekskl. moms
Billigste fragt (privatkunde) 39,00 kr.
Fjernlager, 5-6 dages levering

Lagerstatus i vores Pick-up Points

  • Aarhus (0 stk.)

    Ikke på lager

  • København (0 stk.)

    Ikke på lager

Featuring advanced aerodynamic design measures such as flow acceleration channels and Noctua's AAO frame, the NF-A4x10 FLX is a highly optimized, premium quality quiet fan in 40 x 10 mm size. Smooth Commutation Drive technology and Noctua's reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability.

Flow Acceleration Channels

Flow Acceleration Channels

The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
Reduced motor hub size

Reduced motor hub size

Thanks to its streamlined, compact motor design, the NF-A4x10's motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10's superior airflow and pressure performance.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A4x10 remarkably quiet even at very close distances.
SSO2 Bearing

SSO2 Bearing

The NF-A4x10 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Low-Noise Adaptor for full flexibility

Low-Noise Adaptor for full flexibility

The NF-A4x10 FLX (Flexibility) is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 4500 to 3700rpm so that it can be fine-tuned for superior airflow or maximum quietness.
3 to 2-pin Adaptor and Polarity Protection

3 to 2-pin Adaptor and Polarity Protection

The NF-A4x10 comes with an adaptor from 3-pin Molex to the 2-pin connectors used on many graphics cards or network and storage devices. An integrated diode provides polarity protection on 2-pin connections.
OmniJoin™ Adaptor Set

OmniJoin™ Adaptor Set

Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x10 to proprietary fan headers!
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x10 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.

Producent
Varenummer
2393023
Model
NF-A4x10 FLX
Ean
4716123314691
Til producentens hjemmeside
Produktbeskrivelse
Noctua NF-A4x10 FLX - indsats med blæser
Produkttype
Indsats med blæser
Pakke Indhold
Lav-støjsadapter (L.N.A.), 3-pin til 2-pin strømadapter, OmniJoin Adaptor Set
Blæser diameter
40 mm
Blæser-højde
10 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
4500 opm
Luftstrøm
4.82 cfm
Støjniveau
17.9 dBA
Rated Voltage
12 V
Dimensioner (B x D x H)
4 cm x 4 cm x 1 cm

Generelt

Produkttype
Indsats med blæser
Pakke Indhold
Lav-støjsadapter (L.N.A.), 3-pin til 2-pin strømadapter, OmniJoin Adaptor Set
Bredde
4 cm
Dybde
4 cm
Højde
1 cm

Varmeafleder & blæser

Blæser diameter
40 mm
Blæser-højde
10 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
4500 opm
Luftstrøm
4.82 cfm
Lufttryk
1.78 mm
Støjniveau
17.9 dBA
Rated Voltage
12 V
Strømforbrug
0.6 W

Diverse

MTBF (forventet tid mellem fejl)
150,000 time(r)
