Varenummer: 2674879

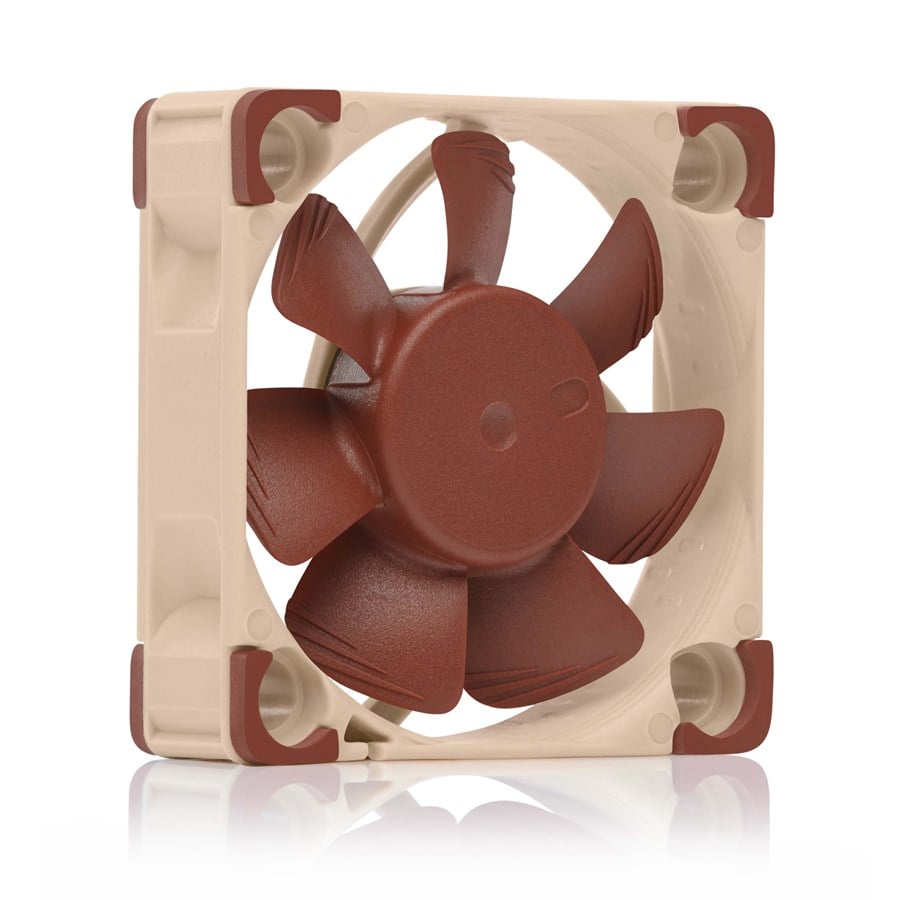

Noctua NF-A4x10 12V PWM - Kabinet køler - 40mm - Brun - 20 dBA

Kabinet køler, størrelse: 40mm x 40mm x 10mm (HxBxD), støjniveau: 12.9 - 19.6 dBA, Air flow: CFM, blæser RPM: 1000 - 5000 ±10%, PWM kontrolleret, 4 pins bundkort tilslutning, brun

Læs mere
På lager
113,00 kr. 90,40 kr. ekskl. moms
Billigste fragt (privatkunde) 39,00 kr.
På lager - 1-2 dages levering

Lagerstatus i vores Pick-up Points

  • Aarhus (11 stk.)

    På lager, kan afhentes

  • København (0 stk.)

    Bestil nu og afhent tirsdag efter kl. 12

"Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua's AAO frame, the NF-A4x10 is an award-winning, premium-quality quiet fan in size 40x10mm. The PWM version sports Noctua's custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor as well as an OmniJoin Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua's trusted premium quality make it an elite choice for the highest demands.

Award-winning NF-A4x10 design

Having received more than 50 awards and recommendations from the international press, Noctua’s NF-A4x10 has become a proven premium choice for 40mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

Reduced motor hub size

Thanks to its streamlined, compact motor design, the NF-A4x10's motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10's superior airflow and pressure performance.

Flow Acceleration Channels

The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A4x10 PWM uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.

SSO2 Bearing

The NF-A4x10 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Low-Noise Adaptor

The NF-A4x10 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 5000 to 3700rpm. The L.N.A. can be used either to run the fan at a fixed speed of 3700rpm or to cap the maximum speed when using automatic PWM control.

OmniJoin™ Adaptor Set

Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x10 to proprietary fan headers!

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second fan to the same PWM fan header for automatic control.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x10 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.
"

Producent
Varenummer
2674879
Model
NF-A4x10 PWM
Ean
9010018100440
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
4 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
1000 rpm
Omdrejningshastighed (maks.)
5000 rpm
Støjniveau (høj hastighed)
19,6 dB
Støvniveau med LNA (maks.)
12,9 dB
Luftstrøm
8,9 m³/t
Luftgennemstrømning med LNA (maks.)
6,6 m³/t
Maksimalt lufttryk
1,95 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Produktfarve
Beige, Rød
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet
Strømforsyning
0,48 W
Spænding
12 V
Strøm (maks.)
0,04 A
Ventilator dimensioner (BxDxH)
40 x 40 x 10 mm
Kabellængde
0,3 m
Pakkebredde
150 mm
Pakkedybde
34 mm
Pakkehøjde
210 mm
Pakkevægt
180 g
Skruer inkluderet
Ja
Antal skruer
4
Lyddæmpende adapter (LNA)
Ja
Middeltid til fejl (MTTF)
150000 t
Harmoniseret systemkode (HS)
84733080
Hovedkassens bredde (udvendigt)
390 mm
Hovedkassens længde (udvendigt)
360 mm
Hovedkassen højde (udvendigt)
390 mm
Produkter pr. hovedkasse (udvendigt)
36 stk

Præstation

Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
4 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
1000 rpm
Omdrejningshastighed (maks.)
5000 rpm
Støjniveau (høj hastighed)
19,6 dB
Støvniveau med LNA (maks.)
12,9 dB
Luftstrøm
8,9 m³/t
Luftgennemstrømning med LNA (maks.)
6,6 m³/t
Maksimalt lufttryk
1,95 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)

Design

Produktfarve
Beige, Rød
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet

Strømstyring

Strømforsyning
0,48 W
Spænding
12 V
Strøm (maks.)
0,04 A

Vægt & størrelser

Ventilator dimensioner (BxDxH)
40 x 40 x 10 mm
Kabellængde
0,3 m
Pakkebredde
150 mm
Pakkedybde
34 mm
Pakkehøjde
210 mm
Pakkevægt
180 g

Emballage indhold

Skruer inkluderet
Ja
Antal skruer
4
Lyddæmpende adapter (LNA)
Ja

Andre funktioner

Middeltid til fejl (MTTF)
150000 t

Logistik data

Harmoniseret systemkode (HS)
84733080
Hovedkassens bredde (udvendigt)
390 mm
Hovedkassens længde (udvendigt)
360 mm
Hovedkassen højde (udvendigt)
390 mm
Produkter pr. hovedkasse (udvendigt)
36 stk
