Varenummer: 2626227

Noctua NF-A14 PWM chromax.black.swap - Kabinet køler - 140mm - Sort - 25 dBA

Kabinet køler, størrelse: 140mm x 140mm x 25mm (HxBxD), støjniveau: max 24.6 dBA, Air flow: op til 84.5 CFM, blæser RPM: 300 - 1500 ±10%, PWM kontrolleret, 4 pins bundkort tilslutning, sort

Læs mere
På lager
215,00 kr. 172,00 kr. ekskl. moms
Billigste fragt (privatkunde) 39,00 kr.
På lager – Levering i morgen (bestil inden kl. 22)

Lagerstatus i vores Pick-up Points

  • Aarhus (15+ stk.)

    På lager, kan afhentes

  • København (0 stk.)

    Kan bestilles til afhentning - afvent derefter klarmelding via email

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-A14 is one of Noctua’s most renowned and popular 140mm fans. Its square frame makes it ideal for use on water cooling radiators or as a case fan. The chromax.black.swap edition combines the NF-A14’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A14 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

Image Gallery


Details

Award-winning NF-A14 design

Award-winning NF-A14 design

Having received more than 100 awards and recommendations from the international press, Noctua's NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
chromax.black.swap edition

chromax.black.swap edition

Maximising colour choices, Noctua’s chromax.black.swap edition fans can be colour-customised using the included swappable anti-vibration pads as well as optional anti-vibration mounts and cables. This makes them ideal for enthusiasts looking for true premium-grade fans that can be colour-coordinated with popular build themes such as all black, black & white or black & red.
Swappable anti-vibration pads in 6 colours

Swappable anti-vibration pads in 6 colours

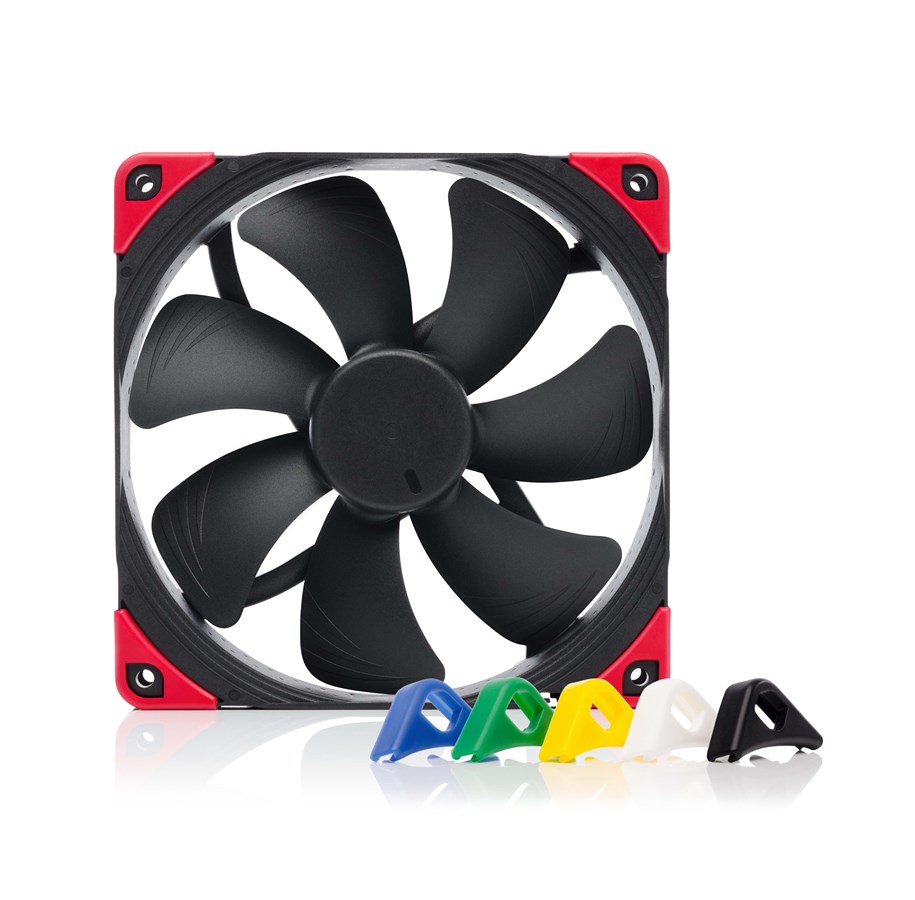

The NF-A14 PWM chromax.black.swap comes with 4 black, white, red, blue, green and yellow NA-AVP1 anti-vibration pads respectively. By combining the various colours with black or leaving off the pads on one side, the fan can be coordinated with most popular build colour schemes out of the box. Additional NA-SAVP1 sets for outfitting both sides in one colour can be purchased separately.
Optional coloured cables

Optional coloured cables

Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.
Optional coloured anti-vibration mounts

Optional coloured anti-vibration mounts

To complement the coloured anti-vibration pads included with the fans, users can purchase chromax line NA-SAV2 anti-vibration mounts that enable the convenient, quick and vibration-free installation of fans in standard mounting holes for case fans.
Square 140mm frame

Square 140mm frame

The NF-A14's square 140mm frame with 140mm mounting holes (124.5mm spacing) makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.
Flow Acceleration Channels

Flow Acceleration Channels

The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
SSO2 bearing

SSO2 bearing

The chromax line fans feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the chromax edition fans sport a CNC milled bearing shell made entirely from brass.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the chromax edition fans use Noctua’s custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the chromax edition models feature an MTBF of more than 150,000 hours rating and come with a full 6-year manufacturer's warranty.

Kabinet Køler

Strømkabel (intern)

Producent
Varenummer
2626227
Model
NF-A14 PWM CH.BK.S
Ean
9010018100426
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
14 cm
Omdrejningshastighed (min.)
300 rpm
Omdrejningshastighed (maks.)
1500 rpm
Luftstrøm
140,2 m³/t
Maksimalt lufttryk
2,08 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Antal pr. pakke
1 stk
Blæser, hastighed (min.)
300 rpm
Blæser, hastighed (maks.)
1500 rpm
Ventilatorens middeltid til fejl (MTTF)
150000 t
Produktfarve
Sort
Materiale
Metal
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet
Strømforbrug (typisk)
1,56 W
Spænding
12 V
Strøm (maks.)
0,13 A
Blæser, spænding
12 V
Bredde
140 mm
Dybde
140 mm
Højde
25 mm
Ventilator dimensioner (BxDxH)
140 x 140 x 25 mm
Garantiperiode
6 År
Pakketype
Kasse
Skruer inkluderet
Ja
Antal skruer
4

Præstation

Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
14 cm
Omdrejningshastighed (min.)
300 rpm
Omdrejningshastighed (maks.)
1500 rpm
Luftstrøm
140,2 m³/t
Maksimalt lufttryk
2,08 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Antal pr. pakke
1 stk
Blæser, hastighed (min.)
300 rpm
Blæser, hastighed (maks.)
1500 rpm
Ventilatorens middeltid til fejl (MTTF)
150000 t

Design

Produktfarve
Sort
Materiale
Metal
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet

Strømstyring

Strømforbrug (typisk)
1,56 W
Spænding
12 V
Strøm (maks.)
0,13 A
Blæser, spænding
12 V

Vægt & størrelser

Bredde
140 mm
Dybde
140 mm
Højde
25 mm
Ventilator dimensioner (BxDxH)
140 x 140 x 25 mm

Tekniske detaljer

Garantiperiode
6 År

Emballage indhold

Pakketype
Kasse
Skruer inkluderet
Ja
Antal skruer
4
