Varenummer: 3224036

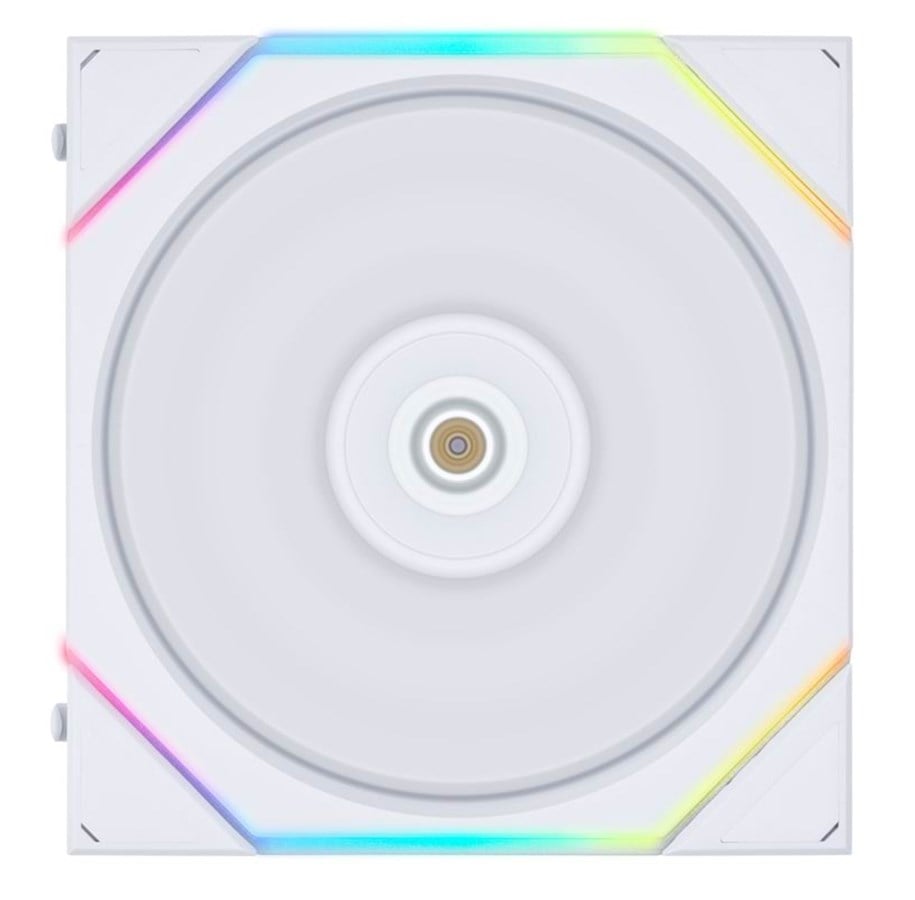

Lian Li UNI FAN TL 140 - Kabinet køler - 140mm - Hvid med RGB - 29 dBA
Kabinet køler, 144mm x 140mm x 28mm (højde x bredde x dybde), støjniveau: max 29 dBa, lufttryk max 103.9 CFM, max statisk luftryk 2.34 mmH2O, omdrejningshastighed: 200 - 1800 ±10% RPM, PWM kontrolleret, lejre type: Fluid Dynamic Bearing (FDB), bundkort tilslutning: (via hub) 4-pins & RGB tilslutning: (via hub) 3-pins (5 volt), kombineret PWM & RGB tilslutning: 7-pins, addressable RGB LED lys, kan sammenkobles (daisy-chain): ja - via stik på rammen, kræver særlig hub: Lian Li TL HUB, kontrolleret af: ASUS AURA / Asrock Polychrome Sync / Gigabyte Fusion / MSI Mystic Light, farve: hvid med RGB.
• Daisy-chained with less cable clutter
• Lian Li L-Connect 3 software to control RGB effects
• Addressable RGB for cool lighting effects with motherboard software and synced with other RGB products
Billigste fragt (privatkunde) 39,00 kr.
Bestillingsvare, leveringstiden kan ikke oplyses
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager
AVAILABLE IN TWO COLORS/ TWO SIZES/ TWO ORIENTATIONS
Elevate your PC setup with UNI FAN TL LCD black and white fans, available in 120mm and 140mm sizes with normal and reverse blades.
NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.
Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.
Seamless Connection
Featuring both male and female ends, the cable can be connected to both sides of the fan, providing enhanced flexibility and ease of installation.
Well-Adapted for all Configuration
Besides the removing interlocking key, the TL fans includes connection covers the exposed connections at the end to prevent short circuits while improving compatibility.
10 fans in a Row and up to 16 fans
Enable connection of up to 10 fans to a controller port using the extension cable, which offers ability to create up to 4 clusters in a chain, with each cluster support a maximum of 4 fans for individual customization of fan RPM and lighting, allowing a truly personalized build setup such as having 3 fans on the top, 3 on the side, 3 on the bottom, and 1 on the rear.
Power till the end
Offering an extra power adapter in triple pack to connect to SATA for consistent fan speed and LED color throughout.
ENGINEERED MOTOR, STURDY STRUCTURE
UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high speeds.
ULTIMATE COOLING
Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures efficient airflow while minimizing acoustic levels for cooling.
CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.
SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.
DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.
SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.
SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.
TWO FANS, ONE CONTROLLER
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 7 TL LCD fans.
Elevate your PC setup with UNI FAN TL LCD black and white fans, available in 120mm and 140mm sizes with normal and reverse blades.
NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.
Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.
Seamless Connection
Featuring both male and female ends, the cable can be connected to both sides of the fan, providing enhanced flexibility and ease of installation.
Well-Adapted for all Configuration
Besides the removing interlocking key, the TL fans includes connection covers the exposed connections at the end to prevent short circuits while improving compatibility.
10 fans in a Row and up to 16 fans
Enable connection of up to 10 fans to a controller port using the extension cable, which offers ability to create up to 4 clusters in a chain, with each cluster support a maximum of 4 fans for individual customization of fan RPM and lighting, allowing a truly personalized build setup such as having 3 fans on the top, 3 on the side, 3 on the bottom, and 1 on the rear.
Power till the end
Offering an extra power adapter in triple pack to connect to SATA for consistent fan speed and LED color throughout.
ENGINEERED MOTOR, STURDY STRUCTURE
UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high speeds.
ULTIMATE COOLING
Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures efficient airflow while minimizing acoustic levels for cooling.
CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.
SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.
DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.
SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.
SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.
TWO FANS, ONE CONTROLLER
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 7 TL LCD fans.
Køling og blæser
-
Lian Li UNI HUB for TL series - Black
Bestillingsvare, leveringstiden kan ikke oplyses229,00 kr.
Producent
Varenummer
3224036
Model
14TL1W
Ean
4718466014481
Til producentens hjemmeside
Produktbeskrivelse
Lian Li UNI FAN TL - indsats med blæser
Produkttype
Indsats med blæser
Pakke Indhold
4 x skruer, controller-kabel, forlængerkabel
Farve
Hvid
Blæser diameter
140 mm
Blæser-højde
28 mm
Blæser med kugleleje
Strømningsdynamisk leje
Omdrejningshastighed
200 - 1800 rpm
Luftstrøm
103.9 cfm
Støjniveau
29 dBA
Stik
4-pins blæser-stikforbindelse
Rated Voltage
12 V
Egenskaber
L-Connect 3-kompatibel, skyd ind/sammenlåsende mekanisme, serieforbindelsesdesign, forstørret uendelighedsspejl ventilator, 2 RGB zoner, anti-vibrationpolstring, adresserbar RGB LED, Metal Bearing Shell
Produktmateriale
Flydende krystalpolymer (LCP), polyamid (PA66)
Dimensioner (B x D x H)
14.4 cm x 14 cm x 2.8 cm
Generelt
Produkttype
Indsats med blæser
Produktmateriale
Flydende krystalpolymer (LCP), polyamid (PA66)
Pakke Indhold
4 x skruer, controller-kabel, forlængerkabel
Bredde
14.4 cm
Dybde
14 cm
Højde
2.8 cm
Farve
Hvid
Varmeafleder & blæser
Blæser diameter
140 mm
Blæser-højde
28 mm
Blæser med kugleleje
Strømningsdynamisk leje
Omdrejningshastighed
200 - 1800 rpm
Luftstrøm
103.9 cfm
Lufttryk
2.34 mm
Støjniveau
29 dBA
Stik
4-pins blæser-stikforbindelse
Rated Voltage
12 V
Operations Voltage
5 - 12 V
Strømforbrug
4.6 W
Egenskaber
L-Connect 3-kompatibel, skyd ind/sammenlåsende mekanisme, serieforbindelsesdesign, forstørret uendelighedsspejl ventilator, 2 RGB zoner, anti-vibrationpolstring, adresserbar RGB LED, Metal Bearing Shell
