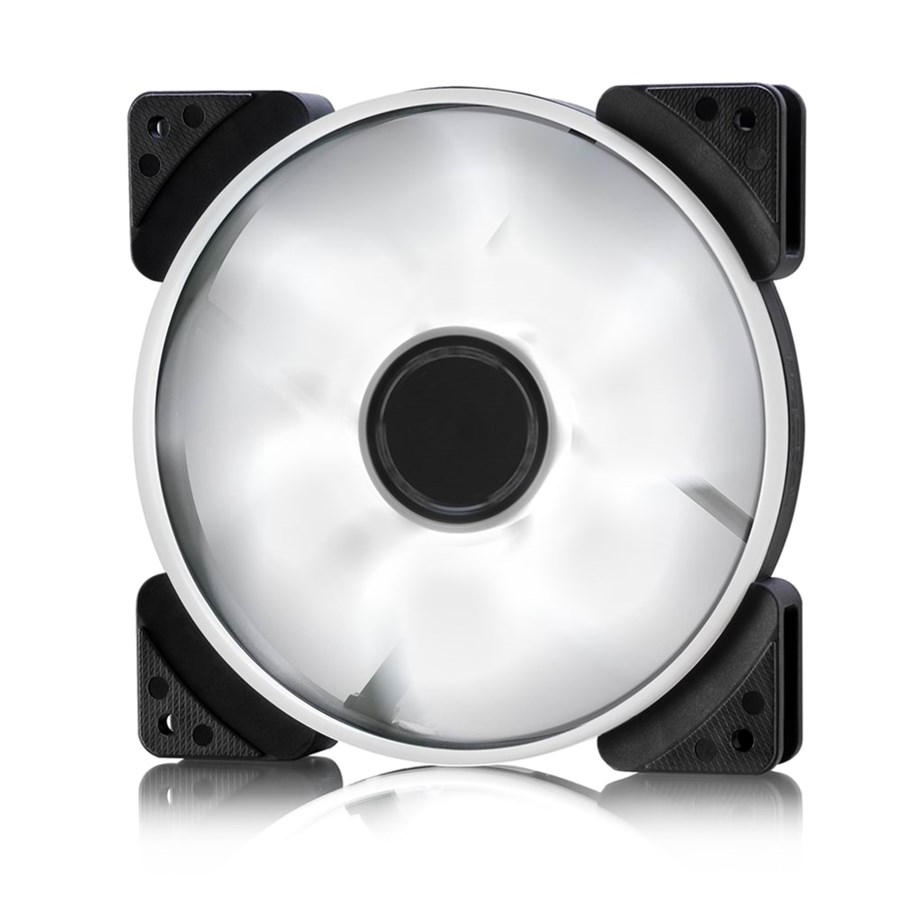

Fractal Design Prisma SL-14 - White - Kabinet køler - 140mm - Hvid - 20 dBA
Kabinet køler, størrelse: 140mm x 140mm x 25mm (HxBxD), støjniveau: 19.4 dBA, Air flow: 63.33 CFM, blæser PRM: 1000 ±10%, 3 pins bundkort tilslutning, sort ramme med hvidt lys
Fractal Design Prisma SL Series fans allow your system to truly shine. Six hub-mounted LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
As with any Fractal Design fan, silence remains a central focus with premium LLS bearings as standard the entire series, ensuring Prisma is seen, not heard.
Prisma’s striking selection of colors includes red, green, blue and white with a choice of 120mm and 140mm sizes to make any build shine brilliantly.
Key features
- Six vibrantly colored hub-mounted LEDs
- Specially designed fan blades and outer ring produce a uniform glow
- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
- Easily concealed black stealth ribbon cable
- Available colors include Red, Green, Blue, and White
- 120mm and 140mm sizes available
Specifications
Size | 140 x 140 x 25 mm |
Blade color | Semi-opaque white |
Frame color | Black |
LED type | Single color |
Screw hole pattern | 125 x 125 mm |
Power connector | 3-pin |
Bearing | LLS |
Number of blades | 7 |
Rotational speed | 1000 RPM |
Noise level | 19.4 dB(A) |
Airflow (CFM) | 63.33 CFM |
Airflow (m3/h) | 107.60 m3/h |
Static pressure | 1.07 mmH2O |
Fan input power | 3.0W |
Fan max input current | 0.25A |
Fan input voltage | 12V |
Fan starting voltage | 6V |
LED input power | 1.80W |
LED max input current | 0.15A |
LED input voltage | 12V |
MTBF | 100,000 hrs |
Fan weight | 168 g |
Package weight | 194 g |
Cable length | 500 mm ±10 mm |
Cable type | Black ribbon cable |
Packaging dimensions (Including hanging tab) | 202 x 142 x 26 mm |
Packaging dimensions (Excluding hanging tab) | 167 x 142 x 26 mm |
Package contents
- Prisma SL-14 140mm fan
- 4 x fan screws
