Varenummer: 2681858

ATEN CS1914 KVMP Switch

KVM / audio / USB switch, 4 x KVM / audio / USB, 1 lokalbruger, desktop

2.409,00 kr. 1.927,20 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 2-3 dages levering

Lagerstatus i vores Pick-up Points

  • Aarhus (0 stk.)

    Ikke på lager
  • København (0 stk.)

    Ikke på lager
Oplader medfølger
Charger included

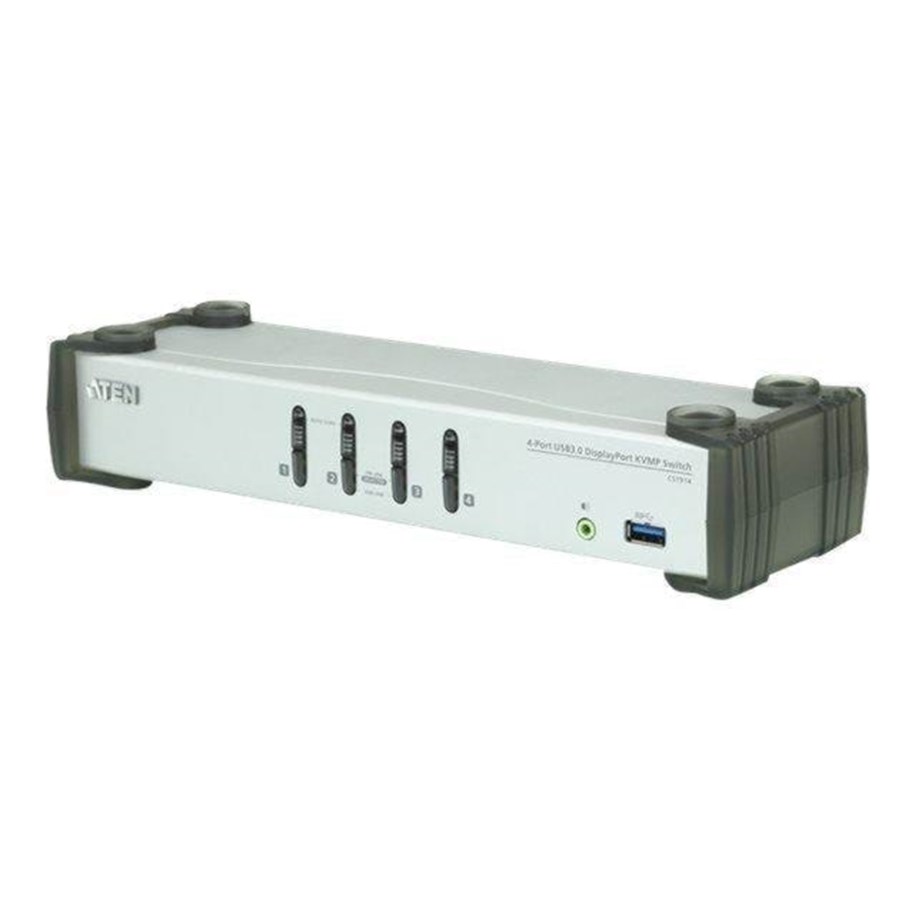

The ATEN CS1914 4-port USB 3.0 DisplayPort KVMP Switch provides the innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations. As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods - front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers. ATEN's unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a printer server, modem or splitter. With its rich feature set, the CS1914 is designed to surpass all requirements for video post-production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1914 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.

Producent
Varenummer
2681858
Model
CS1914
Ean
4719264645044
Til producentens hjemmeside
Antal kontrollerede computere
4
Tastatur porttype
USB
Mus porttype
USB
Video porttype
DisplayPort
Konsol porte
USB A
Antal konsol USB porte
2
USB stik
Ja
USB-stik type
USB Type-A, USB Type-B
USB version
3.2 Gen 1 (3.1 Gen 1)
Lydforbindelse
Ja
Udgange til hovedtelefoner
6
DC-in-stik
Ja
Maksimal opløsning
3840 x 2160 pixel
Automatisk skift
Ja
Skanningsinterval
1,5,99 sek./side
HDCP
Ja
Understøtter hot-plug
Ja
Stativ-montering
Ingen
Produktfarve
Sort, Grå
Husmateriale
Metal, Plast
LED-indikatorer
Status, USB
Trykknap
Ja
Indbygget skærm
Ingen
Udgangsspænding
5 V
Strømforbrug (typisk)
3,3 W
Ekstern strømadapter
Ja
Understøttede Mac-operativsystemer
Ja
Compliance-certifikater
RoHS
Driftstemperatur (T-T)
0 - 50 °C
Opbevaringstemperatur (T-T)
-20 - 60 °C
Relativ luftfugtighed ved drift (H-H)
0 - 80%
Bredde
88 mm
Dybde
270 mm
Højde
55,5 mm
Vægt
910 g
Kabler inkluderet
Lyd (3ˌ5 mm), DisplayPort, USB
Brugervejledning
Ja
AC-adapter inkluderet
Ja
Harmoniseret systemkode (HS)
85176200

Porte & Grænseflader

Antal kontrollerede computere
4
Tastatur porttype
USB
Mus porttype
USB
Video porttype
DisplayPort
Konsol porte
USB A
Antal konsol USB porte
2
USB stik
Ja
USB-stik type
USB Type-A, USB Type-B
USB version
3.2 Gen 1 (3.1 Gen 1)
Lydforbindelse
Ja
Udgange til hovedtelefoner
6
DC-in-stik
Ja

Præstation

Maksimal opløsning
3840 x 2160 pixel
Automatisk skift
Ja
Skanningsinterval
1,5,99 sek./side
HDCP
Ja
Understøtter hot-plug
Ja

Design

Stativ-montering
Ingen
Produktfarve
Sort, Grå
Husmateriale
Metal, Plast
LED-indikatorer
Status, USB
Trykknap
Ja

Display

Indbygget skærm
Ingen

Strømstyring

Udgangsspænding
5 V
Strømforbrug (typisk)
3,3 W
Ekstern strømadapter
Ja

Systemkrav

Understøttede Mac-operativsystemer
Ja

Bæredygtighed

Compliance-certifikater
RoHS

Driftsbetingelser

Driftstemperatur (T-T)
0 - 50 °C
Opbevaringstemperatur (T-T)
-20 - 60 °C
Relativ luftfugtighed ved drift (H-H)
0 - 80%

Vægt & størrelser

Bredde
88 mm
Dybde
270 mm
Højde
55,5 mm
Vægt
910 g

Emballage indhold

Kabler inkluderet
Lyd (3ˌ5 mm), DisplayPort, USB
Brugervejledning
Ja
AC-adapter inkluderet
Ja

Logistik data

Harmoniseret systemkode (HS)
85176200

Ovenstående informationer/specifikationer kan løbende ændres. I tilfælde af trykfejl vedrørende pris eller udsolgte varer bestræber vi os på hurtigst muligt at opdatere siden. Hvis en pris er åbenlyst forkert, er Proshop ikke forpligtet til at levere det pågældende produkt til den forkerte pris. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som virker misvisende.
