Varenummer: 3212025
Lenovo ThinkSystem 940-8e
Styreenhed til lagring (RAID), 8 Kanal, SATA / SAS 12Gb/s, RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, PCIe 4.0 x8, for ThinkSystem SR630 V2; SR645; SR650 V2; SR665; SR670 V2; SR850 V2; SR860 V2; ST650 V2
20.460,00 kr.
16.368,00 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 1-2 måneders levering
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager

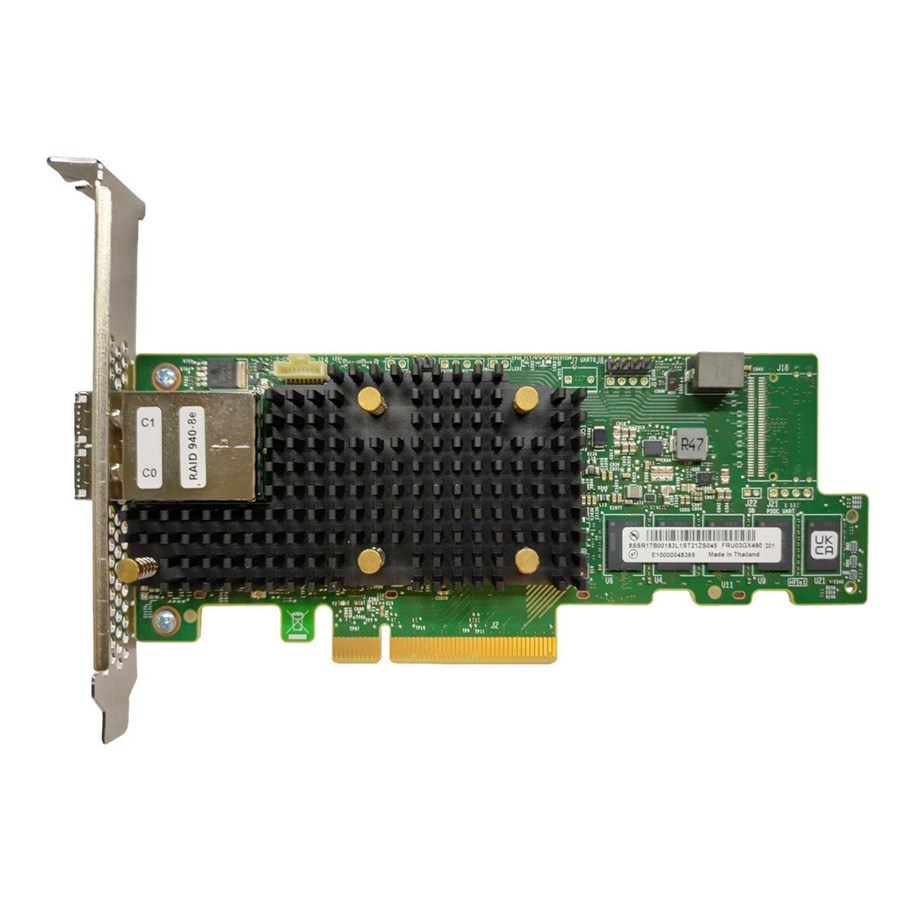

The Lenovo ThinkSystem 940-8e storage controller redefines data storage efficiency and reliability. Designed for high-demand systems, it features SAS 12 Gb/s connectivity with two external connectors, ensuring high-speed data transfers and system scalability. With support for multiple RAID levels, it offers flexible options for optimizing data redundancy and performance. The Broadcom SAS3908 processor, complemented by a 4 GB cache, delivers exceptional data processing speeds up to 12 Gb/s, making it ideal for environments requiring fast and reliable data access. Advanced data protection technologies, including CacheVault flash cache protection and SecureBoot, provide an added layer of security, safeguarding critical data against potential threats. Additionally, its ability to operate within a broad range of temperatures and humidity levels ensures dependable performance in various operating conditions. With compliance to multiple standards and support for essential features like FastPath and Online RAID Level Migration, the Lenovo ThinkSystem 940-8e is a comprehensive solution for enhancing data storage and security.
Producent
Varenummer
3212025
Model
4Y37A78836
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
Lenovo ThinkSystem 940-8e - styreenhed til lagring (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8
Enhedstype
Styreenhed til lagring (RAID) - indstikskort
Bustype
PCIe 4.0 x8
Interface
SATA / SAS 12Gb/s
Dataoverførselshastighed
12 Gbit/s
Buffer størrelse
4 GB
Understøttede enheder
Harddisk, diskarray (RAID), solid state drev
Antal kanaler
8
RAID-niveau
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Systemkrav
SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP3 with Xen, Microsoft Windows Server 2019, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Ubuntu 20.04 LTS, Red Hat Enterprise Linux 7.8, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Ubuntu 18.04.5 LTS, VMware vSphere Hypervisor (ESXi) 6.7 U3, VMware vSphere Hypervisor (ESXi) 7.0 U2, VMware vSphere Hypervisor (ESXi) 7.0 U3, Red Hat Enterprise Linux 9.0
Designet for
Storage D1212; D1224; D3284; ThinkSystem SR530; SR550; SR570; SR590; SR630; SR630 V2; SR635; SR645; SR650; SR650 V2; SR655; SR665; SR670; SR670 V2; SR850; SR850 V2; SR850P; SR860; SR860 V2; SR950; ST550; ST650 V2
Generelt
Enhedstype
Styreenhed til lagring (RAID) - indstikskort
Host Bus
PCIe 4.0 x8
Controller for lagring
Interface
SATA / SAS 12Gb/s
Dataoverførselshastighed
12 Gbit/s
Buffer størrelse
4 GB
Understøttede enheder
Harddisk, diskarray (RAID), solid state drev
Antal kanaler
8
RAID-niveau
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Processor
Broadcom SAS3908
Ekspansion / Konnektivitet
Interface
2 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (ekstern)
Diverse
Egenskaber
Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), SecureBoot, CacheVault flash cache-beskyttelse, Disk Data Format (DDF) support, S.M.A.R.T. support, TRIM-support, FastPath, SafeStore, UNMAP-support, konsistenstjek, hurtig initialisering, Patrol Read, varm reservesupport
Overensstemmelsesstandarder
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950
Programmer / Systemkrav
OS nødvendig
SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP3 with Xen, Microsoft Windows Server 2019, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Ubuntu 20.04 LTS, Red Hat Enterprise Linux 7.8, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Ubuntu 18.04.5 LTS, VMware vSphere Hypervisor (ESXi) 6.7 U3, VMware vSphere Hypervisor (ESXi) 7.0 U2, VMware vSphere Hypervisor (ESXi) 7.0 U3, Red Hat Enterprise Linux 9.0
Miljømæssige parametre
Min. driftstemperatur
10 °C
Maks. driftstemperatur
55 °C
Fugtighedsgrad ved brug
5 - 90 % (ikke kondenserende)
Oplysninger om kompatibilitet
Designet for
Lenovo Storage D1212 4587
Lenovo Storage D1224 4587
Lenovo Storage D3284 6413
Lenovo ThinkSystem SR530 7X07, 7X08
Lenovo ThinkSystem SR550 7X03, 7X04
Lenovo ThinkSystem SR570 7Y02, 7Y03, 7Y04
Lenovo ThinkSystem SR590 7X98, 7X99
Lenovo ThinkSystem SR630 7X01, 7X02
Lenovo ThinkSystem SR630 V2 7Z70, 7Z71
Lenovo ThinkSystem SR635 7Y98, 7Y99
Lenovo ThinkSystem SR645 7D2X, 7D2Y
Lenovo ThinkSystem SR650 7X05, 7X06
Lenovo ThinkSystem SR650 V2 7Z72, 7Z73
Lenovo ThinkSystem SR655 7Y00, 7Z01
Lenovo ThinkSystem SR665 7D2V, 7D2W
Lenovo ThinkSystem SR670 7Y36, 7Y37
Lenovo ThinkSystem SR670 V2 7Z22, 7Z23
Lenovo ThinkSystem SR850 7X18, 7X19
Lenovo ThinkSystem SR850 V2 7D31, 7D32
Lenovo ThinkSystem SR850P 7D2F, 7D2G
Lenovo ThinkSystem SR860 7X69, 7X70
Lenovo ThinkSystem SR860 V2 7Z59, 7Z60
Lenovo ThinkSystem SR950 7X11, 7X12
Lenovo ThinkSystem ST550 7X09, 7X10
Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
Lenovo Storage D1224 4587
Lenovo Storage D3284 6413
Lenovo ThinkSystem SR530 7X07, 7X08
Lenovo ThinkSystem SR550 7X03, 7X04
Lenovo ThinkSystem SR570 7Y02, 7Y03, 7Y04
Lenovo ThinkSystem SR590 7X98, 7X99
Lenovo ThinkSystem SR630 7X01, 7X02
Lenovo ThinkSystem SR630 V2 7Z70, 7Z71
Lenovo ThinkSystem SR635 7Y98, 7Y99
Lenovo ThinkSystem SR645 7D2X, 7D2Y
Lenovo ThinkSystem SR650 7X05, 7X06
Lenovo ThinkSystem SR650 V2 7Z72, 7Z73
Lenovo ThinkSystem SR655 7Y00, 7Z01
Lenovo ThinkSystem SR665 7D2V, 7D2W
Lenovo ThinkSystem SR670 7Y36, 7Y37
Lenovo ThinkSystem SR670 V2 7Z22, 7Z23
Lenovo ThinkSystem SR850 7X18, 7X19
Lenovo ThinkSystem SR850 V2 7D31, 7D32
Lenovo ThinkSystem SR850P 7D2F, 7D2G
Lenovo ThinkSystem SR860 7X69, 7X70
Lenovo ThinkSystem SR860 V2 7Z59, 7Z60
Lenovo ThinkSystem SR950 7X11, 7X12
Lenovo ThinkSystem ST550 7X09, 7X10
Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
