Varenummer: 3183514

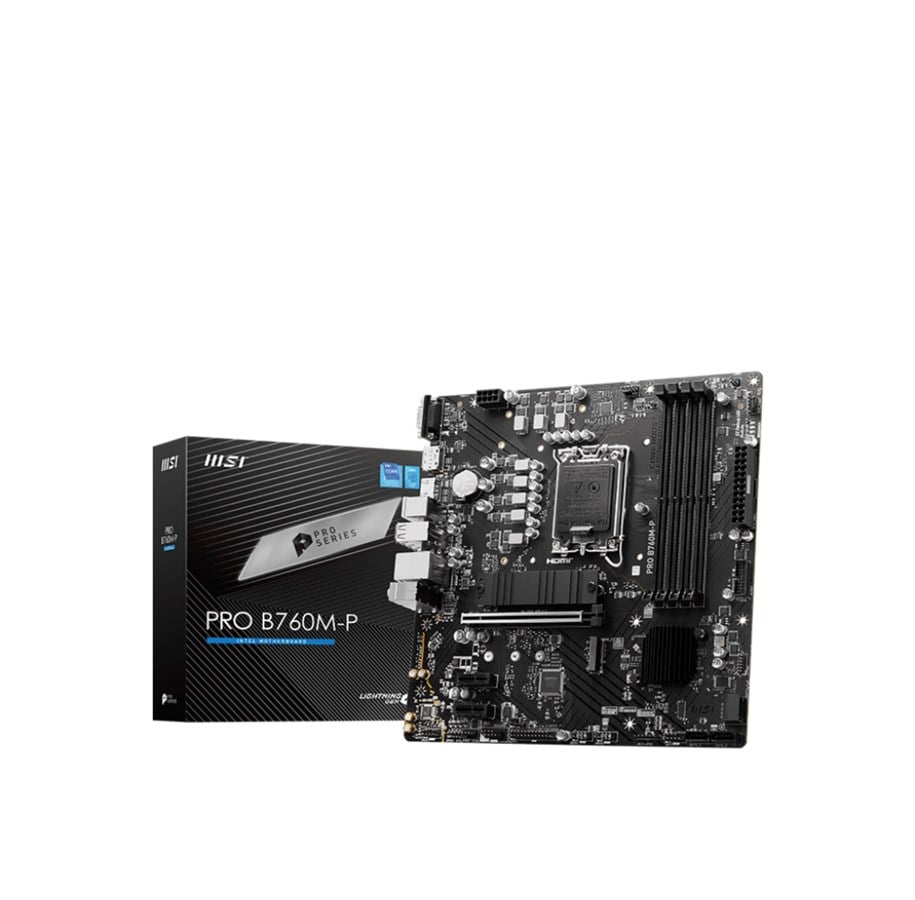

MSI PRO B760M-P Bundkort - Intel B760 - Intel LGA1700 - DDR5 RAM - Micro-ATX
Bundkort, micro-ATX, LGA1700 sokkel, B760 Chipset, USB 3.2 Gen 1, USB-C 3.2 Gen2, Gigabit LAN, onboard grafik (CPU påkrævet), HD Audio (8-kanaler)
Ved køb medfølger:
Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk
Værdi 299,00 kr.Billigste fragt (privatkunde) 39,00 kr.
Bestillingsvare, 7-8 dages levering
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager
The MSI PRO B760M-P motherboard is designed for versatility and performance, making it suitable for various computing needs. It supports DDR5 SDRAM with speeds up to 6800 MHz when overclocked, ensuring swift and reliable memory performance. With multiple expansion slots including 4 DIMM slots and a variety of interfaces such as USB 3.2 Gen 1 and USB-C 3.2 Gen 2, this motherboard provides ample connectivity for peripherals and storage options, accommodating modern user demands.
Equipped with audio capabilities via the Realtek ALC897 codec, it delivers high definition audio with 8-channel support, enhancing the overall multimedia experience. The MSI Audio Boost and Debug LED features contribute to efficient troubleshooting and audio enhancement. The motherboard is built with sturdy components like MSI Steel Armor and M.2 Shield FROZR, ensuring durability and support for high-performance components. The PRO B760M-P is a choice for building a reliable and efficient system that meets both gaming and productivity needs.
Equipped with audio capabilities via the Realtek ALC897 codec, it delivers high definition audio with 8-channel support, enhancing the overall multimedia experience. The MSI Audio Boost and Debug LED features contribute to efficient troubleshooting and audio enhancement. The motherboard is built with sturdy components like MSI Steel Armor and M.2 Shield FROZR, ensuring durability and support for high-performance components. The PRO B760M-P is a choice for building a reliable and efficient system that meets both gaming and productivity needs.
Producent
Varenummer
3183514
Model
PRO B760M-P
Ean
4711377086578
Til producentens hjemmeside
Produktbeskrivelse
MSI PRO B760M-P - bundkort - micro ATX - LGA1700 sokkel - B760
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B760
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Generelt
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B760
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Understøttet RAM
Maks. størrelse
128 GB
Teknologi
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8111H
Netværks interfaces
Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 4.0 x1
2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
4 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 4.0 x1
2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x M.2
PCIe 4.0 -stikforbindelser: 2 x M.2
Interface
1 x HDMI
1 x DisplayPort
1 x VGA
4 x USB 2.0
1 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 2
1 x LAN (Gigabit Ethernet)
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x DisplayPort
1 x VGA
4 x USB 2.0
1 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 2
1 x LAN (Gigabit Ethernet)
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x seriel - intern stik
1 x audio - intern stik
1 x SPI - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x seriel - intern stik
1 x audio - intern stik
1 x SPI - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-egenskaber
MSI ClickBIOS 5, M-Flash
Hardware egenskaber
Debug LED, MSI Memory Boost, MSI Steel Armor, MSI Audio Boost, M.2 Shield FROZR, MSI Core Boost
Diverse
Udstyr inkluderet
IO-skjold, 2 x M.2 skrue/standoff-sæt
Medfølgende ledninger
1 x Seriel ATA kabel
Med software
MSI Center, AIDA64 Extreme (60 dages prøvetid)
Overensstemmelsesstandarder
DisplayPort 1.4, FCC Part 15 Class B, WEEE
Bredde
24.384 cm
Dybde
24.384 cm
