Varenummer: 2803288

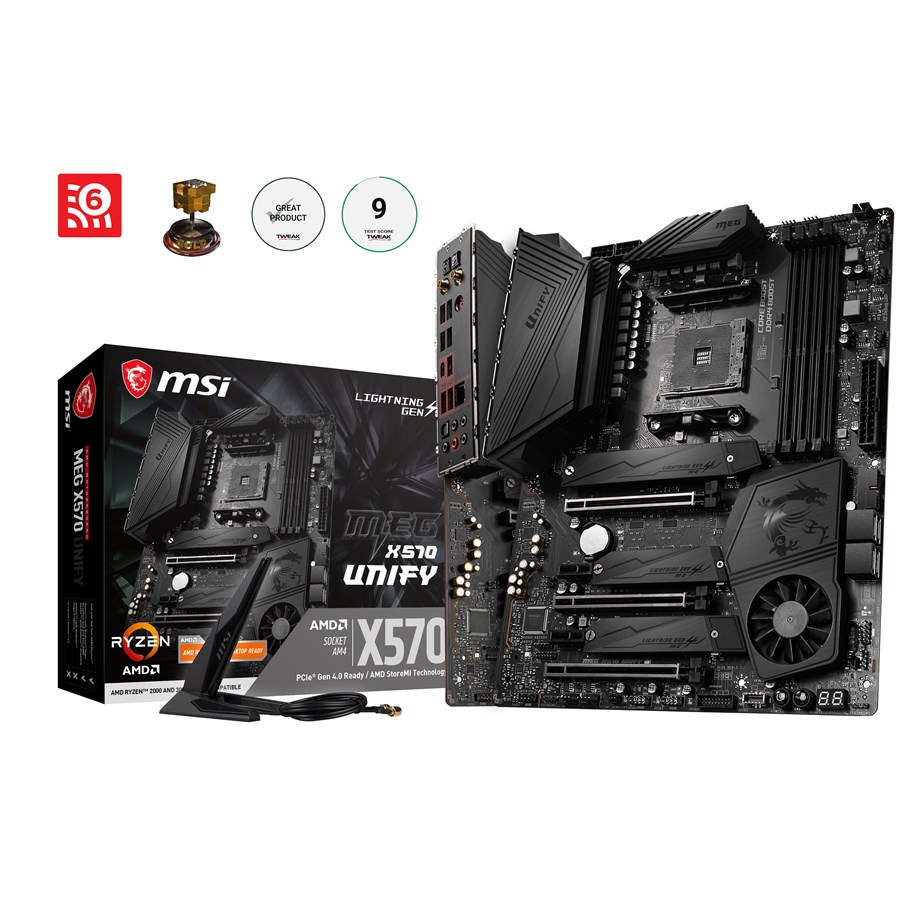

MSI MEG X570 UNIFY Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX
Bundkort, ATX, AMD AM4 Socket, AMD X570, 3 x PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 4 x SATA-600 / 3 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, Realtek 8122 2.5 Gigabit LAN, Intel Wireless-AX 200 Wireless Wi-Fi 6 (802.11ax) / Bluetooth 5.0, Realtek ALC1220 HD Audio (8-kanaler)
Varen er udgået
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it. MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products.
Producent
Varenummer
2803288
Model
MEG X570 UNIFY
Ean
4719072678661
Til producentens hjemmeside
Produktbeskrivelse
MSI MEG X570 UNIFY - bundkort - ATX - Socket AM4 - AMD X570
Produkttype
Bundkort - ATX
Chipsættype
AMD X570
Processor-socket
1 x Socket AM4
Kompatible processorer
Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Generelt
Produkttype
Bundkort - ATX
Chipsættype
AMD X570
Processor-socket
Socket AM4
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Understøttet RAM
Maks. størrelse
128 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 3066 MHz
Understøttet RAM-integritetskon
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand, A-XMP support
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8125 / Intel AX200
Netværks interfaces
Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU); PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics))
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 4.0 x1
4 x DIMM 288-pins
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU); PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics))
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 4.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2
Interface
2 x USB 2.0
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x USB-C Gen2
1 x PS/2-tastatur/mus
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x USB-C Gen2
1 x PS/2-tastatur/mus
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen2 - intern stik
1 x audio - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen2 - intern stik
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
Hardware egenskaber
NVIDIA 2-way SLI Technology Support, AMD 3-vejs CrossFireX teknologisupport, Clear CMOS Button, MSI Gaming Device Port, Debug LED, M.2 Shield FROZR, præmonteret I/O-skjold, MSI Core Boost, MSI PCIe Steel Slot, MSI Audio Boost HD, MSI Frozr Heatsink Design
