Varenummer: 2545678

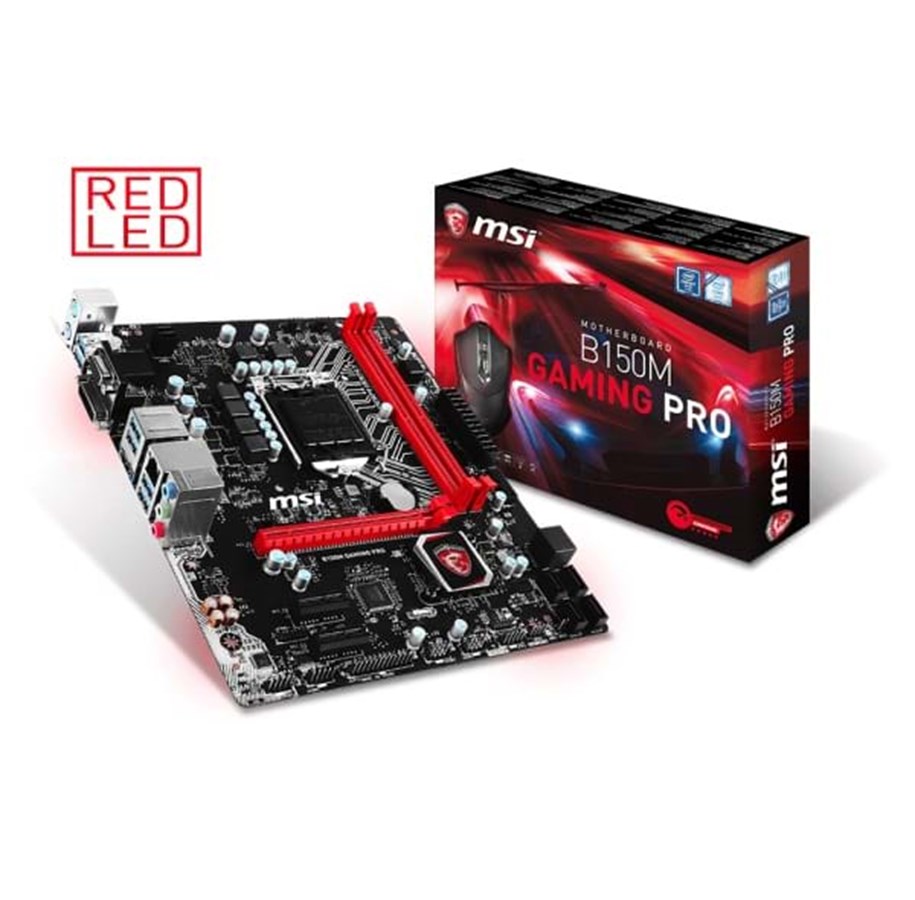

MSI B150M GAMING PRO Bundkort - Intel B150 Express - Intel LGA1151 socket - DDR4 RAM - Micro-ATX

Bundkort, Micro-ATX, Intel LGA1151 Socket, Intel B150, PCI-Express x16, Dual DDR4-2133 - 2 x DIMM slots, 6 x SATA-600, USB 3.0 & USB 3.1 Type A, D-Sub / DVI-D / HDMI (understøtter 4K), Intel I219-V Gigabit LAN, Intel HD Graphics understøttelse (CPU påkrævet), Realtek ALC892 HD Audio (8-kanaler)

Varen er udgået
Se lignende produkter

Each game demands different skills, each gamer selects, customizes and levels their own gaming character. Why stop there? MSI Performance GAMING motherboards allow you to fully customize & personalize your gaming PC to any color you want while delivering top performance for a great gaming experience.With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.Experience a more fluid game with Intel i219 LAN. Intel i219 LAN is designed to deliver high performance when gaming, delivering more throughput than other solutions. Intel i219 LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This way, your CPU can be used more effectively and you

Producent
Varenummer
2545678
Model
B150M GAMING PRO
Ean
4719072455781
Til producentens hjemmeside
Produktbeskrivelse
MSI B150M GAMING PRO - bundkort - micro ATX - LGA1151 Socket - B150
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B150
Processor-socket
1 x LGA1151 Socket
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM-størrelse
32 GB
RAM understøttet
2 DIMM slots - DDR4
Lagringsporte
6 x SATA-600
USB / FireWire porte
6 x USB 3.1 Gen 1 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
Intel B150
Processor-socket
LGA1151 Socket
Max antal processorer
1
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)

Understøttet RAM

Maks. størrelse
32 GB
Teknologi
DDR4
Bus Clock
2133 MHz
Egenskaber
Dobbelt kanal hukommelses arkitektur

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Intel I219V
Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - 6 enheder
Interface
1 x VGA
1 x DVI-D
1 x HDMI
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-tastatur
6 x USB 3.1 Gen 1
1 x PS/2-mus
1 x LAN (Gigabit Ethernet)
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.1 Gen 1 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x parallel - intern stik
Strømkontakter
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor

Egenskaber

BIOS-egenskaber
UEFI BIOS, MSI ClickBIOS 5
Hardware egenskaber
MSI Military Class IV, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, Game Boost, LAN Protect, Double ESD Protection, SteelSeries Certified (SSC), MSI VGA Armor, overspændingsbeskyttelse

Diverse

Med software
RAMdisk, MSI Gaming App, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI CPU-Z, Open Broadcaster Software
Bredde
24.3 cm
Dybde
20.6 cm
