Varenummer: 2511168

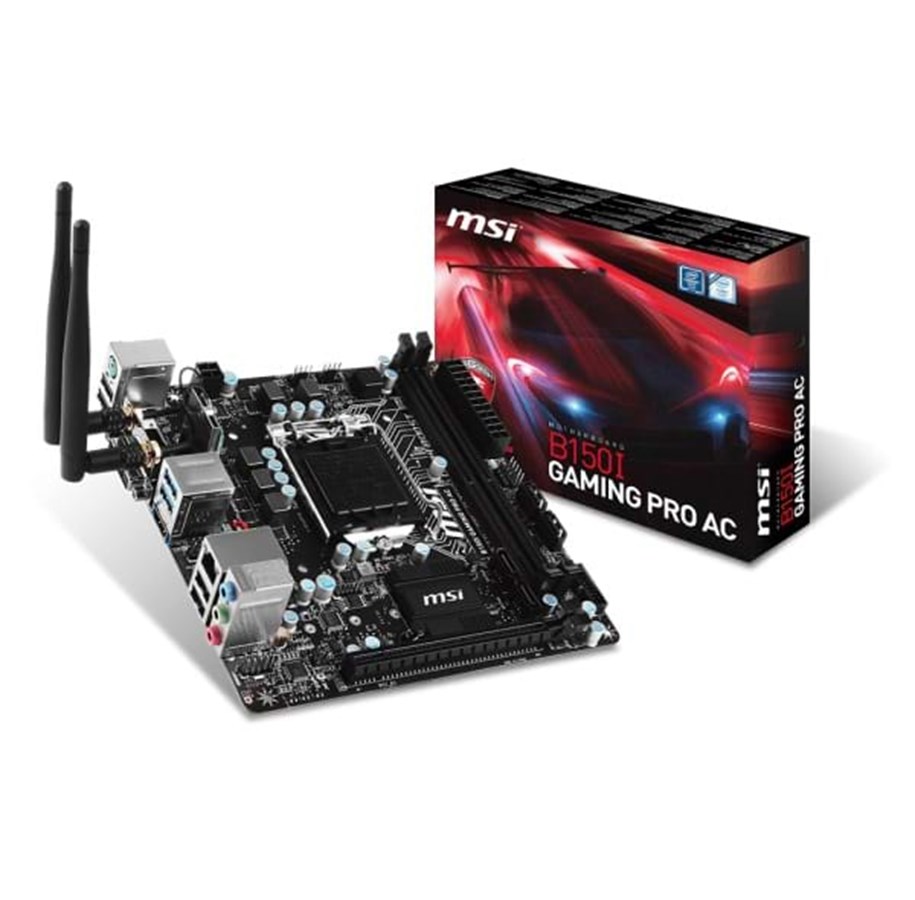

MSI B150I GAMING PRO AC Bundkort - Intel B150 Express - Intel LGA1151 socket - DDR4 RAM - Mini-ITX
Bundkort, Mini-ITX, Intel LGA1151 Socket, Intel B150, PCI-Express x16, Dual DDR4-2133 - 2 x DIMM slots, 4 x SATA-600 / 1 x M.2, USB 3.0, DVI-D / HDMI (understøtter 4K), Realtek 8111H Gigabit LAN, 802.11ac WiFi & Bluetooth 4.2, Intel HD Graphics understøttelse (CPU påkrævet), Realtek ALC887 HD Audio (8-kanaler)
Varen er udgået
Each game demands different skills, each gamer selects, customizes and levels their own gaming character. Why stop there? MSI Performance GAMING motherboards allow you to fully customize & personalize your gaming PC to any color you want while delivering top performance for a great gaming experience.With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.Customize and set up your own color scheme with mystic light. Make your build look on fire or cold as ice. You are in control. You can select any of the colors from the palette to match your systems' design. Tired of always the same color? Just change it to another one using the easy to use GAMING App, and make your PC look & feel brand new!
Producent
Varenummer
2511168
Model
B150I GAMING PRO AC
Ean
4719072443351
Til producentens hjemmeside
Produktbeskrivelse
MSI B150I GAMING PRO AC - bundkort - mini ITX - LGA1151 Socket - B150
Produkttype
Bundkort - mini ITX
Chipsættype
Intel B150
Processor-socket
1 x LGA1151 Socket
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM-størrelse
32 GB
RAM understøttet
2 DIMM slots - DDR4
Lagringsporte
4 x SATA-600, 1 x M.2
USB / FireWire porte
2 x USB 3.1 Gen 1 + 4 x USB 2.0 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Generelt
Produkttype
Bundkort - mini ITX
Chipsættype
Intel B150
Processor-socket
LGA1151 Socket
Max antal processorer
1
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Understøttet RAM
Maks. størrelse
32 GB
Teknologi
DDR4
Bus Clock
2133 MHz
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 3.0 x16
2 x DIMM 288-pins
1 x PCIe 3.0 x16
Grænseflade (lagring)
SATA-600 / PCIe 3.0 -stikforbindelser: 4 x 7pin SATA, 1 x M.2
Interface
1 x LAN (Gigabit Ethernet)
4 x USB 2.0
1 x DVI-D
1 x HDMI
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-tastatur/mus
2 x USB 3.1 Gen 1
4 x USB 2.0
1 x DVI-D
1 x HDMI
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-tastatur/mus
2 x USB 3.1 Gen 1
Interne interfaces
2 x USB 2.0 - intern stik
2 x USB 3.1 Gen 1 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
2 x USB 3.1 Gen 1 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
Strømkontakter
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor
Egenskaber
BIOS-egenskaber
UEFI BIOS, MSI ClickBIOS 5
Hardware egenskaber
Intel Extreme Hukommelses Profil (XMP) support, Intel Wireless Display (WiDi), MSI Military Class IV, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, Game Boost, Double ESD Protection, SteelSeries Certified (SSC), MSI VGA Armor, overspændingsbeskyttelse
Diverse
Udstyr inkluderet
2 antenner
Med software
RAMdisk, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI DPC Latency Tuner
Overensstemmelsesstandarder
WHQL
Bredde
17 cm
Dybde
17 cm
