Varenummer: 3001142

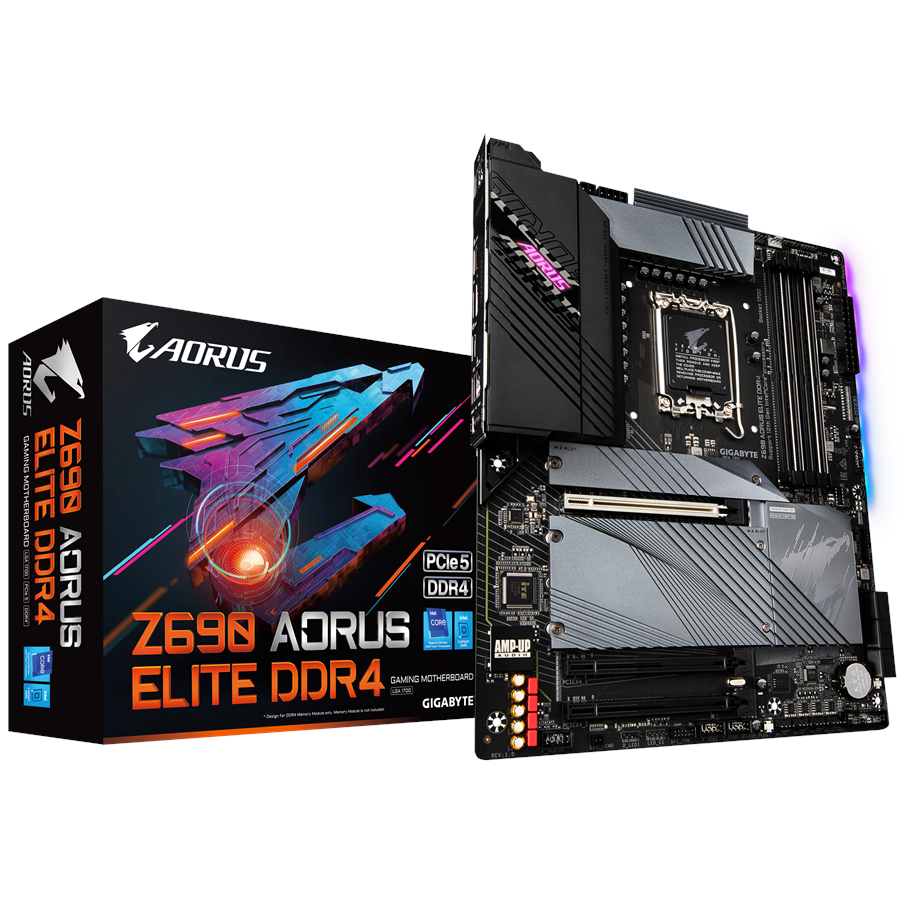

GIGABYTE Z690 AORUS ELITE DDR4 Bundkort - Intel Z690 - Intel LGA1700 socket - DDR4 RAM - ATX

Bundkort, ATX, Intel LGA1700 Socket, Intel Z690, 1 x PCI-Express 5.0 x16 & 2 x PCI-Express 3.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 6 x SATA-600 / 4 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, DisplayPort / HDMI 2.0 tilslutning, Realtek 2.5 Gigabit LAN, Intel Xe Graphics understøttelse (CPU påkrævet), Realtek ALC1220-VB2 HD Audio (8-kanaler) - Gigabyte Fusion 2.0 RGB

Varen er udgået
Se lignende produkter

Z690 AORUS ELITE DDR4
THE NEW KING OF GAMING
Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.

UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

ADVANCED THERMAL SOLUTION
GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

NEXT GENERATION CONNECTIVITY
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.

DEFINITIVE AESTHETICS
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

CPU

Producent
Varenummer
3001142
Model
Z690 AORUS ELITE DDR4
Ean
4719331827885
Til producentens hjemmeside
Produktbeskrivelse
AORUS Z690 ELITE DDR4 - 1.X - bundkort - ATX - LGA1700 sokkel - Z690
Produkttype
Bundkort - ATX
Chipsættype
Intel Z690
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
Core i5, Core i7, Core i9 (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 4 x M.2
USB / FireWire porte
1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet

Generelt

Produkttype
Bundkort - ATX
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
Core i5, Core i7, Core i9 (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)

Understøttet RAM

Maks. størrelse
128 GB
Teknologi
DDR4
Bus Clock
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand

Audio

Audio codec
Realtek ALC1220-VB
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværks interfaces
2.5 Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
2 x PCIe 3.0 x16 (x4-modus)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 3 x M.2
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2
Interface
1 x LAN (2.5Gigabit Ethernet)
1 x DisplayPort
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
3 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x USB-C Gen2x2
1 x TOSLINK
4 x USB 2.0
1 x HDMI
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen2 - intern stik
1 x audio - intern stik
2 x Thunderbolt - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardwareovervågning
Chassis temperatur, systemspænding, CPU kernetemperatur, takometer til chassis-blæser, takometer til CPU-blæser, Beskyttelse mod CPU overophedning, CPU kerne-spænding, blæserfejlvarsel, vandkølings-flowrate
Hardware egenskaber
AMD Quad CrossFireX-teknologisupport, AMD CrossFireX-teknologisupport, Intel Optane Memory Ready, Game Boost, On/Off Charge, Q-Flash Plus, Q-Flash, GIGABYTE AMP-UP Audio, RGB FUSION 2.0, 16+1+2 Phase Power Design, Solid Pin Power Connectors, 2x Copper PCB, 6 Layer PCB, Ultra Durable Memory Armor, Ultra Durable PCIe Armor, M.2 Thermal Guard II, GIGABYTE Smart Fan 6
