Varenummer: 2851870

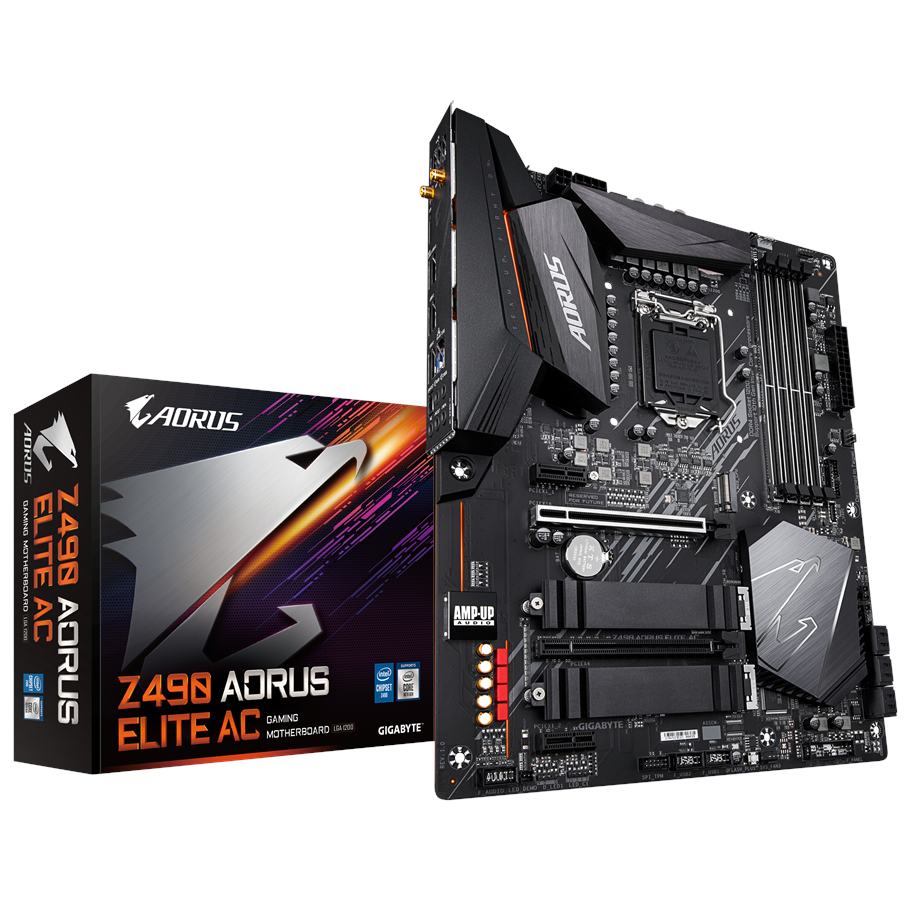

GIGABYTE Z490 AORUS ELITE AC Bundkort - Intel Z490 - Intel LGA1200 socket - DDR4 RAM - ATX

Bundkort, ATX, Intel LGA1200 Socket, Intel Z490, PCI-Express 3.0 x16, Dual DDR4-2933 - 4 x DIMM slots, 6 x SATA-600 / 2 x M.2 NVMe (2242 / 2260 / 2280), USB 3.2 Type A, HDMI tilslutning, Realtek 8125B 2.5 Gigabit LAN, Intel WiFi 5 (802.11ac) & Bluetooth 5, Intel HD Graphics understøttelse (CPU påkrævet), Realtek ALC1200 HD Audio (8-kanaler) - GIGABYTE Fusion RGB support

Varen er udgået
Se lignende produkter

Z490 AORUS ELITE AC motherboard uses a 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the Intel 10-core CPU. Z490 AORUS ELITE AC uses high-performance thermal design with screwed mounted heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.With high-quality components and GIGABYTE R&D design capability, the Z490 AORUS is a true beast among motherboards. Equipped with next-generation connectivity AORUS gaming motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 drive or charging your new mobile device.

RAM

CPU

Producent
Varenummer
2851870
Model
Z490 AORUS ELITE AC
Ean
4719331808563
Til producentens hjemmeside
Produktbeskrivelse
Gigabyte Z490 AORUS ELITE AC - 1.0 - bundkort - ATX - LGA1200 sokkel - Z490
Produkttype
Bundkort - ATX
Chipsættype
Intel Z490
Processor-socket
1 x LGA1200 sokkel
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (understøtter 10. Generation Intel Core / Pentium / Celeron)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
512 MB
Audio
HD Audio (8-kanaler)
LAN
802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0

Generelt

Produkttype
Bundkort - ATX
Chipsættype
Intel Z490
Processor-socket
LGA1200 sokkel
Max antal processorer
1
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (understøtter 10. Generation Intel Core / Pentium / Celeron)

Understøttet RAM

Maks. størrelse
128 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand

Grafik

Maks. allokeret RAM-størrelse
512 MB

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1200
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværks interfaces
802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4-modus)
2 x PCIe 3.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe -stikforbindelser: 2 x M.2
Interface
1 x HDMI
1 x LAN (2.5Gigabit Ethernet)
1 x TOSLINK
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
4 x USB 2.0
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
2 x Thunderbolt - intern stik
1 x audio - intern stik
1 x USB-C Gen 1 - intern stik
Strømkontakter
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning, CPU kerne-spænding, vandkølings-flowrate, blæserfejlvarsel
Hardware egenskaber
12 Phase Power Design, On/Off Charge, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, GIGABYTE AMP-UP Audio, 2x Copper PCB, Q-Flash Plus, Game Boost, Audio Noise Guard, Ultra Durable Memory Armor, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, præmonteret I/O-skjold, Solid Pin Power Connectors, RGB FUSION 2.0, Advanced Thermal Design with Enlarge Heatsink

Diverse

Med software
Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Bredde
30.5 cm
Dybde
24.4 cm
