Varenummer: 2777413

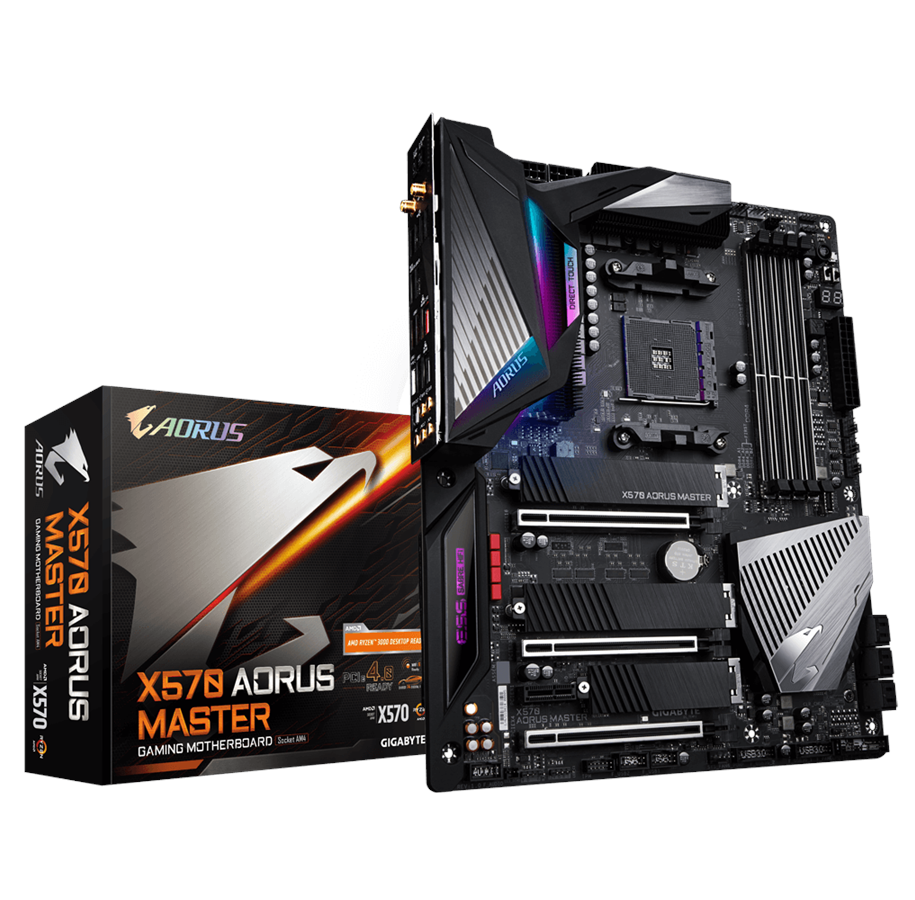

GIGABYTE X570 AORUS MASTER Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX

Bundkort, ATX, AMD AM4 Socket, AMD X570, 2 x PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 6 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, Intel I211-AT Gigabit & Aquantia 2.5 Gigabit LAN, Intel Wireless-AX 200 Wireless Wi-Fi 6 (802.11ax) / Bluetooth 5.0, Realtek ALC1220 HD Audio (8-kanaler)

Varen er udgået
Se lignende produkter

The X570 AORUS MASTER motherboard uses an advanced Infineon multiphase PWM controller and a total of 14 phases for vCore and SOC, all with IR 3556 PowIRstage MOSFETs which are capable of providing at least 50A of power from each phase for a total of 700A.X570 AORUS MASTER reaches a perfect balance between style and performance by combining the media-acclaimed Fins-Array heatsink, a heatpipe, and a thermal baseplate to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.X570 AORUS pushes the envelope once again by featuring full PCIe 4.0 design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors, PCIe 4.0 B-clock Tuning IC, and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. The inclusion of the PCIe 4.0 B-Clock Tuning IC and a server-grade PCB helps you unlock the best performance from PC peripherals.With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

RAM

Producent
Varenummer
2777413
Model
X570 AORUS MASTER
Ean
4719331805654
Til producentens hjemmeside
Produktbeskrivelse
Gigabyte X570 AORUS MASTER - 1.0 - bundkort - ATX - Socket AM4 - AMD X570
Produkttype
Bundkort - ATX
Chipsættype
AMD X570
Processor-socket
1 x Socket AM4
Kompatible processorer
Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC, ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte
1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Generelt

Produkttype
Bundkort - ATX
Chipsættype
AMD X570
Processor-socket
Socket AM4
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)

Understøttet RAM

Maks. størrelse
128 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz
Understøttet RAM-integritetskon
Ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220-VB
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværks interfaces
Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU); PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics))
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 4.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 3 x M.2
Interface
1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x USB-C Gen2
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen2
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning, CPU kerne-spænding, vandkølings-flowrate
Hardware egenskaber
AutoGreen, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, On/Off Charge, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, Q-Flash Plus, GIGABYTE Double Locking Bracket, Ultra Durable Memory Armor, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, 14 Phase Power Design, M.2 Thermal Guard, præmonteret I/O-skjold, Fins-Array Heatsink & Direct Touch Heatpipe, AMD StoreMI technology, Solid Pin Power Connectors, ESS 9118 SABRE HiFi DAC, GIGABYTE USB TurboCharger, RGB FUSION 2.0
