Varenummer: 3487997

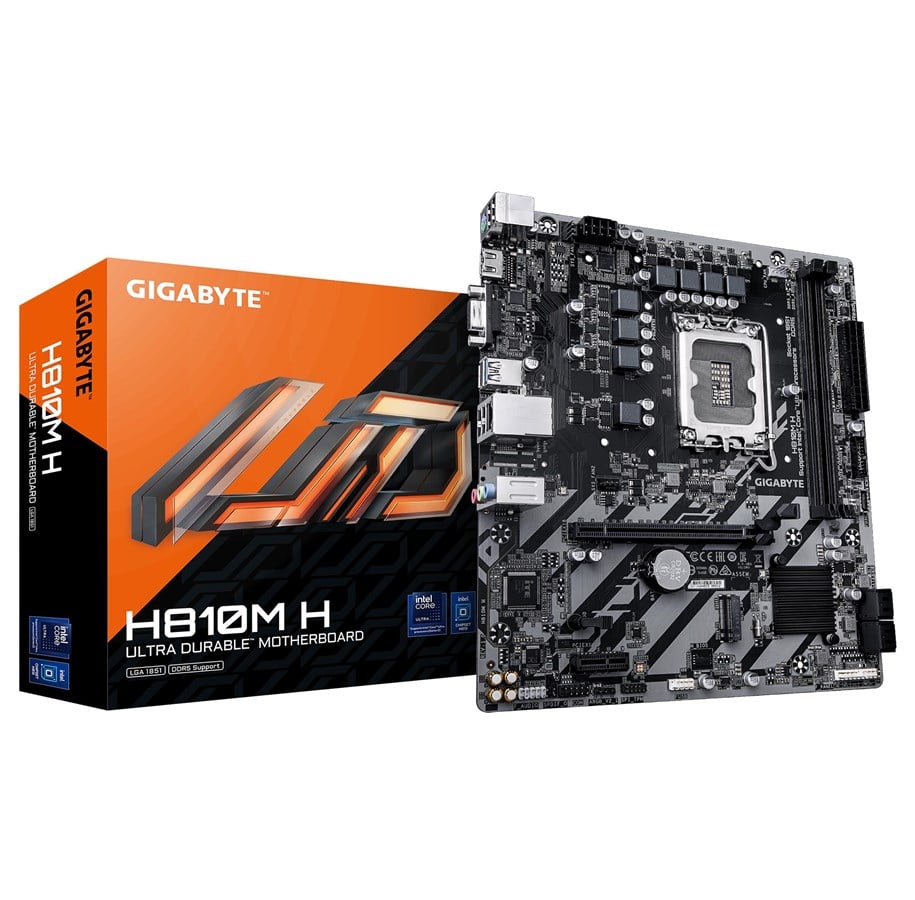

GIGABYTE H810M H Bundkort - Intel H810 - Intel LGA1851 - DDR5 RAM - Micro-ATX
Bundkort, micro ATX, LGA1851 sokkel, H810 Chipset, USB-C 3.2 Gen 1, USB 3.2 Gen 1, Gigabit LAN, onboard grafik (CPU påkrævet), HD Audio (8-kanaler)
Ved køb medfølger:
Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk
Værdi 299,00 kr.Billigste fragt (privatkunde) 39,00 kr.
Fjernlager, 6-7 dages levering
Lagerstatus i vores Pick-up Points
-
Aarhus (0 stk.)
Ikke på lager -
København (0 stk.)
Ikke på lager
The GIGABYTE H810M H motherboard provides a solid foundation for building a reliable PC, equipped to handle the demands of both everyday tasks and high-performance gaming. With support for Intel Core Ultra processors and dual-channel memory architecture, this micro ATX motherboard features 2 DIMM slots and supports DDR5 SDRAM with speeds up to 3200 MHz. The Intel H810 Express chipset delivers stability and performance, enhanced by features such as dedicated M.2 Thermal Guard and RGB FUSION for customization.
Connectivity is a strong point, featuring numerous ports including 5 USB 2.0, 1 USB 3.2 Gen 1, USB-C 3.2 Gen 1, and various audio and video interfaces such as HDMI and VGA. With a robust power design that includes solid pin power connectors and a multi-phase power system, this motherboard ensures consistent performance. Additional functionalities like hardware monitoring, Q-Flash, and a DIY-friendly design make the GIGABYTE H810M H a practical choice for those seeking stability and performance in their builds.
Connectivity is a strong point, featuring numerous ports including 5 USB 2.0, 1 USB 3.2 Gen 1, USB-C 3.2 Gen 1, and various audio and video interfaces such as HDMI and VGA. With a robust power design that includes solid pin power connectors and a multi-phase power system, this motherboard ensures consistent performance. Additional functionalities like hardware monitoring, Q-Flash, and a DIY-friendly design make the GIGABYTE H810M H a practical choice for those seeking stability and performance in their builds.
Producent
Varenummer
3487997
Model
H810M H
Ean
4719331869540
Til producentens hjemmeside
Produktbeskrivelse
Gigabyte H810M H - bundkort - micro ATX - LGA1851 sokkel - H810
Produkttype
Bundkort - micro ATX
Chipsættype
Intel H810 Express
Processor-socket
1 x LGA1851 sokkel
Kompatible processorer
(understøtter Intel Core Ultra-processorer (Serie 2))
Max RAM-størrelse
128 GB
RAM understøttet
2 DIMM slots - DDR5, ECC (drift i ikke-ECC tilstand), ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 1 x M.2
USB / FireWire porte
1 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Generelt
Produkttype
Bundkort - micro ATX
Chipsættype
Intel H810 Express
Processor-socket
LGA1851 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter Intel Core Ultra-processorer (Serie 2))
Understøttet RAM
Maks. størrelse
128 GB
Teknologi
DDR5
Bus Clock
3200 MHz, 2800 MHz
Understøttet RAM-integritetskon
ECC (drift i ikke-ECC tilstand), ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Intel Extreme Memory Profiles (XMP), dobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type
HD Audio (8-kanaler)
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x M.2 socket (2280 M.2 Key M-åbning)
2 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 1 x M.2
PCIe 4.0 -stikforbindelser: 1 x M.2
Interface
1 x USB 3.2 Gen 1
5 x USB 2.0
1 x HDMI
1 x VGA
1 x PS/2-tastatur/mus
1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
5 x USB 2.0
1 x HDMI
1 x VGA
1 x PS/2-tastatur/mus
1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
1 x USB-C 3.2 Gen 1 - intern stik
2 x USB 3.2 Gen 1 - intern stik
2 x USB 2.0 - intern stik
1 x audio - intern stik
1 x SPDIF ud - intern stik
1 x SPI - intern stik
1 x seriel - intern stik
2 x USB 3.2 Gen 1 - intern stik
2 x USB 2.0 - intern stik
1 x audio - intern stik
1 x SPDIF ud - intern stik
1 x SPI - intern stik
1 x seriel - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support
Hardwareovervågning
Blæserkontrol, blæserfejlvarsel, blæserhastighedsdetektion, systemspænding, temperaturdetektion, vandkølings-flowrate
Hardware egenskaber
4+2+1 Phase Power Design, Q-Flash, DIY Friendly Design, chipset-kølelegeme, RGB FUSION, PCIe EZ Latch, EZ Debug LED, VRM kølelegemedesign, GIGABYTE Smart Fan 6, Ultra Durable, M.2 Thermal Guard, Solid Pin Power Connectors
Diverse
Udstyr inkluderet
IO-skjold
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager
Bredde
24.4 cm
Dybde
21.5 cm
