Varenummer: 3105211

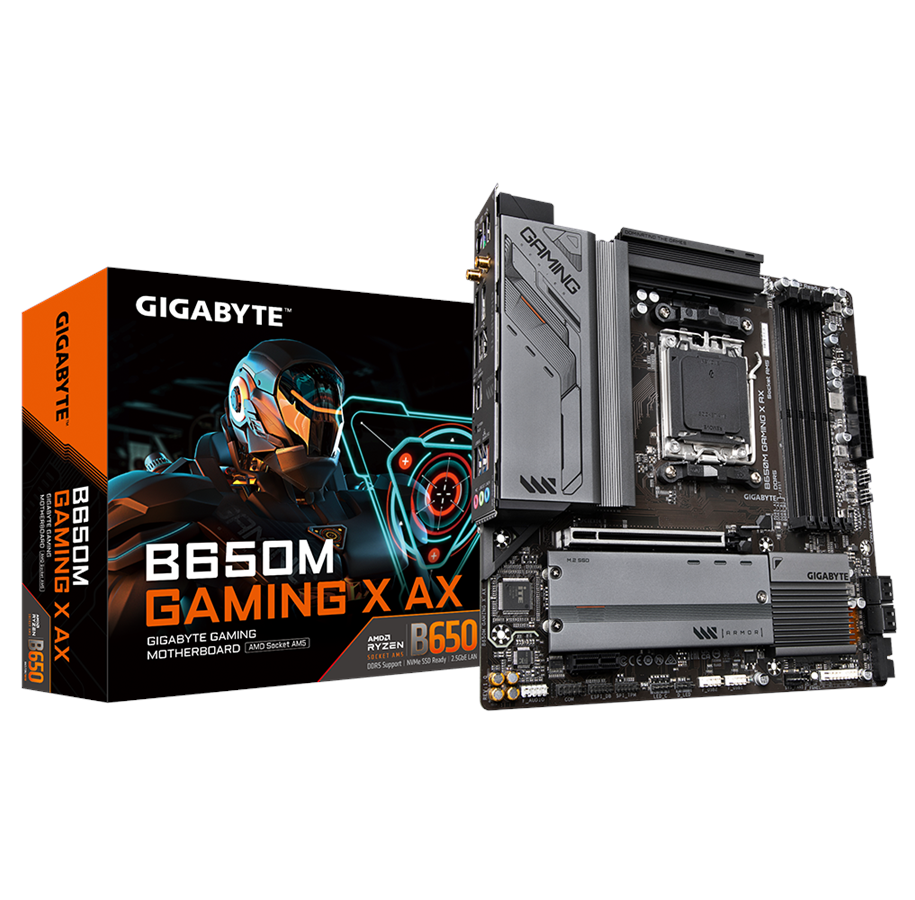

GIGABYTE B650M GAMING X AX Bundkort - AMD B650 - AMD AM5 socket - DDR5 RAM - Micro-ATX

Bundkort, størrelse: Micro-ATX, AMD AM5 socket, AMD B650 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5200 4 x DIMM slots (AMD EXPO support), lagrings tilslutninger: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, skærm tilslutning: 2 x Displayport 1.4 / 1 x HDMI 2.1, Realtek RTL8125 2.5 Gigabit netværk (LAN), AMD RZ616 WiFi 6E & Bluetooth 5.2, AMD Graphics supporteret (CPU med VGA påkrævet), Realtek HD Audio (8-kanaler) lydkort, Gigabyte Fusion RGB 2.0 software

Varen er udgået
Se lignende produkter

The GIGABYTE B650M GAMING X AX motherboard is designed to meet the demands of gamers and PC enthusiasts alike. It supports Ryzen 7000 Series processors, ensuring that users can enjoy high computing power for gaming, content creation, and more. With DDR5 SDRAM compatibility, it offers fast memory speeds, enhancing overall system responsiveness and multitasking capabilities.

This motherboard excels in performance and offers robust connectivity options. Featuring HDMI, DisplayPort, USB-C 3.2 Gen 2, and USB 3.2 Gen 1 ports, it provides ample connectivity for a wide range of devices. Networking is reliable, with 2.5 Gigabit Ethernet and Wi-Fi 6E support, ensuring fast and reliable connections for online gaming and streaming.

Audio quality is a highlight, with high definition audio (8-channel) support that brings games and media to life. Additionally, the GIGABYTE Smart Fan 6 technology and M.2 Thermal Guard keep the system cool, enhancing stability and component longevity. For those looking to build or upgrade their PC, the B650M GAMING X AX motherboard offers a compelling combination of performance, connectivity, and quality.

RAM

CPU

Producent
Varenummer
3105211
Model
B650M GAMING X AX
Ean
4719331849993
Til producentens hjemmeside
Produktbeskrivelse
Gigabyte B650M GAMING X AX - 1.X - bundkort - micro ATX - Socket AM5 - AMD B650
Produkttype
Bundkort - micro ATX
Chipsættype
AMD B650
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000 Series)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
AMD B650
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter Ryzen 7000 Series)

Understøttet RAM

Maks. størrelse
128 GB
Teknologi
DDR5
Bus Clock
6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5600 MHz (O.C.), 5200 MHz, 4800 MHz, 4400 MHz
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaler)
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværks interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
2 x M.2 socket (2280/25.110 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interface
1 x HDMI
2 x DisplayPort
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x USB-C 3.2 Gen 2
1 x USB 3.2 Gen 2
4 x USB 2.0
1 x PS/2-tastatur/mus
2 x antenne
2 x USB 3.2 Gen 1
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 2 - intern stik
1 x audio - intern stik
1 x SPI - intern stik
1 x seriel - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support
Hardwareovervågning
Blæserfejlvarsel, blæserkontrol, systemspænding
Hardware egenskaber
Water Pump Header, Q-Flash Plus, Q-Flash, 6+2+1 Phase Power Design, M.2 Thermal Guard, GIGABYTE Smart Fan 6, DIY Friendly Design, Ultra Durable, Solid Capacitor for CPU power, 60A Smart Power Stage, 6 Layer PCB, 2x Copper PCB, præmonteret I/O-skjold, MultiKey, RGB FUSION

Diverse

Udstyr inkluderet
Ekstern antenne, m.2 screw/standoff-sæt, 1 x M.2 skrue
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Norton Internet Security
Overensstemmelsesstandarder
DisplayPort 1.4, HDCP 2.3, FCC Part 15 Subpart B, WEEE, UKCA
Bredde
24.4 cm
Dybde
24.4 cm
