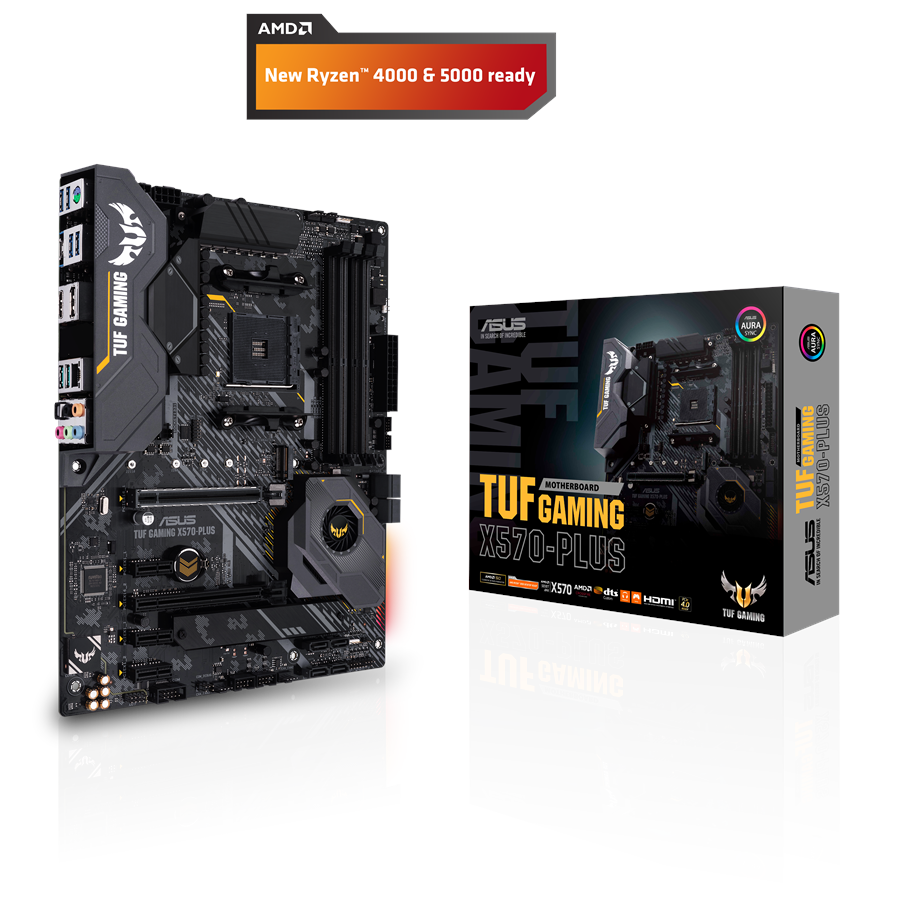

90MB1180-M0EAY0 - ASUS TUF GAMING X570-PLUS Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX
Varenummer: 2777401

ASUS TUF GAMING X570-PLUS Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX

Bundkort, ATX, AMD AM4 Socket, AMD X570, PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 8 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, DisplayPort / HDMI (understøtter 4K) tilslutning, Realtek L8200A Gigabit LAN, AMD Radeon Graphics understøttelse (CPU påkrævet), Realtek S1220A HD Audio (8-kanaler)

1.899,00 kr.
1.519,20 kr. ekskl. moms
Bestilt - ukendt leveringsdato
Billigste privatfragt 0,00 kr.

Pick-up Points lagerstatus

  • Aarhus (0 stk.)

    Ikke på lager
  • København (0 stk.)

    Ikke på lager

Detaljer

Producent: ASUS
Varenummer: 2777401
Model: 90MB1180-M0EAY0
Ean: 4718017388450

Til producentens hjemmeside

www.asus.com/Motherboards/TUF-...
ProduktbeskrivelseASUS TUF GAMING X570-PLUS - bundkort - ATX - Socket AM4 - AMD X570
ProdukttypeBundkort - ATX
ChipsættypeAMD X570
Processor-socket1 x Socket AM4
Kompatible processorerRyzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Max RAM-størrelse128 GB
RAM understøttet4 DIMM åbninger - DDR4, ECC, ikke bufferet
Lagringsporte8 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
AudioHD Audio (8-kanaler)
LANGigabit Ethernet

Generelt

Produkttype Bundkort - ATX
Chipsættype AMD X570
Processor-socket Socket AM4
Max antal processorer 1
Kompatible processorer Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)

Understøttet RAM

Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 4400 MHz (O.C.)
Understøttet RAM-integritetskon ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur

Audio

Type HD Audio (8-kanaler)
Audio codec Realtek ALCS1200A
Overensstemmelsesstandarder High Definition Audio, DTS Custom

LAN

Netværk controller Realtek RTL8200A
Netværks interfaces Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16 (PCIe 4.0 x16 tilstand (med 3. Generation Ryzen CPU); PCIe 3.0 x16 tilstand (med 2. Generation Ryzen CPU); PCIe 3.0 x8 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics))
1 x PCIe 4.0 x16 (x4-modus)
3 x PCIe 4.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2
Interface 1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x PS/2-tastatur/mus
1 x USB-C Gen2
1 x DisplayPort
1 x HDMI
Interne interfaces 4 x USB 2.0 - intern stik
1 x seriel - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber Flersproget BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3,2 support, ACPI 6,2 support
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, AMD CrossFireX-teknologisupport, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, TUF LANGuard, ASUS Overvoltage Protection, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, M.2 kølelegeme, ASUS ProCool, ASUS TUF Protection, ASUS Aura Sync

TUF GAMING X570-PLUS



DURABLE. STABLE. RELIABLE

TUF Gaming X570-Plus distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus is the perfect foundation for your next high-core-count AMD battle rig.

Dr. MOS - The TUF Gaming X570-Plus's CPU VRM utilizes Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

ENHANCED EATX 4-PIN & 8-PIN SOCKET - Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

TUF gaming alliance - TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger

Armoury Crate - Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

IMMERSIVE GAMING

TUF Gaming X570-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.



EXCLUSIVE GIGABIT ETHERNET & TURBO LAN

Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers. Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!



DTS CUSTOM FOR GAMING HEADSETS

Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.

AERIAL MODE - Experience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles!

SOUNDSCAPE MODE - The ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the center of the action!

TACTICAL MODE - Shhh — is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!

OUTSHINE THE COMPETITION

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Active Chipset Heatsink Solution

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The TUF Gaming X570-Plus features an actively cooled heatsink to prevent throttling during sustained transfers.

Custom Delta Superflo Fan - The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.

Air Duct - A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

Finned Heatsink - The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. *L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
