Varenummer: 3201873

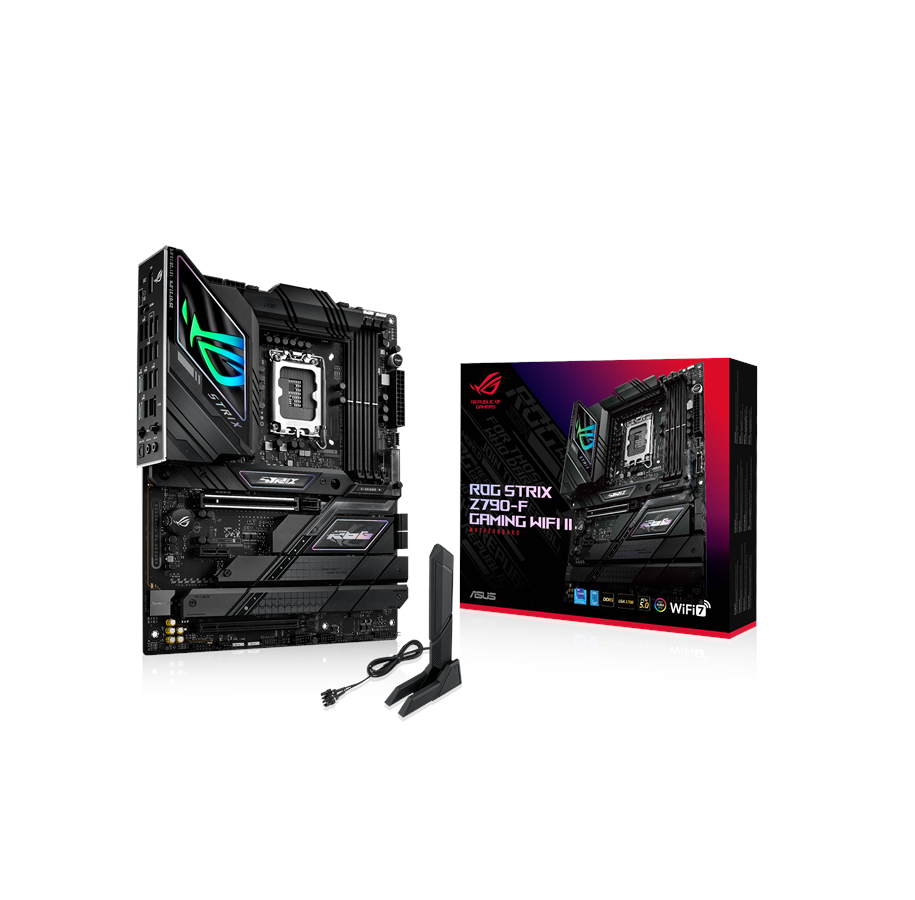

ASUS ROG STRIX Z790-F GAMING WIFI II Bundkort - Intel Z790 - Intel LGA1700 socket - DDR5 RAM - ATX

Bundkort, størrelse: ATX, Intel LGA1700 socket, Intel Z790 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), lagrings tilslutninger: 4 x SATA-600 / 5 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Intel I225-V 2.5 Gigabit netværk (LAN), Intel WiFi 7 & Bluetooth 5.4, Intel Xe Graphics supporteret (CPU med VGA påkrævet), Realtek ALC4080 HD Audio (8-kanaler) lydkort, ASUS AURA Sync software

Klar til Intel 14th gen

Varen er udgået

ROG STRIX Z790-F GAMING WIFI II
The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.

PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE
Robust power delivery, breakneck DDR5 memory, speedy storage, and comprehensive cooling elevate any build with the ROG Strix Z790-A II at its center.

AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

LEADING CONNECTIVITY
Next-gen connectivity and low-latency networking are hallmarks of the ROG ecosystem, and the Strix Z790-F II delivers both of them in full. Joining them is an advanced audio solution for immersive sound so you can pick out the slightest cues and nuances.

WIFI 7
With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.

Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

PLAY IN STYLE
Bold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-F II shine in every build.

SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips

AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

DARE TO BE GREEN
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.

Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.

For those who dare, join us on our journey as we make the world a better place.

INTEL® UNISON™
Our latest ROG and ROG Strix Z790 WiFi 7 motherboards help you unify your tech life with a free 9-month subscription to Intel Unison.

Intel Unison lets you use a compatible tablet as a second display, wirelessly transfer content between your phone, computer and tablet, and to do thing like accessing your smartphone’s picture photos while you’re working from on your PC. You can also keep an eye on your text messages and notifications while you’re working on your PC to stay connected without losing your flow, and you can even make phone calls without touching your phone.

RAM

CPU

Producent
Varenummer
3201873
Model
90MB1FM0-M0EAY0
Ean
4711387356548
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS ROG STRIX Z790-F GAMING WIFI II - bundkort - ATX - LGA1700 sokkel - Z790
Produkttype
Bundkort - ATX
Chipsættype
Intel Z790
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
192 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 5 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Generelt

Produkttype
Bundkort - ATX
Chipsættype
Intel Z790
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)

Understøttet RAM

Maks. størrelse
192 GB
Teknologi
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, on-die ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

Audio

Audio codec
SupremeFX (ALC4080)
Overensstemmelsesstandarder
DTS Sound Unbound, High Definition Audio

LAN

Netværks interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 3.0 x1
2 x M.2 socket (2280 M.2 Key M-åbning)
2 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
1 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID-egenskaber
Intel Rapid Storage Technology
Interface
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen2x2
1 x USB-C 3.2 Gen 2
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
6 x USB 2.0
1 x mikrofon - mini-jack
1 x audio linje-ud - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x SPDIF-ud
2 x antenne
Interne interfaces
1 x USB-C 3.2 Gen 2x2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x audio - intern stik
1 x Thunderbolt 4 - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS Enhanced Memory Profile (AEMP) II, ASUS OptiMem II, 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS TPU (TurboV Processing Unit), BIOS FlashBack-knap, BIOS FlashBack LED, Clear CMOS Button, CPU Socket-håndtagsbeskytter, Lighting Control, M.2 kølelegeme, M.2 kølelegemebagplade, M.2 Q-Latch, PCIe Slot Q-Release, præmonteret I/O-skjold, Q-Antenna, Q-DIMM, Q-LED, Q-Slot, 6 Layer PCB, 16+1+2 Phase Power Design, LANGuard, Start-knap

Diverse

Udstyr inkluderet
Termisk pude til M.2 SSD, ASUS Wi-Fi Q-antenna, kabelbånd, M.2 bagplade Q-Latch, M.2 Q-Latch, ROG-nøglekæde, STRIX-mærkater, 2 x M.2 gummipakke, M.2 bagplade-gummipakke
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
MemTest86, ROG CPU-Z, Armoury Crate, AIDA64 Extreme (60 dages prøvetid), ASUS AI Suite III, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS Turbo App, Intel Unison, MyAsus, PC Cleaner, ROG GameFirst Utility, Sonic Radar III, Sonic Studio Virtual Mixer, USB Wattage Watcher, Adobe Creative Cloud (gratis prøve), Norton 360 for Gamers (60 dages prøvetid), WinRAR (40 days trial)
Overensstemmelsesstandarder
DisplayPort 1.4
Bredde
30.5 cm
Dybde
24.4 cm
