90MB1160-M0EAY0 - ASUS ROG STRIX X570-F GAMING Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX

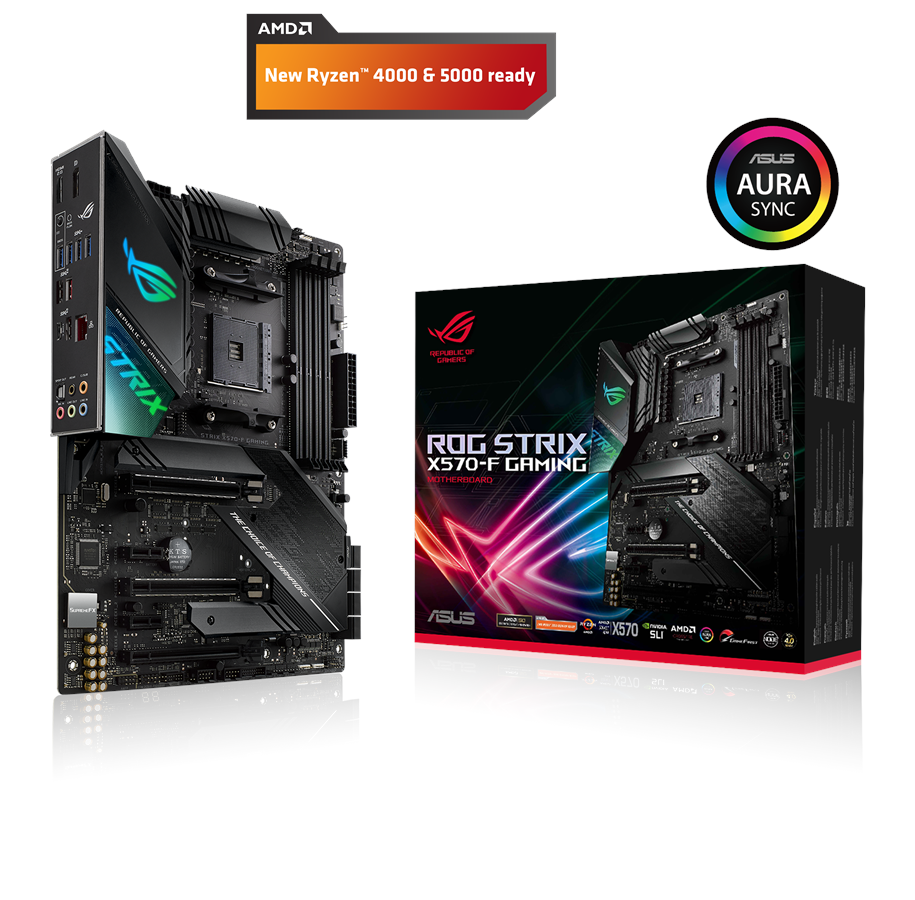

ASUS ROG STRIX X570-F GAMING Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX

Bundkort, ATX, AMD AM4 Socket, AMD X570, 2 x PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 8 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, DisplayPort / HDMI (understøtter 4K) tilslutning, Intel I211-AT Gigabit LAN, AMD Radeon Graphics understøttelse (CPU påkrævet), Realtek S1220A HD Audio (8-kanaler), understøtter SLI / CrossFireX

Køb demo 1.777,00 kr.

Varenummer: 2777399
90MB1160-M0EAY0
90MB1160-M0EAY0
90MB1160-M0EAY0
90MB1160-M0EAY0
90MB1160-M0EAY0
90MB1160-M0EAY0
90MB1160-M0EAY0
1.990,00 kr.
1.592,00 kr. ekskl. moms
På lager - Leveres mandag
Billigste privatfragt 0,00 kr.
Pick-up Points lagerstatus
Aarhus
+15 stk.
På lager, kan afhentes
København
5 stk.
På lager, kan afhentes

ASUS Gamesplanet AAA Game Bundle
ASUS Gamesplanet AAA Game Bundle

I en begrænset periode kan du få et valgfrit spil*, som angivet på kampagnesiden, ved køb af udvalgte ASUS-produkter.

Kampagneperiode: 16/5 - 10/7 (eller så længe lager haves)
Indløsningsperiode: 30/5 - 24/7

Læs mere om kampagnen her.

* F.eks. Elden ring, Ghostwire,Assassin's Creed Valhalla,Total War: WARHAMMER III…osv.

Detaljer

Producent: ASUS
Varenummer: 2777399
Model: 90MB1160-M0EAY0
Ean: 4718017378956

Til producentens hjemmeside

www.asus.com/ROG-Republic-Of-G...
ProduktbeskrivelseASUS ROG Strix X570-F Gaming - bundkort - ATX - Socket AM4 - AMD X570
ProdukttypeBundkort - ATX
ChipsættypeAMD X570
Processor-socket1 x Socket AM4
Kompatible processorerRyzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Max RAM-størrelse128 GB
RAM understøttet4 DIMM åbninger - DDR4 ikke bufferet
Lagringsporte8 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
AudioHD Audio (8-kanaler)
LANGigabit Ethernet

Generelt

Produkttype Bundkort - ATX
Chipsættype AMD X570
Processor-socket Socket AM4
Max antal processorer 1
Kompatible processorer Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)

Understøttet RAM

Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.)
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur

Audio

Type HD Audio (8-kanaler)
Audio codec SupremeFX (S1220A)
Overensstemmelsesstandarder High Definition Audio, DTS Sound Unbound

LAN

Netværk controller Intel I211-AT
Netværks interfaces Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU); PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics))
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 4.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2
Interface 1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
4 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x USB-C Gen2
1 x DisplayPort
1 x HDMI
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB 3.2 Gen 2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber WfM 2.0 understøttet, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3,2 support, ACPI 6,2 support
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber Jack retasking, ASUS Q-Design, GameFirst, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding teknologi, AMD CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Dual Intelligent Processors 5, LANGuard, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, præmonteret I/O-skjold, Sonic Studio Link, ASUS Node, ProCool II Power Connector

Diverse

Udstyr inkluderet Kabelbånd, 1 x M.2 skrue, termistorkabel, RGB (RGBW) LED strip-forlængerkabel, strix dørbøjle, STRIX-mærkater, ROG-takkekort, RGB Addressable LED-forlængerkabel
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, Antivirus (OEM version), Overwolf, WinRAR, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer
Overensstemmelsesstandarder Plug and Play
Bredde 30.5 cm
Dybde 24.4 cm

ROG STRIX X570-F GAMING



ROG STRIX X570-F GAMING

The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.

SOLID HARDWARE SPECS

With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

Digital power control and an array of power stages ensures ROG Strix X570-F Gaming has the muscle to control the latest AMD Ryzen CPUs. ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

COOLING INNOVATION

MOS HEATSINK WITH 8MM HEATPIPE - A MOS heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north MOS heatsink for better performance and wattage resistance..

THERMAL PAD - A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.

ACTIVE PCH HEATSINK - A PCH heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

Dual M.2 heatsinks - The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

STORAGE, MEMORY AND NETWORKING

DUAL PCIE 4.0 M.2 - Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

INTEL GIGABIT ETHERNET - ROG Strix X570-F Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.



SUPREMEFX - SHIELDED AUDIO, SUPERIOR SOUND

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.



DESIGN & CUSTOMIZATION

The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry that you can easily makes creating and customizing your gaming rig that reflects your personal style wonderfully easy.

TUNE YOUR RIG YOU WANT

The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.



Active Chipset Heatsink Solution

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The ROG Strix X570-E Gaming features an actively cooled heatsink to prevent throttling during sustained transfers.

Custom Delta Superflo Fan - The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.

Air Duct - A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

Finned Heatsink - The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. *L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.



RAM

  • CMK16GX4M2Z3600C18 - Corsair Vengeance LPX DDR4-3600 C18 BK DC (AMD optimized) - 16GB
    Corsair Vengeance LPX DDR4-3600 C18 BK DC (AMD optimized) - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3600 MHz / PC4-28800, CL18-22-22-42, 1.35 V, ikke bufferet, ikke-ECC - Optimeret til AMD - Corsair Vengeance LPX serie, Sort
  • CMW16GX4M2Z3600C18 - Corsair Vengeance RGB PRO DDR4-3600 C18 DC - 16GB
    Corsair Vengeance RGB PRO DDR4-3600 C18 DC - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3600 MHz / PC4-28800, CL18-22-22-42, 1.35 V, ikke bufferet, ikke-ECC - Vengeance RGB PRO serie med indbygget RGB LED lys, Sort
  • CMW16GX4M2Z3600C18 - Corsair *DEMO* Vengeance RGB PRO DDR4-3600 C18 DC - 16GB
    Corsair *DEMO* Vengeance RGB PRO DDR4-3600 C18 DC - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3600 MHz / PC4-28800, CL18-22-22-42, 1.35 V, ikke bufferet, ikke-ECC - Vengeance RGB PRO serie med indbygget RGB LED lys, Sort
  • CMK16GX4M2Z3200C16 - Corsair Vengeance LPX DDR4-3200 C16 BK DC (AMD optimized) - 16GB
    Corsair Vengeance LPX DDR4-3200 C16 BK DC (AMD optimized) - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3200 MHz / PC4-25600, CL16-18-18-36, 1.35 V, ikke bufferet, ikke-ECC - Optimeret til AMD - Corsair Vengeance LPX serie, Sort
  • CMT32GX4M4Z3200C16 - Corsair Dominator Platinum RGB DDR4-3200 C16 QC - 32GB
    Corsair Dominator Platinum RGB DDR4-3200 C16 QC - 32GB
    Hukommelse (RAM), 32 GB: 4 x 8 GB (Quad Channel), DIMM 288-pin, DDR4, 3200 MHz / PC4-25600, CL16-18-18-36, 1.35 V, ikke bufferet, ikke-ECC - Dominator Platinum RGB (AMD udgave) med indbygget CAPELLUX RGB LED
  • CMT16GX4M2C3600C18 - Corsair Dominator Platinum RGB DDR4-3600 C18 DC - 16GB
    Corsair Dominator Platinum RGB DDR4-3600 C18 DC - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3600 MHz / PC4-28800, CL18-19-19-39, 1.35 V, ikke bufferet, ikke-ECC - Dominator Platinum RGB med indbygget CAPELLUX RGB LED

CPU

  • 100-100000025BOX - AMD Ryzen 7 3800X Wraith Prism CPU - 8 kerner 3.9 GHz - AMD AM4 - AMD Boxed (PIB - med køler)
    AMD Ryzen 7 3800X Wraith Prism CPU - 8 kerner 3.9 GHz - AMD AM4 - AMD Boxed (PIB...
    Processor (CPU), 3.9 GHz (4.5 GHz Turbo), Unlocked (kan overclockes), 8 kerner (Octa Core), 16 tråde, 32 MB cache, understøtter Dual Channel DDR4-3200 RAM, 24 PCI Express Gen 4.0 Lanes, AM4 Socket, 105 watt TDP, Box (inkl Wraith Prism køler)
  • 100-100000031BOX - AMD Ryzen 5 3600 Wraith Stealth CPU - 6 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PIB - med køler)
    AMD Ryzen 5 3600 Wraith Stealth CPU - 6 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PI...
    Processor (CPU), 3.6 GHz (4.2 GHz Turbo), Unlocked (kan overclockes), 6 kerner (Hexa Core), 12 tråde, 32 MB cache, understøtter Dual Channel DDR4-3200 RAM, 24 PCI Express Gen 4.0 Lanes, AM4 Socket, 65 watt TDP, Box (inkl Wraith Stealth køler)
  • 100-100000071BOX - AMD Ryzen 7 3700X Wraith Prism CPU - 8 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PIB - med køler)
    AMD Ryzen 7 3700X Wraith Prism CPU - 8 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PIB...
    Processor (CPU), 3.6 GHz (4.4 GHz Turbo), Unlocked (kan overclockes), 8 kerner (Octa Core), 16 tråde, 32 MB cache, understøtter Dual Channel DDR4-3200 RAM, 24 PCI Express Gen 4.0 Lanes, AM4 Socket, 65 watt TDP, Box (inkl Wraith Prism køler)

SSD

  • CSSD-F2000GBMP600 - Corsair Force MP600 NVMe Gen4 M.2 - 2TB
    Corsair Force MP600 NVMe Gen4 M.2 - 2TB
    SSD (Solid state drive), 2 TB, intern, Datahastighed: 4950 MBps (læs) / 4250 MBps (skriv), IOPS: 680000 (læs) / 600000 (skriv), M.2 2280 (80mm), PCI-Express 4.0 x4 NVMe 1.3 (Non-Volatile Memory Express), 256-bit AES kryptering - Phison PS5016-E16 Controller
  • CSSD-F1000GBMP600 - Corsair Force MP600 NVMe Gen4 M.2 - 1TB
    Corsair Force MP600 NVMe Gen4 M.2 - 1TB
    SSD (Solid state drive), 1 TB, intern, Datahastighed: 4950 MBps (læs) / 4250 MBps (skriv), IOPS: 680000 (læs) / 600000 (skriv), M.2 2280 (80mm), PCI-Express 4.0 x4 NVMe 1.3 (Non-Volatile Memory Express), 256-bit AES kryptering - Phison PS5016-E16 Controller
