90MB10T0-M0EAY0 - ASUS ROG CROSSHAIR VIII HERO (WI-FI) Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX

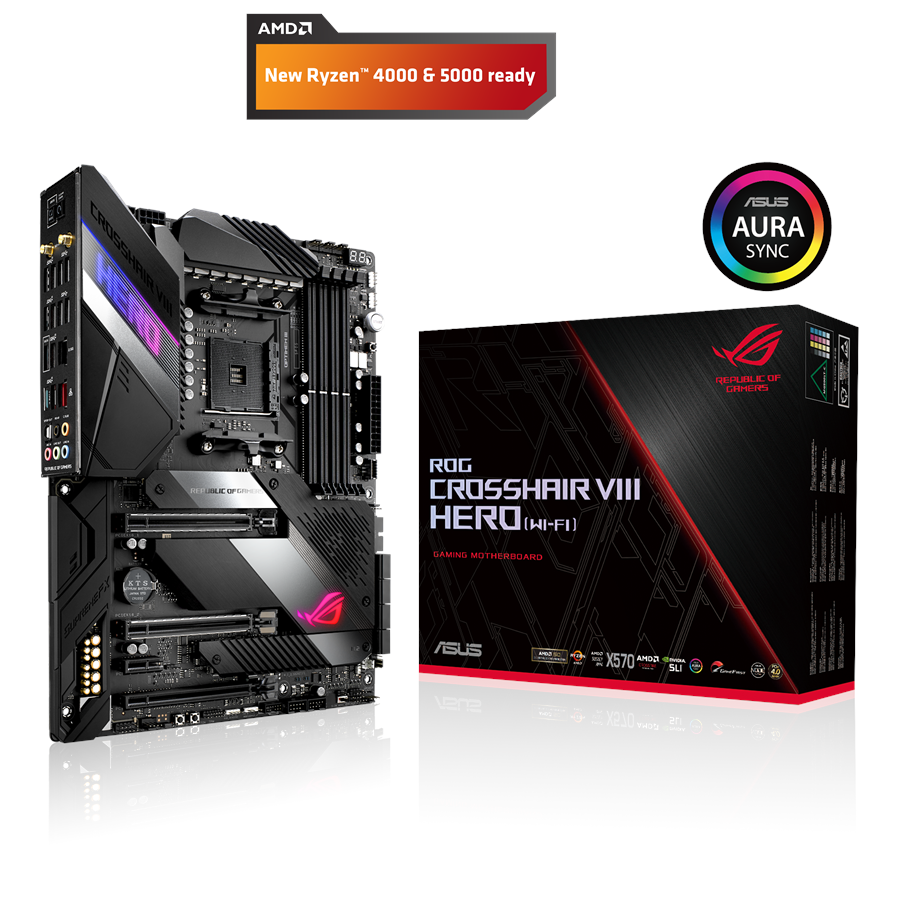

ASUS ROG CROSSHAIR VIII HERO (WI-FI) Bundkort - AMD X570 - AMD AM4 socket - DDR4 RAM - ATX

Bundkort, ATX, AMD AM4 Socket, AMD X570, 2 x PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 8 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, DisplayPort / HDMI (understøtter 4K) tilslutning, Intel I211-AT Gigabit & & Realtek 8125-CG 2.5 Gigabit LAN, Intel Wireless-AX 200 Wireless Wi-Fi 6 (802.11ax) / Bluetooth 5.0, ROG SupremeFX HD Audio (8-kanaler), understøtter SLI / CrossFireX

Varenummer: 2777395
90MB10T0-M0EAY0
90MB10T0-M0EAY0
90MB10T0-M0EAY0
90MB10T0-M0EAY0
90MB10T0-M0EAY0
90MB10T0-M0EAY0
3.652,00 kr.
2.921,60 kr. ekskl. moms
Fjernlager, 3 dages levering
Billigste privatfragt 0,00 kr.
Pick-up Points lagerstatus
Aarhus
0 stk.
Ikke på lager
København
0 stk.
Ikke på lager

Detaljer

Producent: ASUS
Varenummer: 2777395
Model: 90MB10T0-M0EAY0
Ean: 4718017378505

Til producentens hjemmeside

www.asus.com/Motherboards/ROG-...
ProduktbeskrivelseASUS ROG Crosshair VIII Hero (WI-FI) - bundkort - ATX - Socket AM4 - AMD X570
ProdukttypeBundkort - ATX
ChipsættypeAMD X570
Processor-socket1 x Socket AM4
Kompatible processorerRyzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Max RAM-størrelse128 GB
RAM understøttet4 DIMM åbninger - DDR4, ECC, ikke bufferet
Lagringsporte8 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte1 x USB-C Gen 2 + 7 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
AudioHD Audio (8-kanaler)
LANBluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Generelt

Produkttype Bundkort - ATX
Chipsættype AMD X570
Processor-socket Socket AM4
Max antal processorer 1
Kompatible processorer Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)

Understøttet RAM

Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz
Understøttet RAM-integritetskon ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur

Audio

Type HD Audio (8-kanaler)
Audio codec SupremeFX
Overensstemmelsesstandarder High Definition Audio, DTS Sound Unbound

LAN

Netværk controller Intel I211-AT / Realtek RTL8125-CG / Intel AX200
Netværks interfaces Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Ekspansion / Konnektivitet

Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU); PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics))
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2
Interface 1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
4 x USB 3.2 Gen 1
7 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x USB-C Gen2
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB 3.2 Gen 2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber WfM 2.0 understøttet, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3,2 support, ACPI 6,2 support
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber C.P.R. (CPU Parameter Recall), ASUS Q-Design, GameFirst, Q-DIMM, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, NVIDIA 3-way SLI Technology Support, ASUS Extreme Tweaker, ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding teknologi, AMD CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, Preboot eXecution Environment (PXE), Clear CMOS Button, Dual Intelligent Processors 5, LANGuard, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 kølelegeme, præmonteret I/O-skjold, AMD StoreMI technology, ASUS Aura Sync, Armoury Crate, ESS ES9023P, ASUS Node, MicroFine Alloy Chokes, PowIRstage IR3555 MOSFETs, 10K Black Metallic Capacitors, ASUS OptiMem III, ProCool II Power Connector

Diverse

Udstyr inkluderet Ekstern antenne, 1 x M.2 skrue, ROG-coastere, RGB (RGBW) LED strip-forlængerkabel, ROG stor mærkat, ROG-takkekort, RGB Addressable LED-forlængerkabel, Q-Connector
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, RAMdisk, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer
Bredde 30.5 cm
Dybde 24.4 cm

ROG CROSSHAIR VIII HERO (WI-FI)



THE CROSSHAIR VIII HERO (WiFi)

Featuring support for 3rd Gen AMD Ryzen™ CPUs, on-board Wi-Fi 6 (802.11ax), Realtek® 2.5 Gbps LAN and PCIe 4.0, coupled with an overhauled metallic design and loaded with renowned ROG features, it's the perfect foundation for your AMD Ryzen rig.

BOOSTED PERFORMANCE, NO BOTTLENECKS

ROG Crosshair VIII Hero (WiFi) comes equipped with an optimized power-design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors without performance-zapping thermal throttling.

POWER DESIGN THAT BUCKS TRENDS

The monstrous compute power of multi-core processors necessitates a power circuit that rapidly responds to massive current swings. Featuring an array of 16 strategically paired power stages, the Hero's VRM is geared for any workload and all operating conditions.

Robust power delivery starts at the component level. Every aspect of the ROG Crosshair VIII Hero's VRM is generously over-specified for the task.

8-PIN PROCOOL II POWER CONNECTORS - ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines.

POWIRSTAGE® MOSFETS - The VRM is comprised of 16 IR3555 PowIRstages, each rated to handle 60 amps.

MICROFINE ALLOY CHOKES - Each PowIRstage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps

10K JAPANESE-MADE BLACK METALLIC CAPACITORS - Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Conventional motherboard design practices place primary focus on component specs without implementing circuit topologies that provide optimal transient response. The Hero bucks industry trends by utilizing teamed PowIRstages to double the burst current of each phase and rapidly respond to load changes.

COMPREHENSIVE COOLING ZONE

ROG Crosshair VIII Hero (WiFi) features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

Multiple temperature sources - Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

Water pump+ - A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

4-pin PWM/DC fan - Every onboard header supports auto-detection of PWM or DC fans.

Smart protection - A dedicated circuit protects each fan header from over-temperature and over-current.

ROG Water-Cooling Zone - Water In/Out and water-flow headers feed status information straight into the AI Suite utility, so you can keep track of coolant temperatures and the flow rate of the entire loop to ensure the best cooling performance.



ACTIVE CHIPSET HEATSINK SOLUTION

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Formula features an actively cooled heatsink to prevent throttling during sustained transfers.

CUSTOM DELTA SUPERFLO FAN - The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.

AIR DUCT - A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

FINNED HEATSINK - The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.



UNCOMPLICATED SYSTEM TUNING

ROG gives you powerful tools that make optimizing your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organized into intuitive categories that provide the ability to tweak every aspect of your system.

ACCURATE VOLTAGE MONITORING - Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The Hero features a differential sensing circuit that simplifies overclocking and tuning by allowing you to track voltages more accurately.

PERFORMANCE LEVEL UP

AI Suite 3's dashboard-style control panel lets you fine-tune almost every aspect of your system. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.

CPU-PERFORMANCE BOOST - The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.

ALL-AROUND ENERGY EFFICIENCY - With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers

FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID - Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

PRECISE DIGITAL POWER CONTROL - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

TURBO APP - AMD's processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.



ULTRAFAST CONNECTION

ROG Crosshair VIII Hero (WiFi) offers advanced connectivity to ensure seamless gaming experiences. With the latest ultrafast networking, including Wi-Fi 6 (802.11x) and dual Ethernet with one 2.5G port, ROG Crosshair VIII Hero removes all bottlenecks for online and LAN play, minimizing lag and providing an overall smoother experience. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.

WIFI 6 (AX200) - ROG Crosshair VIII Hero (WiFi) comes with on-board Wi-Fi 6 (802.11ax) support, offering ultrafast networking speeds, improved network capacity and better performance in dense Wi-Fi environments for exceptional online gaming experiences with the convenience of a wireless connection.

REALTEK 2.5G LAN - ROG Crosshair VIII Hero (WiFi) features the latest Intel® 2.5G Ethernet that offers a huge speed boost for local networking, such as transferring files between PCs or network-attached storage (NAS) devices. This Intel controller has a natural synergy with Intel processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput – so there's more power for games and other tasks.

INTEL ETHERNET - ROG Crosshair VIII Hero (WiFi) features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

SupremeFX - Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220 codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

UNTHROTTLED TRANSFER SPEED - Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

AMD STOREMI - AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.

ASUS NODE CONNECTOR - ASUS Node is a proprietary bi-directional interface that allow ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders..



THE POWER TO PERSONALIZE

ROG provides a range of intuitive software that enables easy control of your advanced gaming hardware and ensures seamless component compatibility. From RGB lighting, networking and audio to storage optimization and more, ROG gives you the power to personalize your system just the way you want.

GAMEFIRST V NETWORK CONTROL - GameFirst V is an ROG-exclusive tool that optimizes network traffic and your connection for faster, lag-free online gaming. Select the best Wi-Fi channel for maximum stability and minimum interference, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive

aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

GROW YOUR GAMING WORLD - Gear up with ROG components, from graphics and monitors, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.

ARMOURY CRATE - Armoury Crate is a new software utility designed to give you centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of ROG products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.

RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.



RAM

  • CMK16GX4M2Z3600C18 - Corsair Vengeance LPX DDR4-3600 C18 BK DC (AMD optimized) - 16GB
    Corsair Vengeance LPX DDR4-3600 C18 BK DC (AMD optimized) - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3600 MHz / PC4-28800, CL18-22-22-42, 1.35 V, ikke bufferet, ikke-ECC - Optimeret til AMD - Corsair Vengeance LPX serie, Sort
  • CMW16GX4M2Z3600C18 - Corsair Vengeance RGB PRO DDR4-3600 C18 DC - 16GB
    Corsair Vengeance RGB PRO DDR4-3600 C18 DC - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3600 MHz / PC4-28800, CL18-22-22-42, 1.35 V, ikke bufferet, ikke-ECC - Vengeance RGB PRO serie med indbygget RGB LED lys, Sort
  • CMK16GX4M2Z3200C16 - Corsair Vengeance LPX DDR4-3200 C16 BK DC (AMD optimized) - 16GB
    Corsair Vengeance LPX DDR4-3200 C16 BK DC (AMD optimized) - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3200 MHz / PC4-25600, CL16-18-18-36, 1.35 V, ikke bufferet, ikke-ECC - Optimeret til AMD - Corsair Vengeance LPX serie, Sort
  • CMT16GX4M2C3600C18 - Corsair Dominator Platinum RGB DDR4-3600 C18 DC - 16GB
    Corsair Dominator Platinum RGB DDR4-3600 C18 DC - 16GB
    Hukommelse (RAM), 16 GB: 2 x 8 GB (Dual Channel), DIMM 288-pin, DDR4, 3600 MHz / PC4-28800, CL18-19-19-39, 1.35 V, ikke bufferet, ikke-ECC - Dominator Platinum RGB med indbygget CAPELLUX RGB LED
  • CMT32GX4M4Z3200C16 - Corsair Dominator Platinum RGB DDR4-3200 C16 QC - 32GB
    Corsair Dominator Platinum RGB DDR4-3200 C16 QC - 32GB
    Hukommelse (RAM), 32 GB: 4 x 8 GB (Quad Channel), DIMM 288-pin, DDR4, 3200 MHz / PC4-25600, CL16-18-18-36, 1.35 V, ikke bufferet, ikke-ECC - Dominator Platinum RGB (AMD udgave) med indbygget CAPELLUX RGB LED

SSD

  • CSSD-F1000GBMP600 - Corsair Force MP600 NVMe Gen4 M.2 - 1TB
    Corsair Force MP600 NVMe Gen4 M.2 - 1TB
    SSD (Solid state drive), 1 TB, intern, Datahastighed: 4950 MBps (læs) / 4250 MBps (skriv), IOPS: 680000 (læs) / 600000 (skriv), M.2 2280 (80mm), PCI-Express 4.0 x4 NVMe 1.3 (Non-Volatile Memory Express), 256-bit AES kryptering - Phison PS5016-E16 Controller
  • CSSD-F2000GBMP600 - Corsair Force MP600 NVMe Gen4 M.2 - 2TB
    Corsair Force MP600 NVMe Gen4 M.2 - 2TB
    SSD (Solid state drive), 2 TB, intern, Datahastighed: 4950 MBps (læs) / 4250 MBps (skriv), IOPS: 680000 (læs) / 600000 (skriv), M.2 2280 (80mm), PCI-Express 4.0 x4 NVMe 1.3 (Non-Volatile Memory Express), 256-bit AES kryptering - Phison PS5016-E16 Controller

CPU

  • 100-100000025BOX - AMD Ryzen 7 3800X Wraith Prism CPU - 8 kerner 3.9 GHz - AMD AM4 - AMD Boxed (PIB - med køler)
    AMD Ryzen 7 3800X Wraith Prism CPU - 8 kerner 3.9 GHz - AMD AM4 - AMD Boxed (PIB...
    Processor (CPU), 3.9 GHz (4.5 GHz Turbo), Unlocked (kan overclockes), 8 kerner (Octa Core), 16 tråde, 32 MB cache, understøtter Dual Channel DDR4-3200 RAM, 24 PCI Express Gen 4.0 Lanes, AM4 Socket, 105 watt TDP, Box (inkl Wraith Prism køler)
  • 100-100000031BOX - AMD Ryzen 5 3600 Wraith Stealth CPU - 6 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PIB - med køler)
    AMD Ryzen 5 3600 Wraith Stealth CPU - 6 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PI...
    Processor (CPU), 3.6 GHz (4.2 GHz Turbo), Unlocked (kan overclockes), 6 kerner (Hexa Core), 12 tråde, 32 MB cache, understøtter Dual Channel DDR4-3200 RAM, 24 PCI Express Gen 4.0 Lanes, AM4 Socket, 65 watt TDP, Box (inkl Wraith Stealth køler)
  • 100-100000071BOX - AMD Ryzen 7 3700X Wraith Prism CPU - 8 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PIB - med køler)
    AMD Ryzen 7 3700X Wraith Prism CPU - 8 kerner 3.6 GHz - AMD AM4 - AMD Boxed (PIB...
    Processor (CPU), 3.6 GHz (4.4 GHz Turbo), Unlocked (kan overclockes), 8 kerner (Octa Core), 16 tråde, 32 MB cache, understøtter Dual Channel DDR4-3200 RAM, 24 PCI Express Gen 4.0 Lanes, AM4 Socket, 65 watt TDP, Box (inkl Wraith Prism køler)
