Varenummer: 2848630

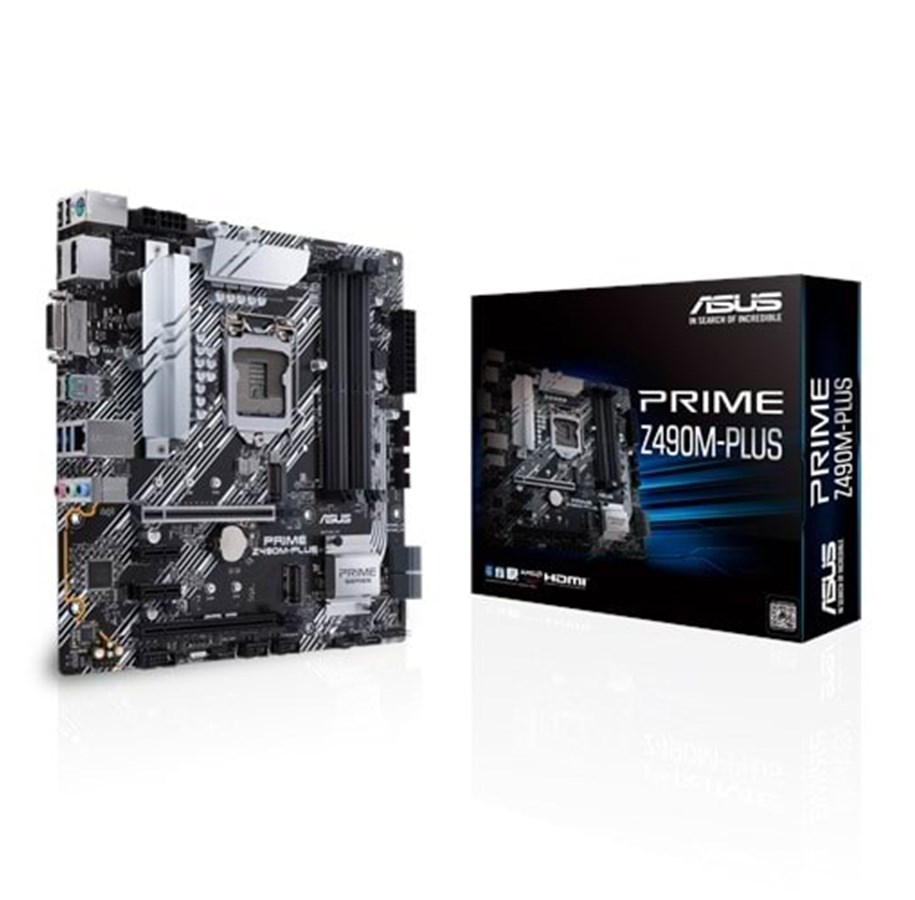

ASUS PRIME Z490M-PLUS Bundkort - Intel Z490 - Intel LGA1200 socket - DDR4 RAM - ATX

Bundkort, Micro-ATX, Intel LGA1200 Socket, Intel Z490, 2 x PCI-Express 3.0 x16, Dual DDR4-2933 - 4 x DIMM slots, 4 x SATA-600 / 2 x M.2 NVMe (2242 / 2260 / 2280), USB 3.2 Type A & C, DVI-D / DisplayPort / HDMI tilslutning, Intel I219-V Gigabit LAN, Intel HD Graphics understøttelse (CPU påkrævet), Realtek ALC887 HD Audio (8-kanaler), understøtter CrossFireX

Varen er udgået
Se lignende produkter

Prime Z490M-Plus

Zenbook 14


• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

• Enhanced power solution: 8+1 DrMOS power stages, ProCool connector, alloy chokes and durable capacitors for stable power delivery

• Comprehensive cooling: VRM heatsink, hybrid fan headers and Fan Xpert 4

• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking

• Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A® and Type-C® support

• Next-gen connectivity: Intel® 2.5 Gb Ethernet, front USB 3.2 Gen 2 Type-C® and Thunderbolt™ 3 header support

Zenbook 14

Prime Z490M-Plus

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z490 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z490 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Zenbook 14

Flexible Air- and Liquid-Cooling Controls

Fan Xpert 4 software provides comprehensive control over fans, and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, and AiO coolers can also be controlled via the UEFI BIOS.

Zenbook 14

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function - Quickly and easily find the option or setting you need.

ASUS User Profile - Port configuration settings between different BIOS versions or share them with friends.

FlexKey - Remap the reset button on the chassis to toggle Aura lighting, activate the DirectKey to go straight to the UEFI BIOS, or reset the system.

Cool to the Core

Prime Z490 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Zenbook 14

VRM Heatsink and Thermal Pads

Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Zenbook 14

Cooler by Design

Prime Z490 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Multiple Temperature Sources - Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AiO Pump Header - A dedicated PWM/DC header for self-contained water-cooling setups.

4-Pin PWM/DC Fan - Each onboard header supports auto-detection of PWM or DC fans.

Build on a Solid Foundation

Prime Z490 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A Z490 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Zenbook 14

Robust Power Design

Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime Z490 is geared to cater to the demands of these high-core count CPUs.

1. ProCool Connector: Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. The 8-pin connector features solid pins that can handle more current than hollow-pin connectors.

2. 8+1 DrMOS Power Stages: A VRM with 8+1 DrMOS power stages delivers the power and efficiency that the latest Intel processors demand.

Zenbook 14

Dual M.2 (up to 32 Gbps)

Dual M.2 slots support data-transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

Zenbook 14

USB 3.2 Gen 2 Type-A & Type-C

Numerous USB ports support high-end rigs loaded with peripherals, including a USB Type-A® and a Type-C® connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Zenbook 14

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

• Strengthened solder points around the PCIe and DIMM pins.

• Metal inserts keep graphics cards properly aligned during installation.

• The metal side-panels feature hooks that firmly clasp the slot body.

RAM

CPU

Producent
Varenummer
2848630
Model
90MB12W0-M0EAY0
Ean
4718017667821
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS PRIME Z490M-PLUS - bundkort - micro ATX - LGA1200 sokkel - Z490
Produkttype
Bundkort - micro ATX
Chipsættype
Intel Z490
Processor-socket
1 x LGA1200 sokkel
Kompatible processorer
(understøtter 10. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
5 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
Intel Z490
Processor-socket
LGA1200 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 10. Generation Intel Core / Pentium Gold / Celeron)

Understøttet RAM

Maks. størrelse
128 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Intel I219V
Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4-modus)
2 x PCIe 3.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
PCIe 3.0 -stikforbindelser: 1 x M.2
RAID-egenskaber
Intel Rapid Storage Technology
Interface
1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x PS/2-tastatur/mus
1 x USB-C Gen2
1 x DisplayPort
1 x HDMI
1 x DVI-D
2 x USB 2.0
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x SPDIF ud - intern stik
1 x audio - intern stik
1 x seriel - intern stik
Strømkontakter
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
ASUS Quiet Thermal Solution, UEFI BIOS
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, AMD CrossFireX-teknologisupport, Preboot eXecution Environment (PXE), LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, Armoury Crate, ASUS SafeSlot Core+, 8+1 DrMOS strømstadier

Diverse

Udstyr inkluderet
I/O- bagvæg, 1 x M.2 skrue
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, WinRAR
Bredde
24.4 cm
Dybde
24.4 cm
