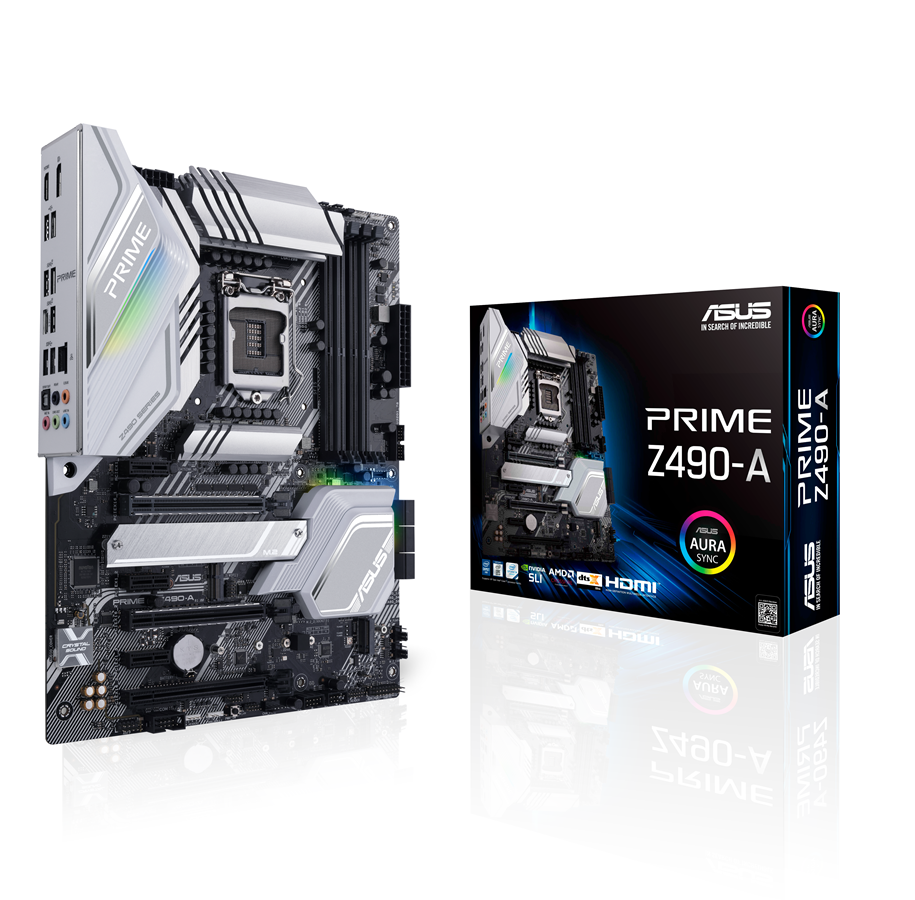

ASUS PRIME Z490-A Bundkort - Intel Z490 - Intel LGA1200 socket - DDR4 RAM - ATX

• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

• Enhanced power solution: 12+2 DrMOS power stages, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery

• AI Overclocking: Quickly optimizes CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts

• AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature

• 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocking and intelligent cooling for CPU or GPU-intensive tasks

• Comprehensive cooling: VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4

• Next-gen connectivity: Intel® 2.5 Gb Ethernet, front USB 3.2 Gen 2 Type-C® and Thunderbolt™ 3 header support

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z490 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z490 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

ASUS AI Overclocking

ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings. Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.

AI OVERCLOCKING AT A GLANCE

Designed by Experts - At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.

Predictive Edge - The algorithm analyzes your CPU and cooling system, and based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency and voltage.

Real-time Adjustments - The software monitors workload, system temperature, fan speed and power draw every minute and it makes real-time adjustments to ensure ongoing optimal performance.

AI COOLING

ASUS AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.

CPU Temperature Detection - AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

Automated Optimization - Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.

Ongoing Monitoring - AI Cooling continues to monitor the system and adjust fan speed based on current load.

Self-Adaptive Fan Tuning

CPU Temperature Detection - AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

Automated Optimization - Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.

Ongoing Monitoring - AI Cooling continues to monitor the system and adjust fan speed based on current load.

Cool to the Core

Prime Z490 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

An M.2 drive sits under a passive heatsink to ward off the throttling that can occur with sustained transfers. The heatsink is held in place by easily-removable captive screws, giving you the flexibility to move it to another M.2 slot.

1. Removable captive screws reduce risk of drops or loss during heatsink removal.

VRM Heatsink and Thermal Pads

Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. A bundled fan holder provides additional cooling options.

Build on a Solid Foundation

Prime Z490 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A Z490 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime Z490 motherboard is geared to cater to the demands of these high-core count CPUs.

1. ProCool Connectors: Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

2. 12+2 Power Stages: A VRM with 12+2 power stages delivers the power and efficiency that the latest Intel processors demand.

Dual M.2 (up to 32 Gbps)

Dual M.2 slots support data-transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

USB 3.2 Gen 2 Type-A & Type-C

Numerous USB ports support high-end rigs loaded with peripherals, including a front-panel USB Type-C® connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Thunderbolt™ 3 Support

Prime Z490-A supports ThunderboltEX 3-TR, an Intel certified Thunderbolt™ 3 add-on card that enables bi-directional speeds of up to 40 Gbps via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100 watts of power to fast-charge devices.

Intel® 2.5 Gb Ethernet

Intel Ethernet Connection I225-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
