Varenummer: 3209145

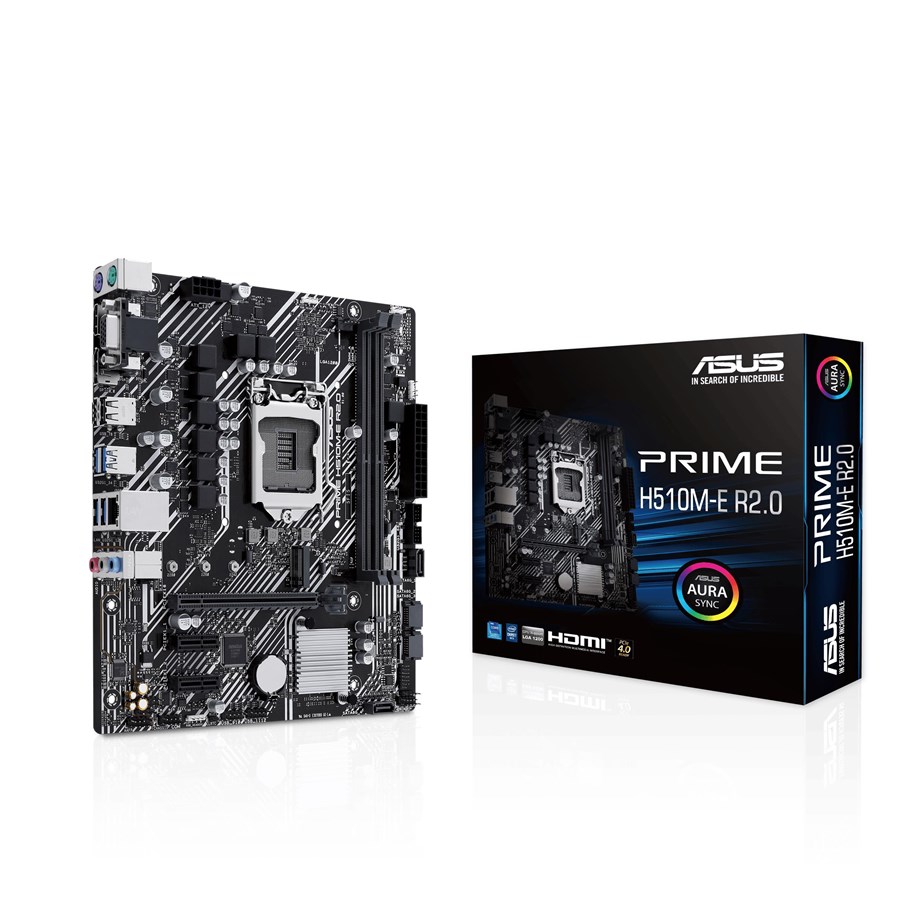

ASUS PRIME H510M-E R2.0 Bundkort - Intel H470 - Intel LGA1200 - DDR4 RAM - Micro-ATX

Bundkort, størrelse: Micro-ATX, Intel LGA1200 socket, Intel H470 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 2 x DIMM slots (Intel XMP support), lagrings tilslutninger: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1 / 1 x VGA, Realtek 1 Gigabit netværk (LAN), Intel Xe Graphics supporteret (CPU med VGA påkrævet), Realtek HD Audio (8-kanaler)

Varen er udgået

The ASUS PRIME H510M-E R2.0 motherboard is designed to cater to the needs of diverse users, from gamers to professional content creators. It features a micro ATX form factor, making it a perfect fit for compact builds. With support for Intel processors via the LGA1200 socket, it ensures compatibility with a wide range of CPUs. The motherboard's dual-channel memory architecture allows for up to 3200 MHz (O.C.) RAM speeds, facilitating smooth and efficient multitasking and application performance.Connectivity is a strong suit of the PRIME H510M-E R2.0, offering a variety of ports including HDMI, VGA, and DisplayPort for multiple display setups, alongside USB 3.2 Gen 1 for high-speed data transfer. The inclusion of Gigabit Ethernet also ensures fast and reliable network connections. Audio enthusiasts will appreciate the high definition audio with 8-channel support, providing an immersive sound experience.Durability and reliability are ensured through ASUS 5X Protection III, which includes features like LANGuard, Overvoltage Protection, and a Stainless Steel Back I/O, protecting the motherboard from potential damage and extending its lifespan. Additionally, the ASUS EPU and DIGI+ VRM offer efficient power management, optimizing performance while minimizing energy consumption. Whether building a new PC or upgrading an existing system, the ASUS PRIME H510M-E R2.0 motherboard stands out as a versatile, durable, and high-performance choice.

Producent
Varenummer
3209145
Model
90MB1FQ0-M0EAY0
Ean
4711387234945
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS PRIME H510M-E R2.0 - bundkort - micro ATX - LGA1200 sokkel - H470
Produkttype
Bundkort - micro ATX
Chipsættype
Intel H470
Processor-socket
1 x LGA1200 sokkel
Kompatible processorer
(understøtter 11. og 10. Generation Intel Core i5 / i7 / i9, 10. Generation Intel Core i3 / Pentium / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
2 DIMM slots - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600, 1 x M.2
USB / FireWire porte
4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
Intel H470
Processor-socket
LGA1200 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 11. og 10. Generation Intel Core i5 / i7 / i9, 10. Generation Intel Core i3 / Pentium / Celeron)

Understøttet RAM

Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887/ALC897
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 4.0 x16 (PCIe 4.0 (11. Gen Intel CPUer), PCIe 3.0 (10. Gen Intel CPUer))
2 x PCIe 3.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
Interface
1 x HDMI
1 x VGA
1 x DisplayPort
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x PS/2-tastatur
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-mus
1 x LAN (Gigabit Ethernet)
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x SPDIF ud - intern stik
1 x audio - intern stik
1 x højttaler - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, jack retasking, audio jack detektions teknologi, LANGuard, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), Q-LED Core

Diverse

Udstyr inkluderet
I/O- bagvæg, 1 x M.2 skrue
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Drivers & Utilities, ASUS AI Suite III, ASUS EZ Update, ASUS CPU-Z, ASUS AI Charger, Norton 360 Deluxe (60 dages prøvetid), WinRAR
Overensstemmelsesstandarder
DisplayPort 1.4
Bredde
22.6 cm
Dybde
21.1 cm
