90MB18X0-M0EAY0 - ASUS PRIME B660-PLUS D4 Bundkort - Intel B660 - Intel LGA1700 socket - DDR4 RAM - ATX

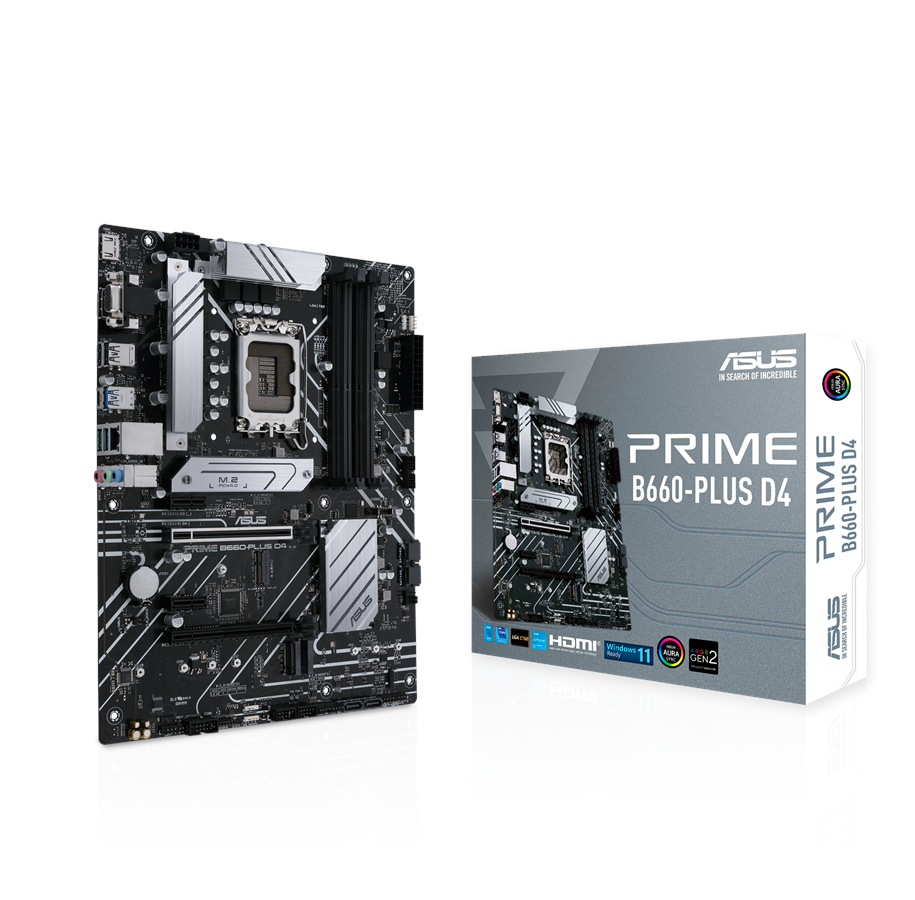

ASUS PRIME B660-PLUS D4 Bundkort - Intel B660 - Intel LGA1700 socket - DDR4 RAM - ATX

Bundkort, ATX, Intel LGA1700 Socket, Intel B660, 1 x PCI-Express 4.0 x16 & 1 x PCI-Express 3.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 4 x SATA-600 / 3 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, D-Sub / DisplayPort 1.4 / HDMI

Varenummer: 3024279
1.348,00 kr.
1.078,40 kr. ekskl. moms
På lager – levering i morgen (bestil inden 22.00)
Billigste privatfragt 0,00 kr.
Pick-up Points lagerstatus
Aarhus
+15 stk.
På lager, kan afhentes
København
0 stk.
Kan bestilles til afhentning - afvent derefter klarmelding via email

Detaljer

Producent: ASUS
Varenummer: 3024279
Model: 90MB18X0-M0EAY0
Ean: 4711081523017

Til producentens hjemmeside

www.asus.com/index.aspx
ProduktbeskrivelseASUS PRIME B660-PLUS D4 - bundkort - ATX - LGA1700 sokkel - B660
ProdukttypeBundkort - ATX
ChipsættypeIntel B660
Processor-socket1 x LGA1700 sokkel
Kompatible processorer(understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse128 GB
RAM understøttet4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
Lagringsporte4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
AudioHD Audio (8-kanaler)
LAN2.5 Gigabit Ethernet

Generelt

Produkttype Bundkort - ATX
Chipsættype Intel B660
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)

Understøttet RAM

Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-kanaler)
Overensstemmelsesstandarder High Definition Audio

LAN

Netværks interfaces 2.5 Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4-modus)
2 x PCIe 3.0 x1
1 x M.2 socket (Key E)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 3 x M.2
RAID-egenskaber Intel Rapid Storage Technology
Interface 1 x HDMI
1 x DisplayPort
1 x VGA
1 x LAN (2.5Gigabit Ethernet)
1 x USB-C Gen2x2
2 x USB 2.0
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
Interne interfaces 4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen 1 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x Thunderbolt - intern stik
1 x SPDIF ud - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+

Diverse

Udstyr inkluderet I/O- bagvæg, 3 x M.2 skruer, 1 x M.2 gummipakke
Medfølgende ledninger 2 x Seriel ATA kabel
Med software Drivers & Utilities, ASUS CPU-Z, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator
Overensstemmelsesstandarder DisplayPort 1.4
Bredde 30.5 cm
Dybde 24.4 cm
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B660 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
