Varenummer: 2174702

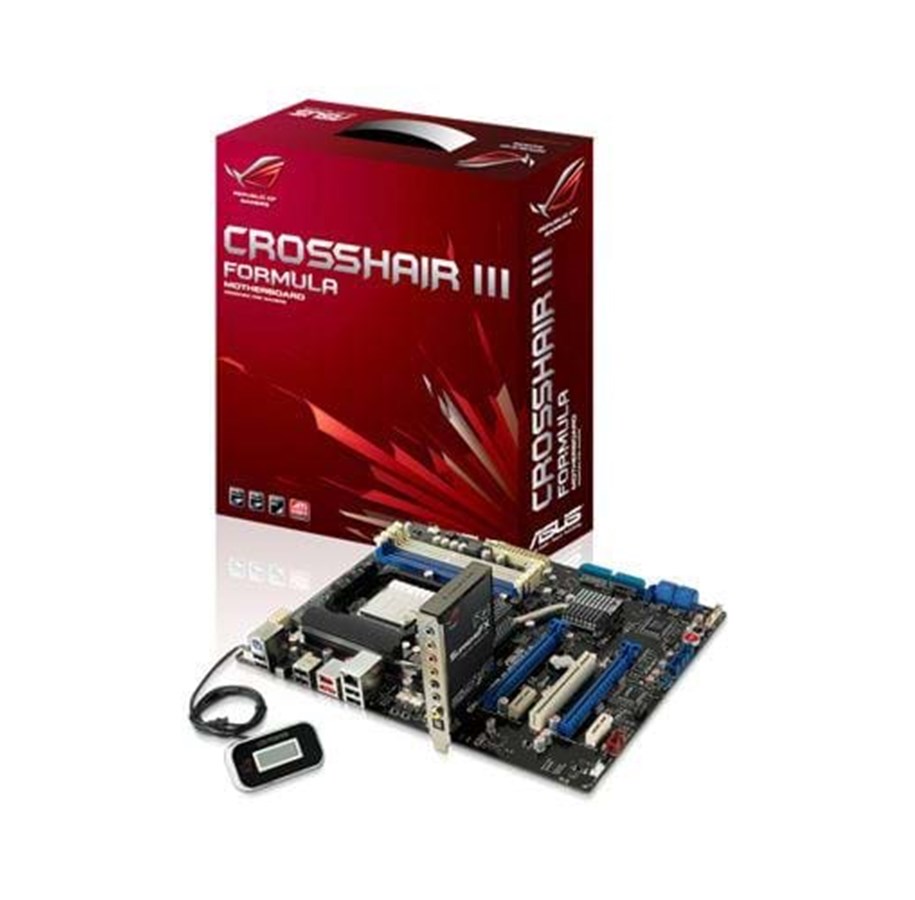

ASUS CROSSHAIR III FORMULA Bundkort - AMD 790FX - AMD AM3 socket - DDR3 RAM - ATX

Bundkort, ATX, AMD Socket AM3, AMD 990FX, Dual DDR3-1333, USB 2.0, FireWire, Gigabit LAN, HD Audio (8-kanaler), Understøtter CrossFire - Republic Of Gamers

Varen er udgået

The Republic of Gamers consists only the best of the best. We offer the best hardware engineering, the fastest performance, the most innovating ideas, and we welcome the best gamers to join in.

In the Republic of Gamers, mercy rules are only for the weak, and bragging rights means everything. We believe in making statements and we excel in competitions. If your character matches our trait, then join the elite club, make your presence felt, in the Republic of Gamers.

AMD 790FX chipset is designed to support up to 5200MT/s HyperTransport 3.0 (HT 3.0) interface speed and quad PCI Express 2.0 x16 graphics. It is optimized with AMD AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.

ATI's CrossFireX boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX allows higher anti-aliasing, anisotropic filtering, shading, and texture settings. Adjust your display configurations, experiment with the advanced 3D settings, and check the effects with real-time 3D-rendered previews within ATI Catalyst control center.

Any memory is A-OK! Memory compatibility is among the top concerns when it comes to computer upgrades. Worry no more, MemOK! is the fastest memory booting solution today. This remarkable memory rescue tool requires nothing but a push of a button to patch memory issues and get your system up and running in no time. The technology is able to determine failsafe settings that can dramatically improve system booting success.

Ever wish that you could have a more expansive CPU? Upgrade your CPU at no additional cost with ROG's CPU level up! Simply pick the processor you wanted to OC to and the motherboard will do the rest! See the CPU speed and enjoy that performance instantly. Overclocking is never as easy as this.

Compare with traditional stacked-fin heatpipe solution, the generation pin-fin thermal design result in better thermal performance, which enlarges the "heat-exchange" surface area surface and breaks the "Boundary-layer" phenomenon for effective airflow. The pin-fin thermal module is the most efficient thermal system there is on the motherboard.

The iROG is a special IC which enables several ROG highlighted functions that gives users full disposal of the motherboard at any stage! This design allows advanced user control and management to be processed purely at a hardware level. iROG greatly increases fun during overclocking for PC enthusiasts and it offers system maintenance and management with more control and efficiency.

Debug and read system problems with an external look! The LCD poster now posts critical post information in an ever friendly and flexible external display. When system malfunction occurs, the LCD poster automatically detects device failure and translates the errors on the LCD during post.

Producent
Varenummer
2174702
Model
90-MIB8V0-G0EAY00Z
Ean
4719543171165
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS Crosshair III Formula Republic of Gamers - bundkort - ATX - Socket AM3 - AMD 790FX
Produkttype
Bundkort - ATX
Chipsættype
AMD 790FX / AMD SB750
Processor-socket
1 x Socket AM3
Kompatible processorer
Phenom II X3, Athlon II X2, Phenom II X2, Phenom II X4
Max RAM-størrelse
16 GB
RAM understøttet
4 DIMM åbninger - DDR3, ikke-ECC, ECC, ikke bufferet
Lagringsporte
1 x ATA, 5 x SATA, 1 x eSATA
USB / FireWire porte
FireWire
USB Port Konfiguration
12 x USB
FireWire Port Konfiguration
2 x FireWire
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Microsoft Certification
Certificeret til Windows Vista

Generelt

Produkttype
Bundkort - ATX
Chipsættype
AMD 790FX / AMD SB750
Maks. bushastighed
2600 MHz
Processor-socket
Socket AM3
Max antal processorer
1
Kompatible processorer
Phenom II X3, Athlon II X2, Phenom II X2, Phenom II X4

Understøttet RAM

Maks. størrelse
16 GB
Teknologi
DDR3
Bus Clock
1333 MHz, 1066 MHz
Hastighed
PC3-10666, PC3-8500
Understøttet RAM-integritetskon
Ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur

Audio

Type
HD Audio (8-kanaler)
Audio codec
SupremeFX X-Fi (AD2000B)
Overensstemmelsesstandarder
EAX 4.0, EAX ADVANCED HD, High Definition Audio

LAN

Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 240-pins
2 x PCIe 2.0 x16
3 x PCIe 2.0 x1
1 x PCI
Grænseflade (lagring)
AMD SB750: ATA-133 -stikforbindelser: 1 x 40 pin IDC - 2 enheder
AMD SB750: SATA-300 -stikforbindelser: 5 x 7pin SATA - 5 enheder - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD
AMD SB750: SATA-300 -stikforbindelser: 1 x 7-pin ekstern SATA - 1 enheder
Interface
1 x PS/2-tastatur
1 x IEEE 1394 (FireWire) - 6 pin mini-DIN (PS/2 stil)
1 x LAN (Gigabit Ethernet)
6 x USB 2.0
Ekstra tilslutninger (valgfrit)
1 x IEEE 1394 (FireWire), 6 x USB 2.0
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
DMI 2.0-understøttet, WfM 2.0 understøttet, Flersproget BIOS, ASUS EZ Flash 2, ASUS MyLogo3, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.4 support
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), ringningsaktiveret (WOR) [wake on ring]
Hardware egenskaber
C.P.R. (CPU Parameter Recall), AMD Cool 'n' Quiet Technology, ASUS Q-Fan 2, MemOK!, Stack Cool 2, CrashFree BIOS 3, ASUS Q-Connector, LCD Poster, Onboard Switch, ASUS AI NET2, ASUS Noise Filter, ASUS CPU Level Up, ASUS COP EX, Voltiminder LED, ASUS Q-Shield, ASUS Extreme Tweaker, ASUS Loadline Calibration, ASUS Pin-Fin Thermal Module, ASUS 8+2 Phase Power Design, ASUS iROG, ASUS TurboV, AMD CrossFireX-teknologisupport

Diverse

Med software
Drivers & Utilities, ASUS Live Update, ASUS PC Probe 2, Kaspersky Anti-Virus, Futuremark 3DMark 06 Advanced Edition, ASUS AI Suite, AMD OverDrive
Certificeret til Windows Vista
Programmer og enheder med logoet "Certificeret til Windows Vista" har gennemgået en kompatibilitetstest for at sikre let anvendelse, bedre ydelse og øget sikkerhed.
Overensstemmelsesstandarder
Plug and Play, ACPI 2.0
Bredde
30.5 cm
Dybde
24.5 cm
