90-MXBI60-A0UAYZ - ASRock Z690 Phantom Gaming 4/D5 Bundkort - Intel Z690 - Intel LGA1700 socket - DDR5 RAM - ATX
Varenummer: 3021331

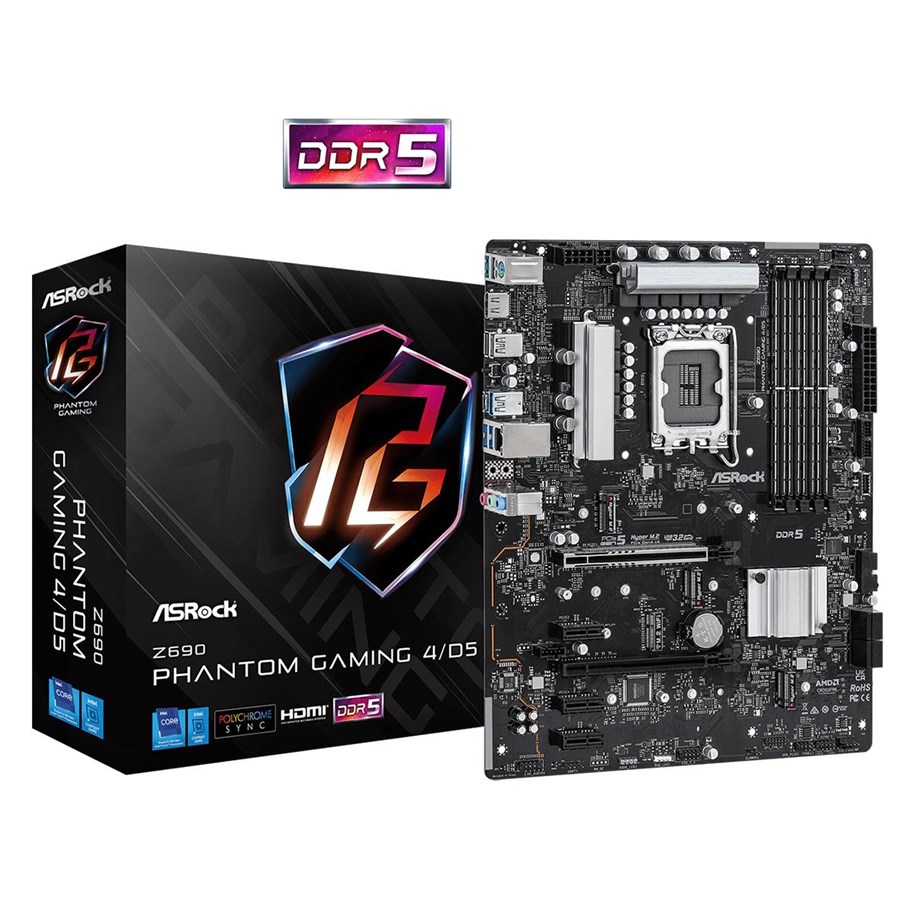

ASRock Z690 Phantom Gaming 4/D5 Bundkort - Intel Z690 - Intel LGA1700 socket - DDR5 RAM - ATX

Bundkort, ATX, Intel LGA1700 Socket, Intel Z690, 1 x PCI-Express 5.0 x16 & 1 x PCI-Express 4.0 x16, Dual DDR5-4800 - 4 x DIMM slots, 4 x SATA-600 / 3 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, HDMI 2.1 tilslutning, Intel I219-V Gigabit LAN, Intel Xe Graphics understøttelse (CPU påkrævet), Realtek ALC897 HD Audio (8-kanaler)

1.607,00 kr.
1.285,60 kr. ekskl. moms
På lager - 1-2 dages levering
Billigste privatfragt 0,00 kr.

Pick-up Points lagerstatus

  • Aarhus (2 stk.)

    På lager, kan afhentes
  • København (0 stk.)

    Bestil nu og afhent tirsdag efter kl. 12

Detaljer

Producent: ASRock
Varenummer: 3021331
Model: 90-MXBI60-A0UAYZ
Ean: 4710483936166

Til producentens hjemmeside

www.asrock.com/mb/Intel/Z690%2...
ProduktbeskrivelseASRock Z690 Phantom Gaming 4/D5 - bundkort - ATX - LGA1700 sokkel - Z690
ProdukttypeBundkort - ATX
ChipsættypeIntel Z690
Processor-socket1 x LGA1700 sokkel
Kompatible processorer(understøtter 12. Generation Intel Core)
Max RAM-størrelse128 GB
RAM understøttet4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte4 x SATA-600 (RAID), 3 x Hyper M.2
USB / FireWire porte1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
AudioHD Audio (8-kanaler)
LANGigabit Ethernet

Generelt

Produkttype Bundkort - ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core)

Understøttet RAM

Maks. størrelse 128 GB
Teknologi DDR5
Bus Clock 5800 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-kanaler)
Audio codec Realtek ALC897
Overensstemmelsesstandarder High Definition Audio

LAN

Netværk controller Intel I219V
Netværks interfaces Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
2 x PCIe 5.0 x16 (dobbelt x16, x4 tilstand; enkeltkort: x16 tilstand; PCIe 4.0 (11. Gen Intel CPUer), PCIe 3.0 (10. Gen Intel CPUer))
3 x PCIe 3.0 x1
1 x M.2 socket (Key E)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 5
Interface 2 x USB 2.0
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
4 x USB 3.2 Gen 1
1 x PS/2-tastatur/mus
1 x HDMI
1 x LAN (Gigabit Ethernet)
1 x USB-C Gen2
1 x USB 3.2 Gen 2
Interne interfaces 1 x SPI - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
2 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen 2x2 - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber Flersproget BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6,0 support
Hardwareovervågning CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber ASRock Instant Flash, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, Premium 50A Power Choke, ASRock Steel Slots, 9 Phase Power Design, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), DIY Friendly Design, ASRock Hyper M.2, ASRock USB 3.2 Gen2, Surface Mount Technology (SMT), Intel Hybrid Technology

Diverse

Udstyr inkluderet I/O- bagvæg, 4 x M.2 skruer
Medfølgende ledninger 2 x Seriel ATA kabel
Med software Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC
Overensstemmelsesstandarder FCC, EuP Ready, ErP Ready, HDCP 2.3
Bredde 30.5 cm
Dybde 24.4 cm
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a different gaming experience to gamers!
