Varenummer: 2621231

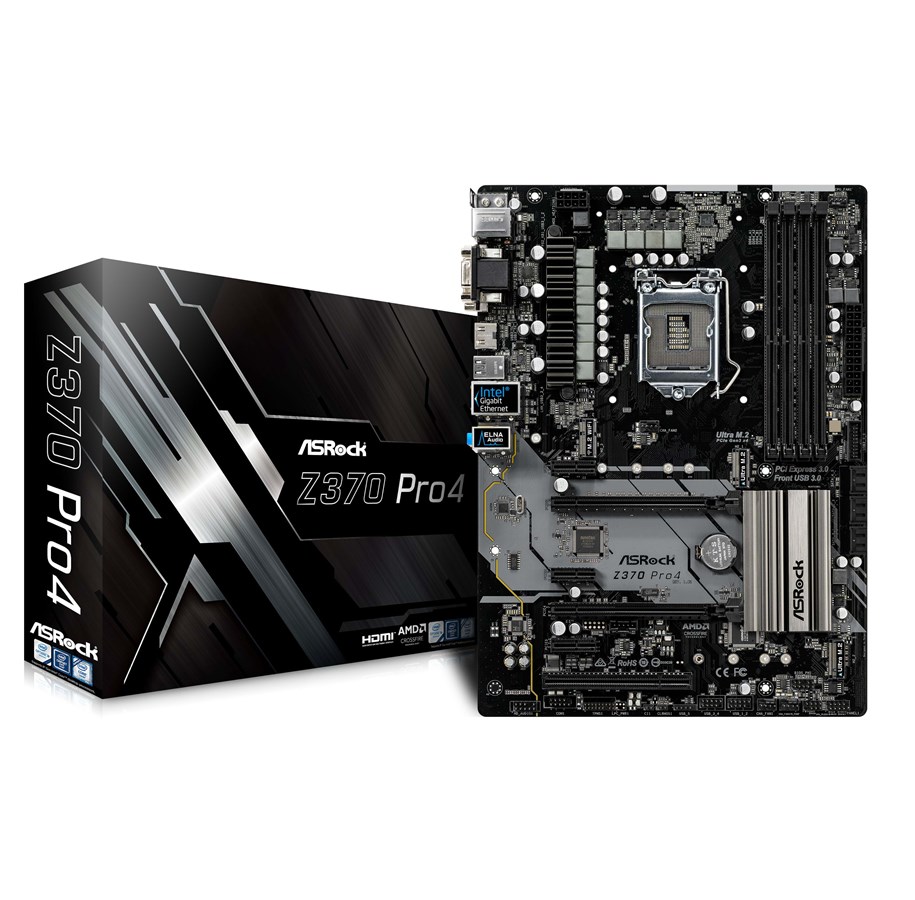

ASRock Z370 Pro4 Bundkort - Intel Z370 - Intel LGA1151 socket - DDR4 RAM - ATX

Bundkort, ATX, Intel LGA1151 Socket, Intel Z370, 2 x PCI-Express x16, Dual DDR4-2666 - 4 x DIMM slots, 6 x SATA-600 / 2 x M.2 NVMe (2242 / 2260 / 2280), USB 3.1 Type A & C, D-Sub / DVI-D / HDMI (understøtter 4K), Intel Gigabit LAN, Intel HD Graphics understøttelse (CPU påkrævet), Realtek ALC892 HD Audio (8-kanaler), understøtter CrossFireX

OBS - understøtter kun Intel Coffee Lake 8. generations Core arkitektur! Er ikke bagud kompatibel med Intel 6. generation Skylake og 7. generation Kaby Lake understøttes ikke trods LGA1151 socket.

Varen er udgået
Se lignende produkter

Prepare yourself well to enjoy the impressive world of virtual reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR ready motherboards are definitely the one you're looking for. The sturdy components and rock-solid performance make you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. The reversible USB Type-C design fits the connector either way. POOL technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance. LAN provides great throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Producent
Varenummer
2621231
Model
90-MXB5X0-A0UAYZ
Ean
4717677334180
Til producentens hjemmeside
Produktbeskrivelse
ASRock Z370 Pro4 - bundkort - ATX - LGA1151 Socket - Z370
Produkttype
Bundkort - ATX
Chipsættype
Intel Z370
Processor-socket
1 x LGA1151 Socket
Kompatible processorer
Core i5, Core i3, Core i7 (understøtter 8. Generation Intel Core i3 / i5 / i7)
Max RAM-størrelse
64 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 2 x Ultra M.2
USB / FireWire porte
1 x USB-C Gen 1 + 5 x USB 3.1 Gen 1 + (2 x USB 3.1 Gen 1 + 5 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
1 GB
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - ATX
Chipsættype
Intel Z370
Processor-socket
LGA1151 Socket
Max antal processorer
1
Kompatible processorer
Core i5, Core i3, Core i7 (understøtter 8. Generation Intel Core i3 / i5 / i7)

Understøttet RAM

Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0, understøttede ECC-moduler fungerer i ikke-ECC-tilstand

Grafik

Maks. allokeret RAM-størrelse
1 GB

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC892
Overensstemmelsesstandarder
High Definition Audio, Premium Blu-ray audiosupport

LAN

Netværk controller
Intel I219V
Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4-modus)
3 x PCIe 3.0 x1
1 x PCI
1 x M.2 socket (Key E)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -stikforbindelser: 2 x Ultra M.2
RAID-egenskaber
Intel Rapid Storage Technology
Interface
1 x HDMI
5 x USB 3.1 Gen 1
1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x DVI-D
1 x USB-C Gen1
1 x VGA
1 x PS/2-tastatur/mus
Interne interfaces
5 x USB 2.0 - intern stik
2 x USB 3.1 Gen 1 - intern stik
1 x seriel - intern stik
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
Flersproget BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6,0 support
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber
Chassis intrusion styring, ASRock Instant Flash, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock Crashless BIOS, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock BCLK, ELNA Audio Capacitors, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, 10 Phase Power Design, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Premium 45A Power Choke, Premium Memory Alloy Choke, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
