Varenummer: 2653966

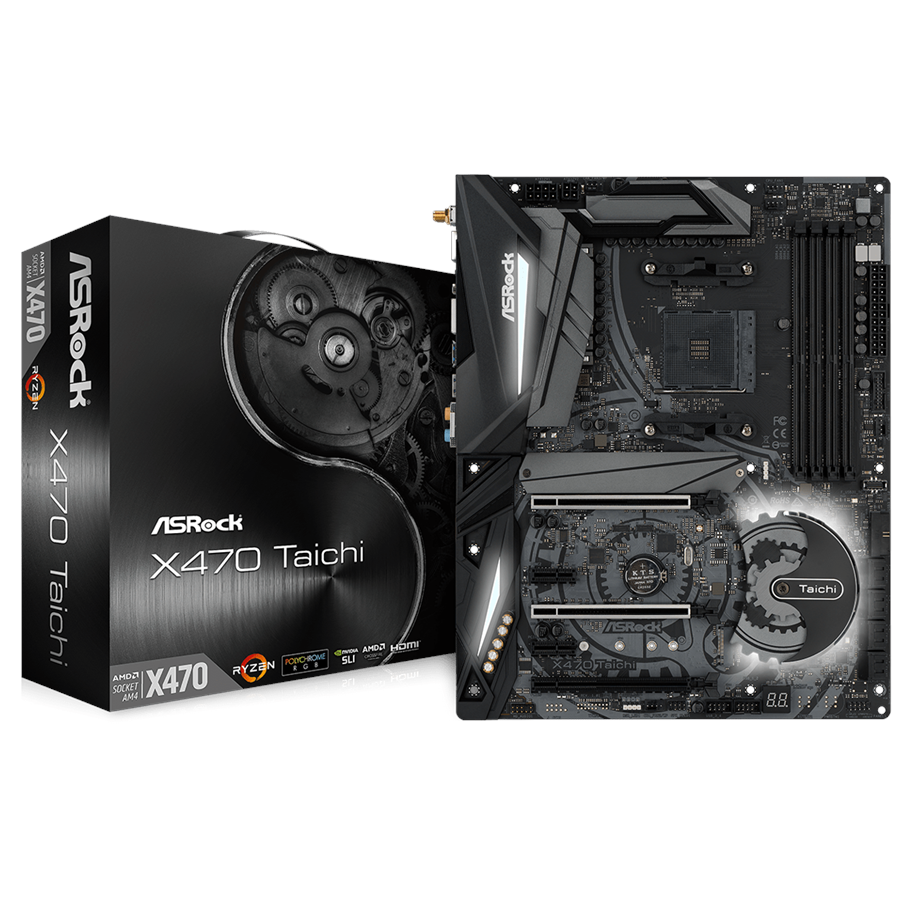

ASRock X470 TAICHI Bundkort - AMD X470 - AMD AM4 - DDR4 RAM - ATX
Bundkort, ATX, AMD AM4 Socket, AMD X470, 2 x PCI-Express x16, Dual DDR4-2666 - 4 x DIMM slots, 8 x SATA-600 / 2 x M.2 NVMe (2242 / 2260 / 2280), USB 3.1 Type A & C, HDMI (understøtter 4K), Intel I211-AT Gigabit LAN, 802.11ac WiFi & Bluetooth 4.2, AMD Radeon Graphics understøttelse (CPU påkrævet), Realtek ALC1220 HD Audio (8-kanaler), understøtter SLI / CrossFireX
Varen er udgået
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
Front USB 3.1 Gen2 Type-C
Front USB 3.1 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Hyper BCLK Engine II
An additional external base clock generator that supports PCIe frequency overclocking. It provides a wider range of frequencies and more precise clock waveforms, allowing any user to get most from their CPU investment with precise, stable overclocking.
Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
120dB SNR DAC
Gold Audio connector
TI® NE5532 Premium Headset Amplifier
Individual PCB Layers for R/L Audio Channel
Impedance Sensing on Front Out port
PCB Isolate Shielding
Pure Power-In
Nichicon Fine Gold Series Audio Caps
Gold Audio Jacks
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
USB 3.1 Gen2 doubles the data transfer rate
USB 3.1 Gen2 Type-C doubles the charge speed!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
RAM
-
Corsair Vengeance LPX DDR4-2400 - 16GB - CL16 - Dual Channel (2 pcs) - Intel XMP...
Bestillingsvare, leveringstiden kan ikke oplyses1.485,00 kr. -
Corsair Vengeance LPX DDR4-2400 - 32GB - CL16 - Dual Channel (2 pcs) - Intel XMP...
Bestillingsvare, leveringstiden kan ikke oplyses2.750,00 kr.
Producent
Varenummer
2653966
Model
90-MXB7J0-A0UAYZ
Ean
4717677335200
Til producentens hjemmeside
Produktbeskrivelse
ASRock X470 Taichi - bundkort - ATX - Socket AM4 - AMD X470
Produkttype
Bundkort - ATX
Chipsættype
AMD X470
Processor-socket
1 x Socket AM4
Kompatible processorer
Ryzen
Max RAM-størrelse
64 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC, ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 2 x SATA-600, 1 x M.2, 1 x Ultra M.2
USB / FireWire porte
1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 6 x USB 3.1 Gen 1 + (4 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
2 GB
Audio
HD Audio (8-kanaler)
LAN
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Generelt
Produkttype
Bundkort - ATX
Chipsættype
AMD X470
Processor-socket
Socket AM4
Max antal processorer
1
Kompatible processorer
Ryzen
Understøttet RAM
Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur
Grafik
Maks. allokeret RAM-størrelse
2 GB
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220
Overensstemmelsesstandarder
DTS Connect, High Definition Audio, Premium Blu-ray audiosupport, Purity Sound 4
LAN
Netværk controller
Intel I211-AT
Netværks interfaces
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
2 x PCIe 3.0 x16 (dual x8 mode; single kort: x16 mode)
1 x PCIe 2.0 x16 (x4-modus)
2 x PCIe 2.0 x1
1 x M.2 socket (Key E)
4 x DIMM 288-pins
2 x PCIe 3.0 x16 (dual x8 mode; single kort: x16 mode)
1 x PCIe 2.0 x16 (x4-modus)
2 x PCIe 2.0 x1
1 x M.2 socket (Key E)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
ASMedia ASM1061: SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x Ultra M.2
SATA-600 / PCIe -stikforbindelser: 1 x M.2
ASMedia ASM1061: SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x Ultra M.2
SATA-600 / PCIe -stikforbindelser: 1 x M.2
Interface
1 x HDMI
1 x LAN (Gigabit Ethernet)
1 x TOSLINK
1 x USB 3.1 Gen 2
1 x USB-C Gen2
6 x USB 3.1 Gen 1
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-tastatur/mus
1 x LAN (Gigabit Ethernet)
1 x TOSLINK
1 x USB 3.1 Gen 2
1 x USB-C Gen2
6 x USB 3.1 Gen 1
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-tastatur/mus
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.1 Gen 1 - intern stik
1 x audio - intern stik
4 x USB 3.1 Gen 1 - intern stik
1 x audio - intern stik
Strømkontakter
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
JumperFree, SMBIOS 2.3 understøttet, UEFI BIOS, ACPI 5,1 support
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber
Understøttelse af NVIDIA SLI-teknologi, ASRock Instant Flash, HDCP kompatibel, Digital PWM, NVIDIA Quad SLI Technology Support, 15µ Gold Contact, 16 Phase Power Design, ASRock XFast LAN, ASRock Dr. Debug, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, ESD Protection, Dual-Stack MOSFET (DSM), Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, Direct Drive Technology, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Nichicon Fine Gold Series Audio Capacitors, I/O Armor, ASRock Live Update, ASRock Ultra M.2, ASRock Hyper BCLK Engine II, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, ASRock RGB LED, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, 2oz Copper PCB
Ovenstående informationer/specifikationer kan løbende ændres. I tilfælde af trykfejl vedrørende pris eller udsolgte varer bestræber vi os på hurtigst muligt at opdatere siden. Hvis en pris er åbenlyst forkert, er Proshop ikke forpligtet til at levere det pågældende produkt til den forkerte pris. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som virker misvisende.
