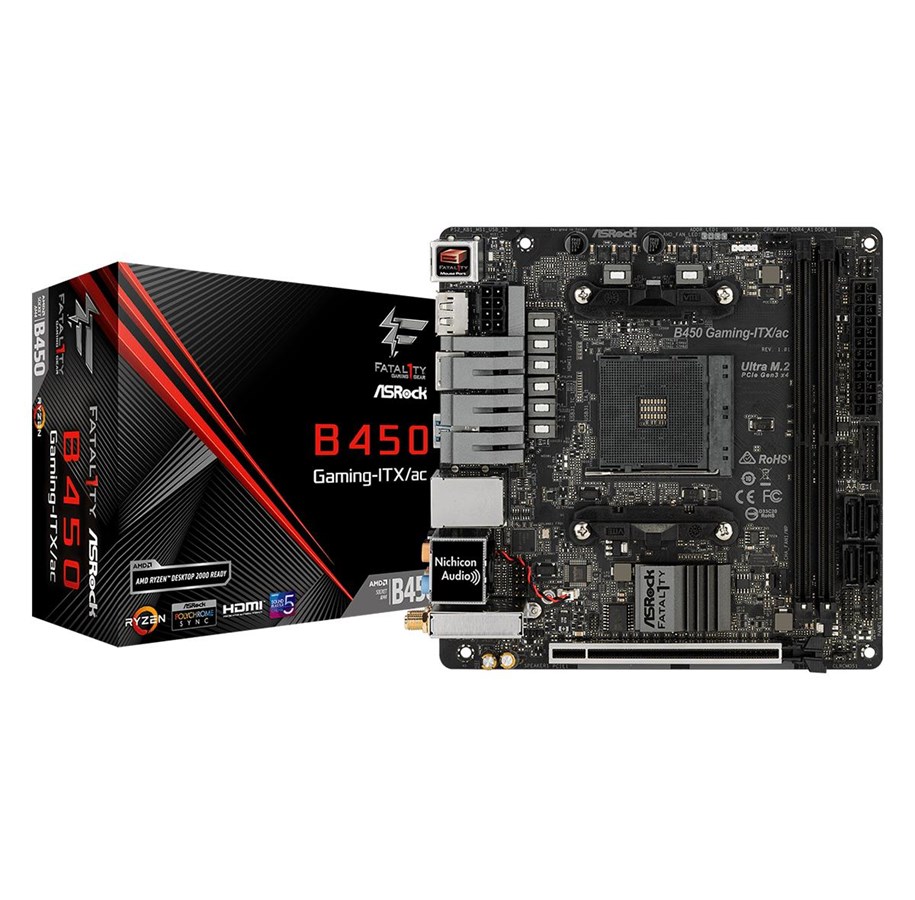

ASRock Fatal1ty B450 Gaming-ITX/ac Bundkort - AMD B450 - AMD AM4 socket - DDR4 RAM - Mini-ITX

Generelt
Produkttype	Bundkort - mini ITX
Chipsættype	AMD B450
Processor-socket	Socket AM4
Max antal processorer	1
Kompatible processorer	Ryzen

Understøttet RAM
Maks. størrelse	32 GB
Teknologi	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC, ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur

Grafik
Maks. allokeret RAM-størrelse	2 GB

Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC1220
Overensstemmelsesstandarder	High Definition Audio, Premium Blu-ray audiosupport, Sound Blaster Cinema 5

LAN
Netværks interfaces	Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac

Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 2 x DIMM 288-pins 1 x PCIe 3.0 x16 (x16 tilstand (med 1. og 2. generation Ryzen CPU); x8 tilstand (med Ryzen med Radeon Vega Graphics)) 1 x M.2 socket
Grænseflade (lagring)	-stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -stikforbindelser: 1 x Ultra M.2
Interface	1 x PS/2-tastatur/mus 1 x HDMI 1 x DisplayPort 1 x LAN (Gigabit Ethernet) 1 x TOSLINK 2 x USB 2.0 2 x USB 3.1 Gen 1 1 x audio linje-ud - mini-jack 1 x audio linje-ind - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x USB-C Gen2 1 x USB 3.1 Gen 2
Interne interfaces	2 x USB 2.0 - intern stik 2 x USB 3.1 Gen 1 - intern stik 1 x audio - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	Flersproget BIOS, JumperFree, SMBIOS 2.3 understøttet, UEFI BIOS, ACPI 5,1 support
Manuelle indstillinger	Kerne-spænding for processor, hukommelsesspænding
Hardwareovervågning	CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, takometer til blæser i strømforsyning
Sov/ Vågn	Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber	8 Phase Power Design, ASRock Instant Flash, HDCP kompatibel, 15µ Gold Contact, Digi Power Design, Fatal1ty Mouse Port, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Nichicon Fine Gold Series Audio Capacitors, ASRock Live Update, ASRock Ultra M.2, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium Power Choke, Hi-Density Power Connectors, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, 2oz Copper PCB, Dual-N MOSFET, AMD StoreMI technology

Diverse
Udstyr inkluderet	1 x M.2 skrue, I/O-bagdække, 2 x ASRock WiFi 2.4/5GHz Antennas
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	Drivers & Utilities, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock F-Stream, ASRock Polychrome RGB
Overensstemmelsesstandarder	FCC, EuP Ready, ErP Ready
Bredde	17 cm
Dybde	17 cm

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.The advanced PCI-E steel slots are packed with a solid cover that prevents any signal interference with graphics cards. It also ensures the heavy graphics cards to be installed in the PCI-E slots safely.Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock's full spike protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
